DPC-080-P-N : Deltrol Motion Control Check Valve, Pilot-To-Open, C-8-3 Cavity, 3000psi, 5GPM, 25-100psi Cracking Pressure

Save $1.84
Deltrol Fluid ProductsSKU: 10225-35
1-3 Days
Price:
$28.99 $30.83

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Check
Style Poppet
Flow Rating 5.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Cracking Pressure 25-100 psi
Series DPC
Check Valve Type Pilot-to-Open
Cartridge Cavity C-8-3
Country of Manufacture United States/Vietnam

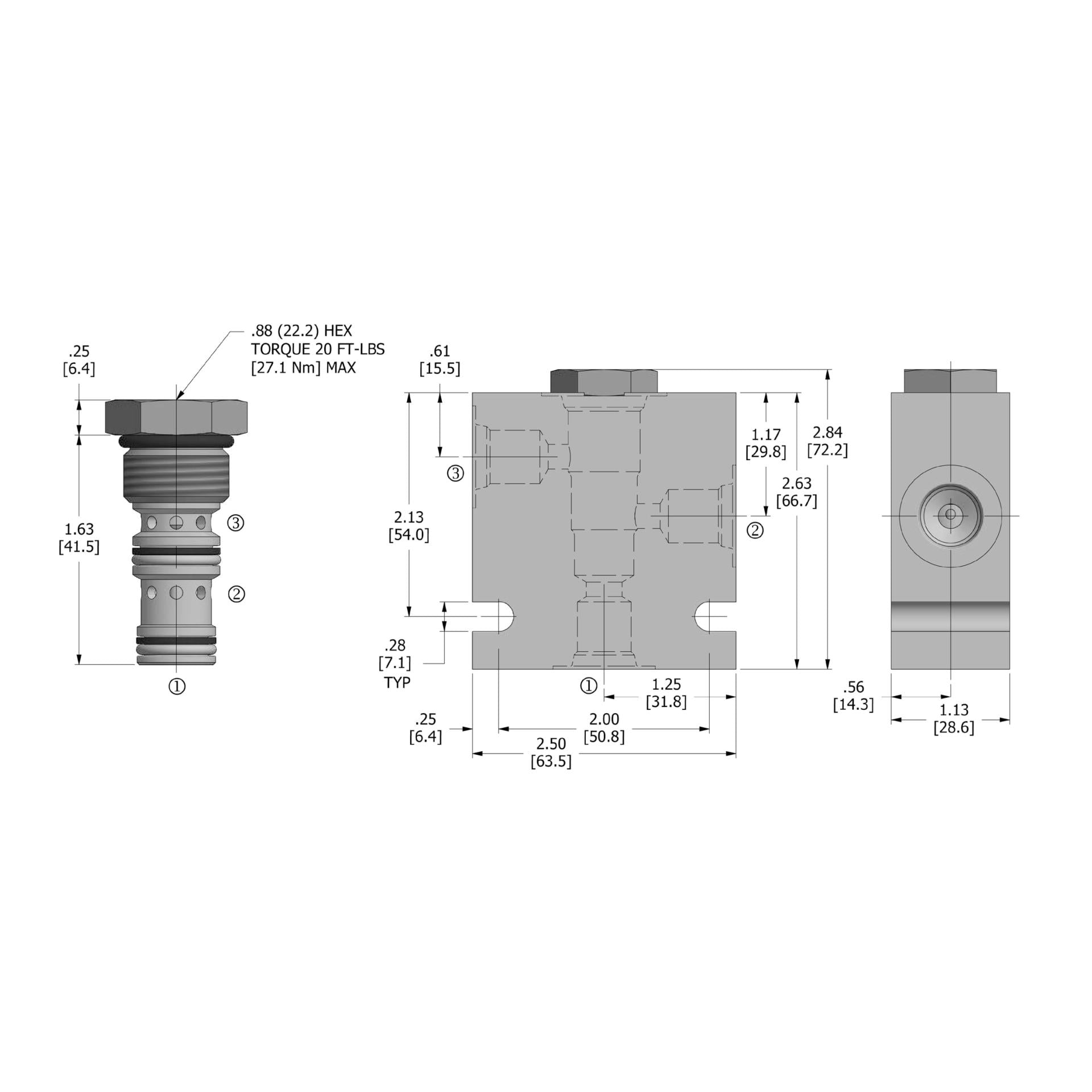

Height 2
Length 2
Width 2
Weight 2

Description

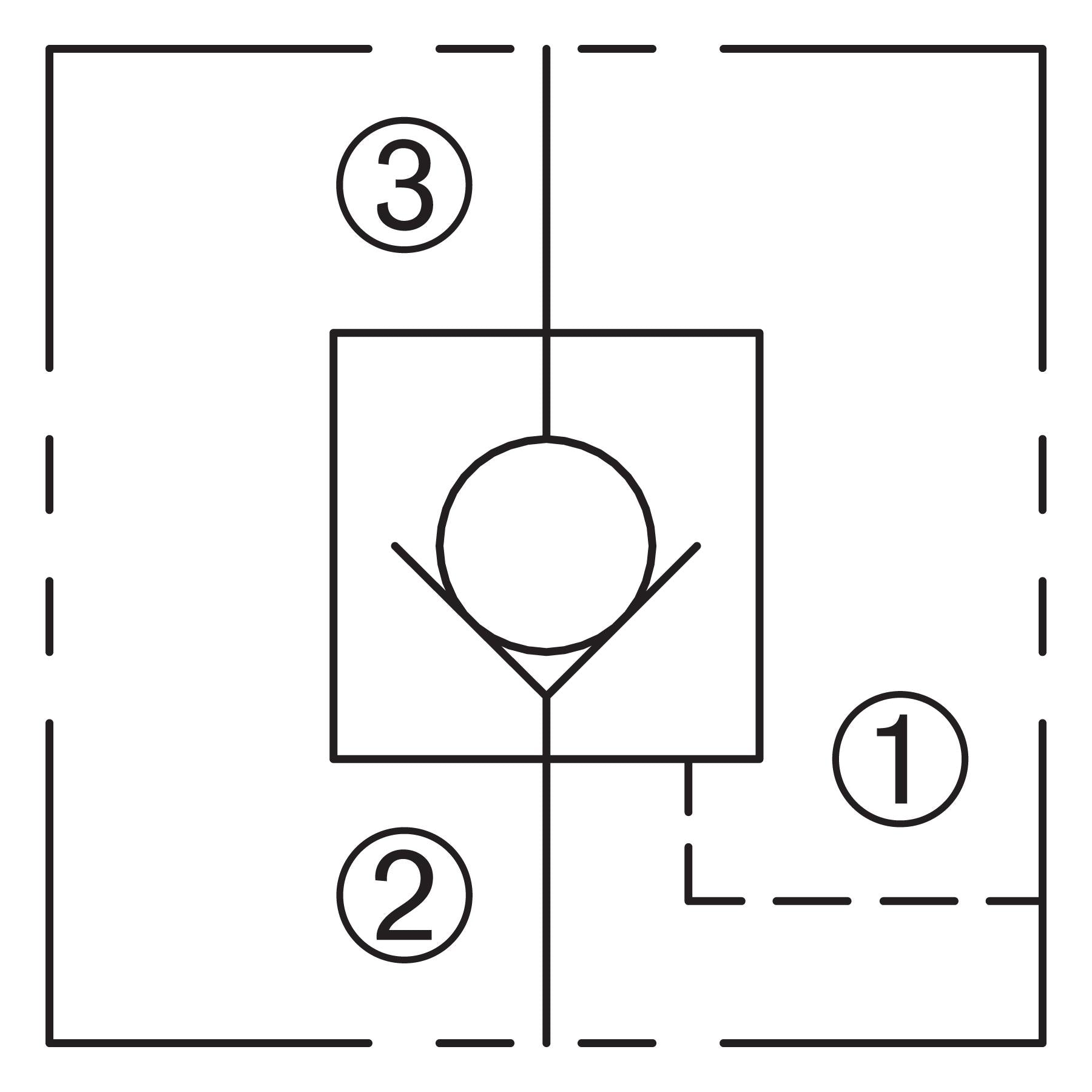

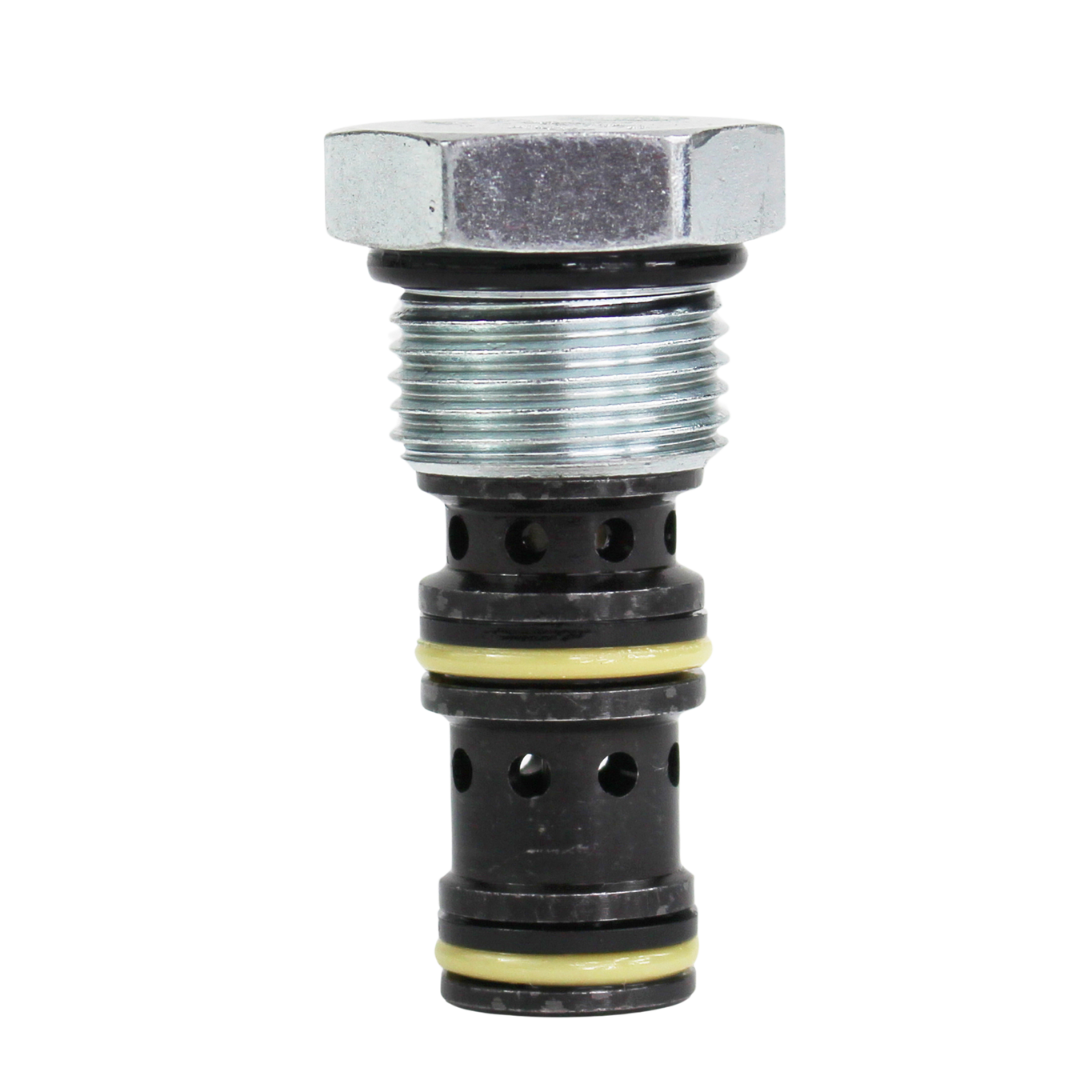

The Deltrol Fluid Products DPC-080-P Motion Control Pilot-to-Open Check Valve is designed to allow fluid to flow freely in one direction while blocking it in the reverse direction, with an option to reverse the flow by applying pilot pressure. This valve uses a poppet mechanism, which remains closed under normal conditions but opens when a specific pilot pressure at port 1 is reached, allowing flow between ports 3 and 2. Featuring a hardened poppet and seat for durability and an industry-common cavity for easy integration, this valve is ideal for load-holding and blocking applications in hydraulic systems, operating efficiently up to 3000 psi with minimal leakage.
