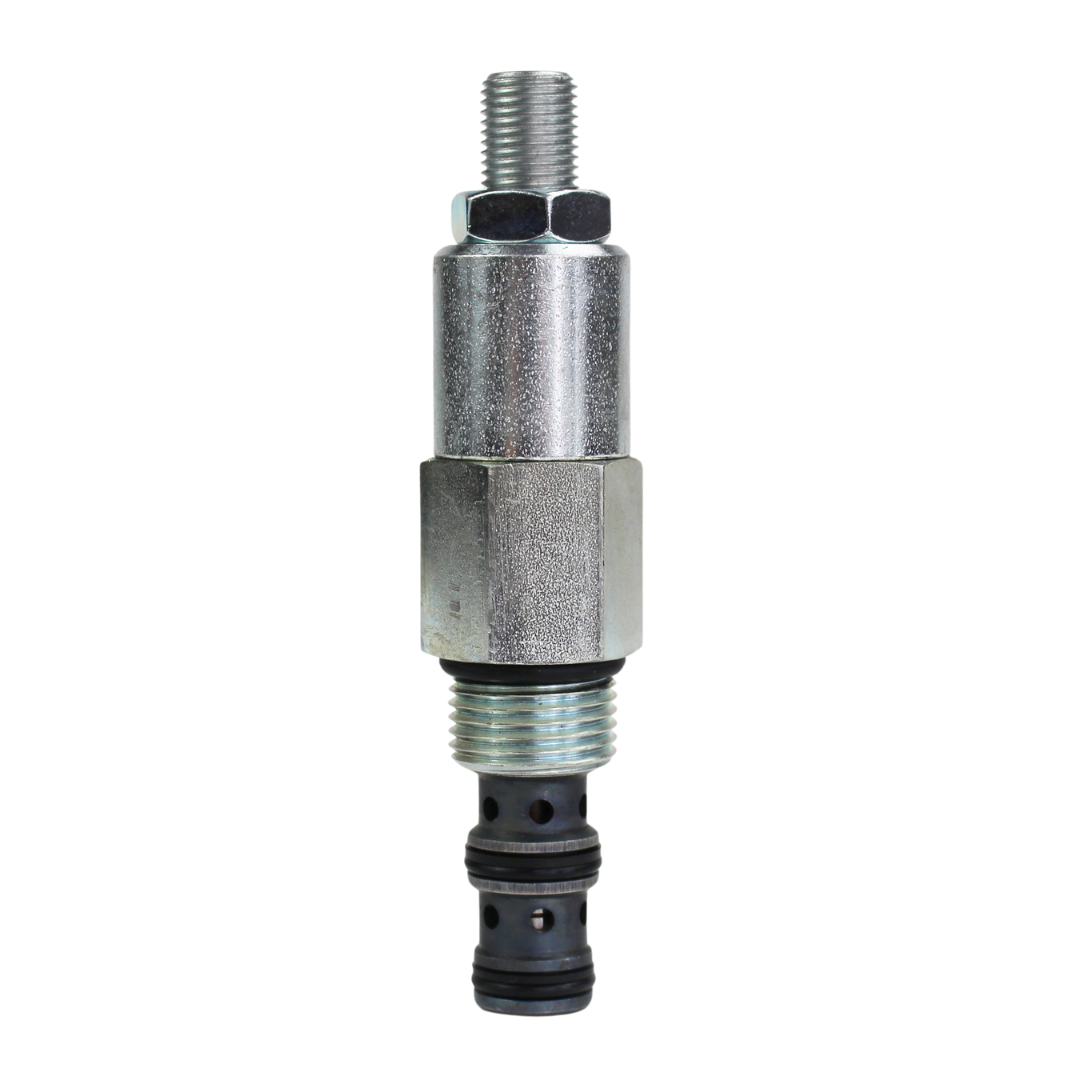

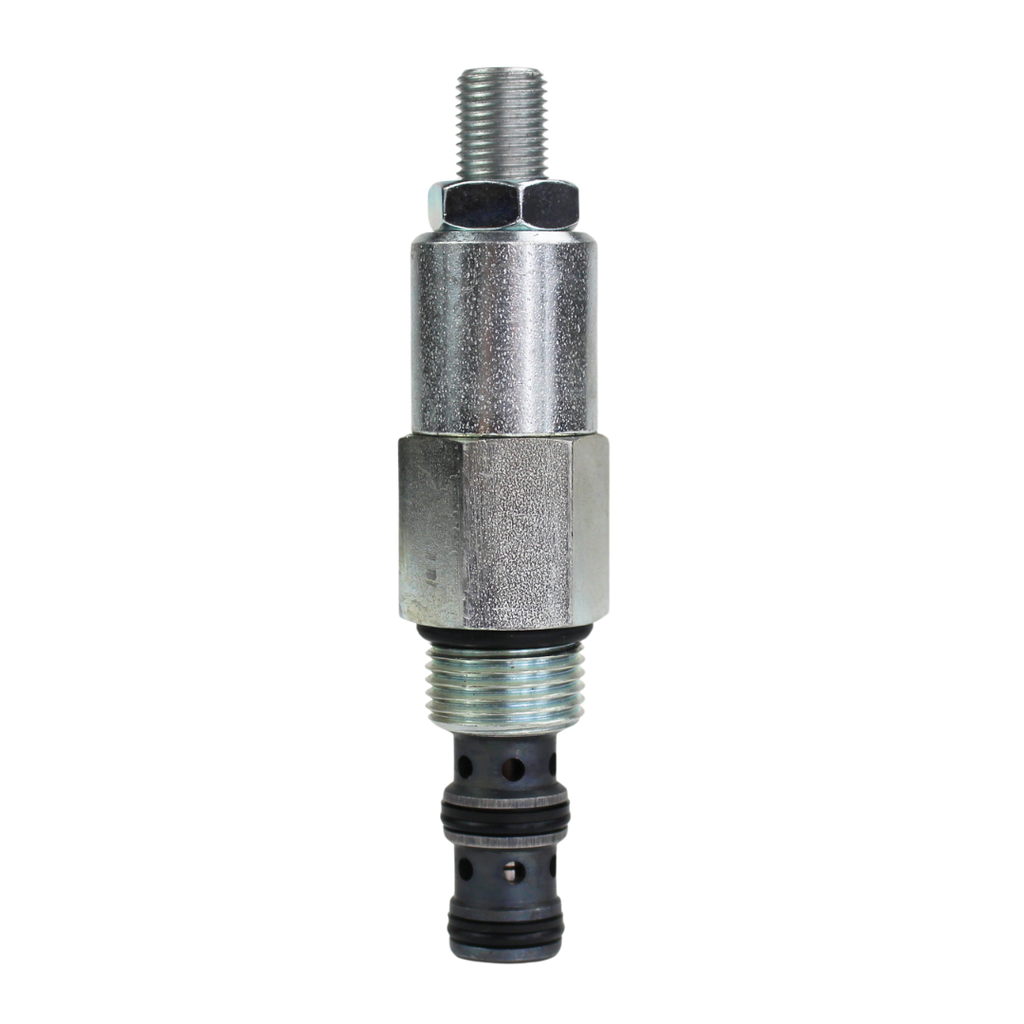

DPS-100-N-S : Deltrol Sequence, Direct-Acting, Externally Drained, C-10-3, Screw Adjustment, 3000psi, 6GPM, 50-2400psi Spring Range
DPS-100-N-S : Deltrol Sequence, Direct-Acting, Externally Drained, C-10-3, Screw Adjustment, 3000psi, 6GPM, 50-2400psi Spring Range
DPS-100-N-S : Deltrol Sequence, Direct-Acting, Externally Drained, C-10-3, Screw Adjustment, 3000psi, 6GPM, 50-2400psi Spring Range
DPS-100-N-S : Deltrol Sequence, Direct-Acting, Externally Drained, C-10-3, Screw Adjustment, 3000psi, 6GPM, 50-2400psi Spring Range
DPS-100-N-S : Deltrol Sequence, Direct-Acting, Externally Drained, C-10-3, Screw Adjustment, 3000psi, 6GPM, 50-2400psi Spring Range
Roll over image to zoom in Click on image to zoom
DPS-100-N-S : Deltrol Sequence, Direct-Acting, Externally Drained, C-10-3, Screw Adjustment, 3000psi, 6GPM, 50-2400psi Spring RangeDPS-100-N-S : Deltrol Sequence, Direct-Acting, Externally Drained, C-10-3, Screw Adjustment, 3000psi, 6GPM, 50-2400psi Spring RangeDPS-100-N-S : Deltrol Sequence, Direct-Acting, Externally Drained, C-10-3, Screw Adjustment, 3000psi, 6GPM, 50-2400psi Spring RangeDPS-100-N-S : Deltrol Sequence, Direct-Acting, Externally Drained, C-10-3, Screw Adjustment, 3000psi, 6GPM, 50-2400psi Spring RangeDPS-100-N-S : Deltrol Sequence, Direct-Acting, Externally Drained, C-10-3, Screw Adjustment, 3000psi, 6GPM, 50-2400psi Spring Range

DPS-100-N-S : Deltrol Sequence, Direct-Acting, Externally Drained, C-10-3, Screw Adjustment, 3000psi, 6GPM, 50-2400psi Spring Range

Save $3.78
Deltrol Fluid ProductsSKU: 10129-29
1-3 Days
Price:
$58.99 $62.77

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Operation Sequence, Direct-Acting, Externally-Drained
Valve Type Sequence
Adjustment Type Screw Adjustment
Style Spool
Flow Rating 6.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Outlet Pressure Range 50-2400
Pressure Range 50-2400
Series DPS
Cartridge Cavity C-10-3
Country of Manufacture United States/Vietnam

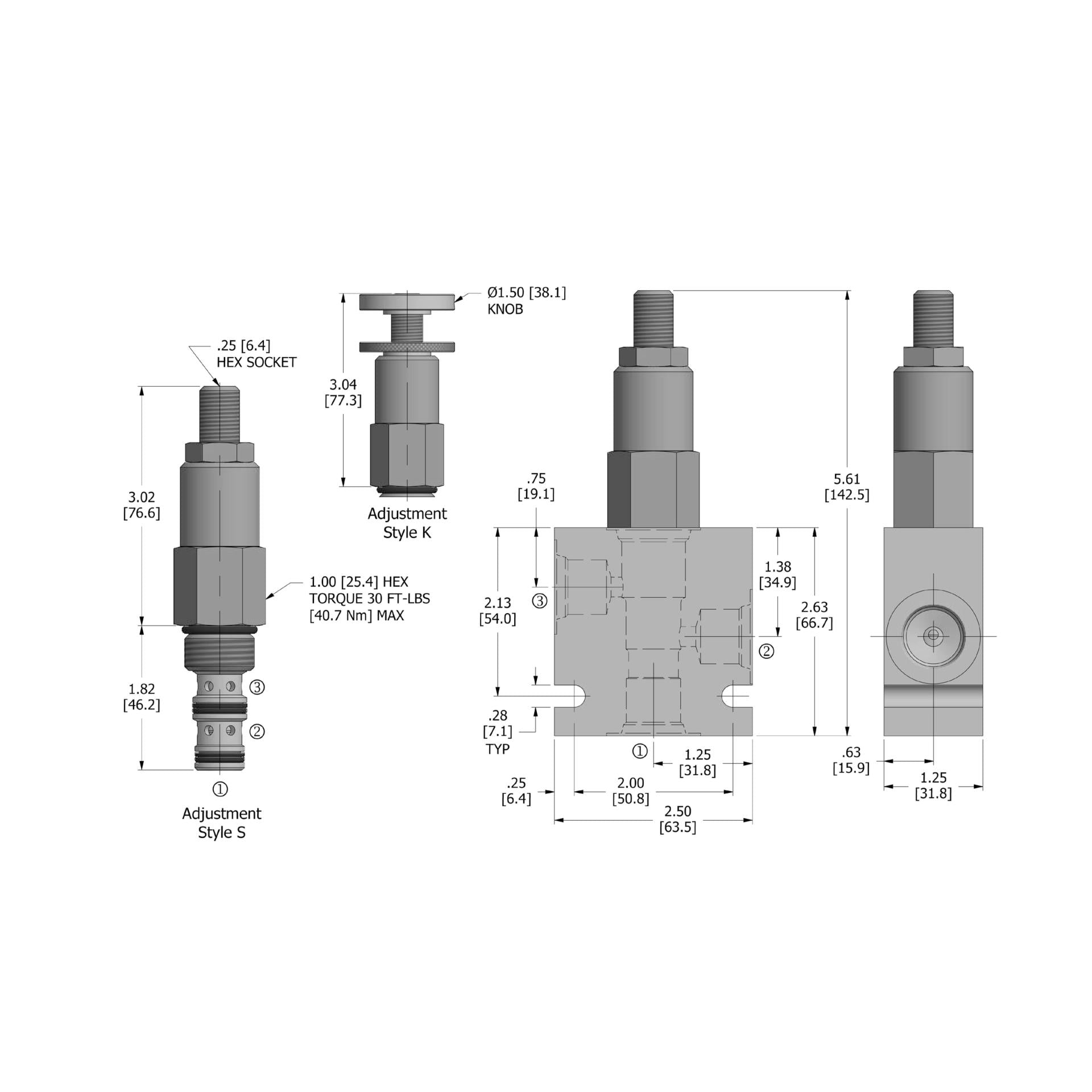

Height 1.5
Length 4.84
Width 1.5
Weight 2

Description

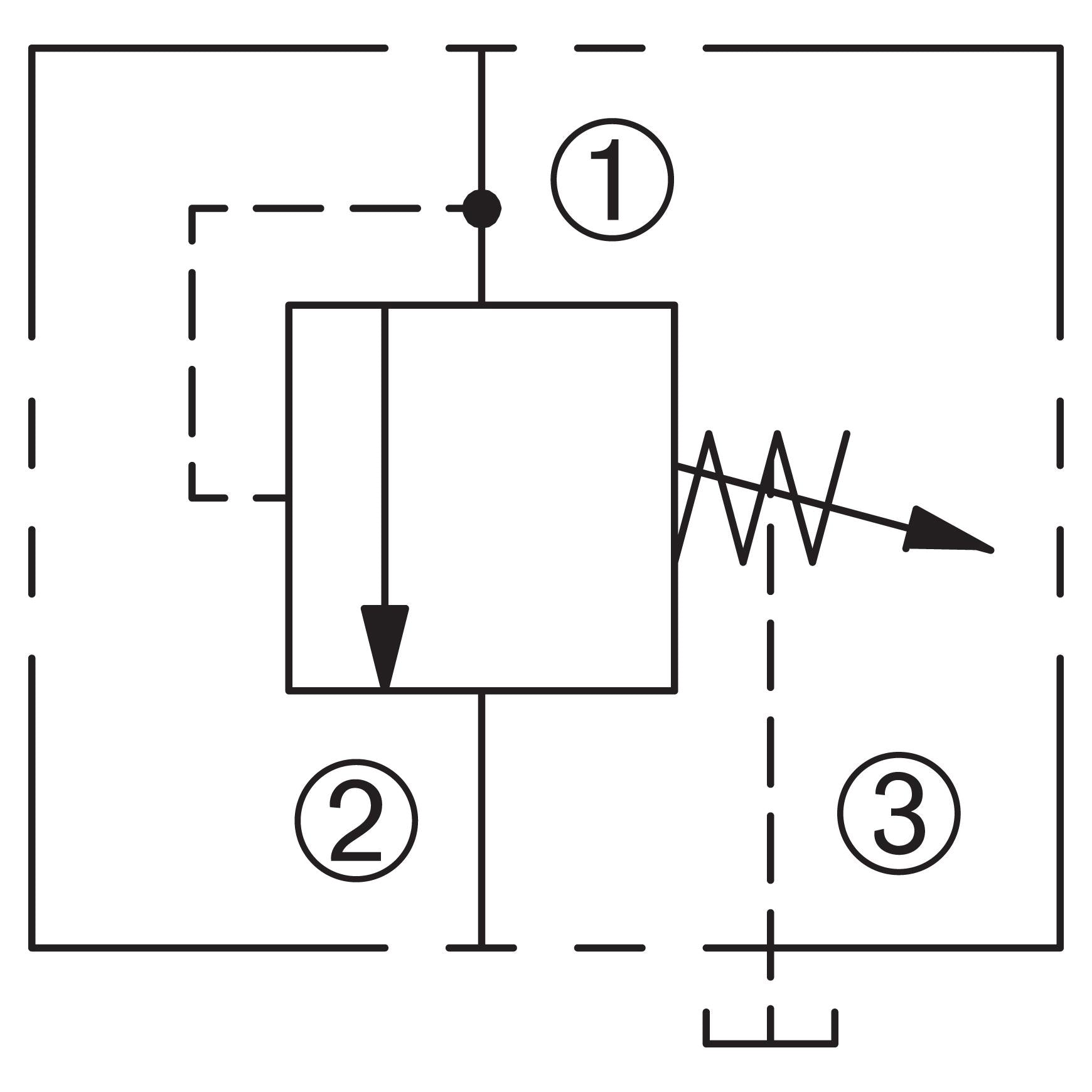

The Deltrol Fluid Products DPS-100 Sequence Valve is an adjustable, direct-acting spool cartridge valve designed to manage the flow of hydraulic oil based on preset pressure levels. In its default state, the DPS-100 blocks flow between ports 1 and 2 while the spring chamber is externally drained. Once the pressure at port 1 reaches the preset value, the valve's spool shifts to allow oil to flow from port 1 to port 2, directing oil to the intended circuit. This valve offers a range of pressure settings, features a durable spool and sleeve, and provides options for secure, tamper-resistant adjustments. It operates up to 3000 PSI with a maximum flow rate of 6 GPM and is constructed from anodized aluminum for enhanced durability.
