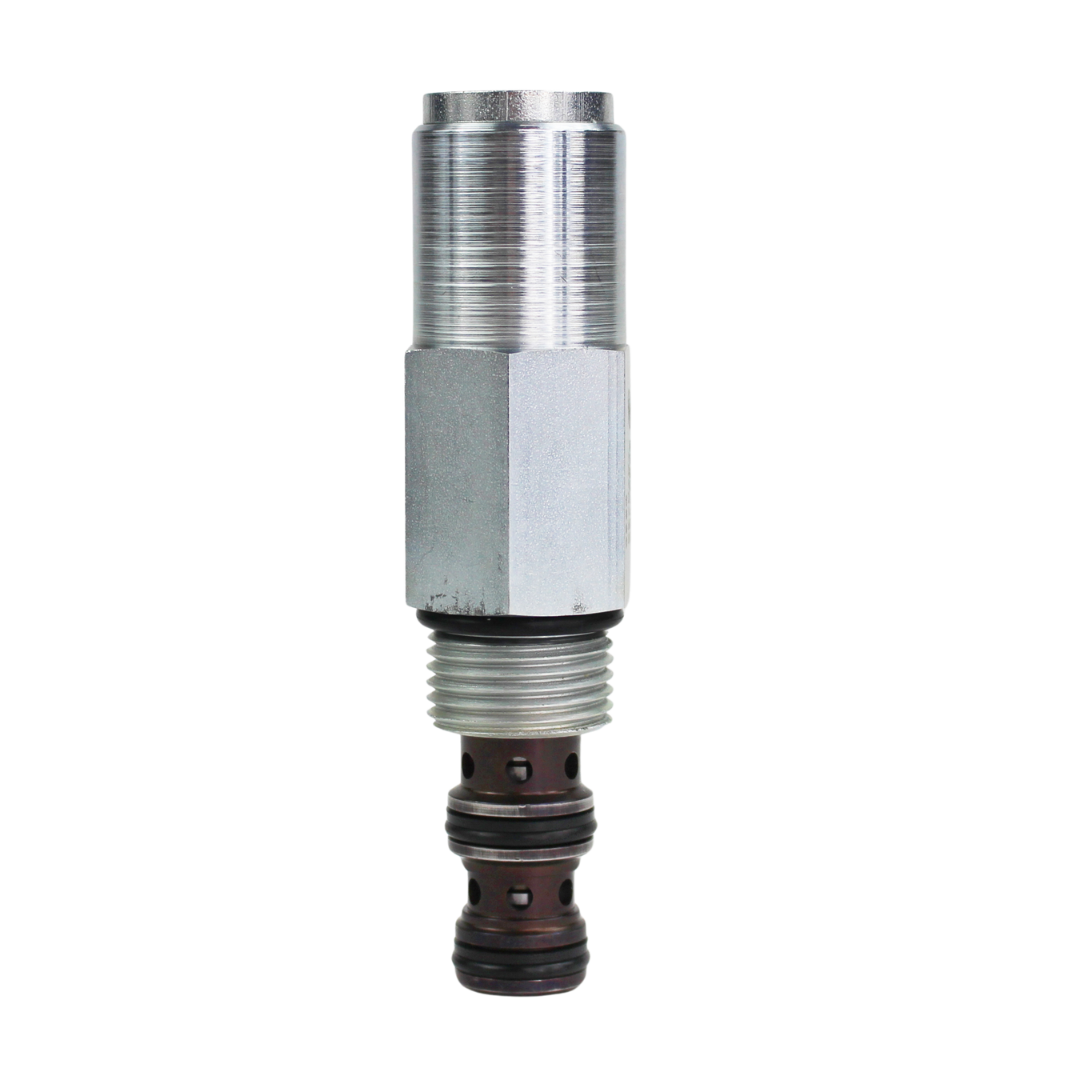

DPSK-100-N-H : Deltrol Sequence, Adjustable, Pilot Operated, Kick-Down, C-10-3, Hidden Adjustment, 3000psi, 5GPM, 300-3000psi Spring Range
DPSK-100-N-H : Deltrol Sequence, Adjustable, Pilot Operated, Kick-Down, C-10-3, Hidden Adjustment, 3000psi, 5GPM, 300-3000psi Spring Range
DPSK-100-N-H : Deltrol Sequence, Adjustable, Pilot Operated, Kick-Down, C-10-3, Hidden Adjustment, 3000psi, 5GPM, 300-3000psi Spring Range
DPSK-100-N-H : Deltrol Sequence, Adjustable, Pilot Operated, Kick-Down, C-10-3, Hidden Adjustment, 3000psi, 5GPM, 300-3000psi Spring Range
DPSK-100-N-H : Deltrol Sequence, Adjustable, Pilot Operated, Kick-Down, C-10-3, Hidden Adjustment, 3000psi, 5GPM, 300-3000psi Spring Range
Roll over image to zoom in Click on image to zoom
DPSK-100-N-H : Deltrol Sequence, Adjustable, Pilot Operated, Kick-Down, C-10-3, Hidden Adjustment, 3000psi, 5GPM, 300-3000psi Spring RangeDPSK-100-N-H : Deltrol Sequence, Adjustable, Pilot Operated, Kick-Down, C-10-3, Hidden Adjustment, 3000psi, 5GPM, 300-3000psi Spring RangeDPSK-100-N-H : Deltrol Sequence, Adjustable, Pilot Operated, Kick-Down, C-10-3, Hidden Adjustment, 3000psi, 5GPM, 300-3000psi Spring RangeDPSK-100-N-H : Deltrol Sequence, Adjustable, Pilot Operated, Kick-Down, C-10-3, Hidden Adjustment, 3000psi, 5GPM, 300-3000psi Spring RangeDPSK-100-N-H : Deltrol Sequence, Adjustable, Pilot Operated, Kick-Down, C-10-3, Hidden Adjustment, 3000psi, 5GPM, 300-3000psi Spring Range

DPSK-100-N-H : Deltrol Sequence, Adjustable, Pilot Operated, Kick-Down, C-10-3, Hidden Adjustment, 3000psi, 5GPM, 300-3000psi Spring Range

Save $5.88
Deltrol Fluid ProductsSKU: 10154-79
1-3 Days
Price:
$81.99 $87.87

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Operation Sequence, Adjustable, Pilot-Operated, Kick-Down
Valve Type Sequence
Adjustment Type Hidden Adjustment
Style Spool
Flow Rating 5.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Outlet Pressure Range 300-3000
Pressure Range 300-3000
Series DPSK
Cartridge Cavity C-10-3
Country of Manufacture United States/Vietnam

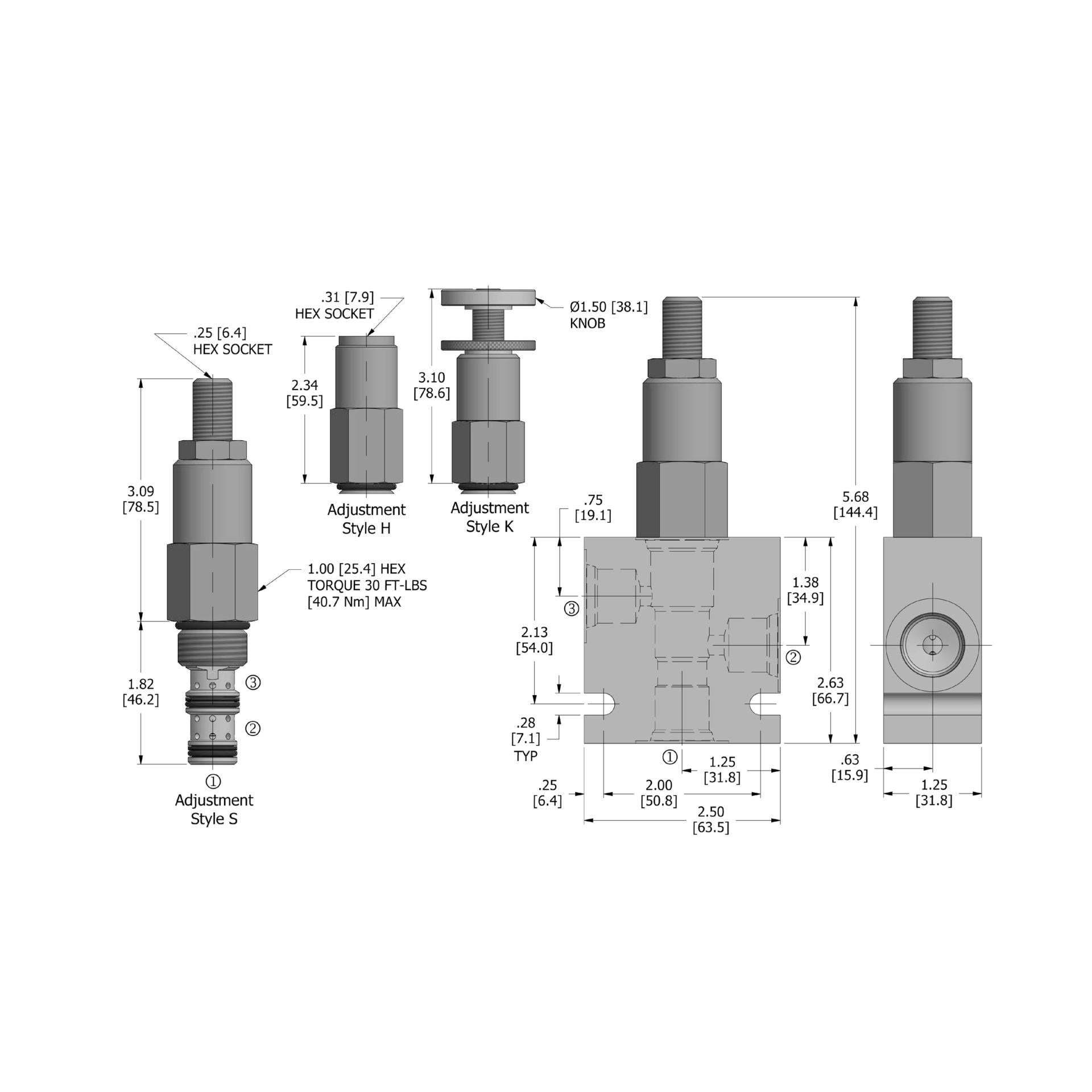

Height 1.5
Length 2.34
Width 1.5
Weight 2

Description

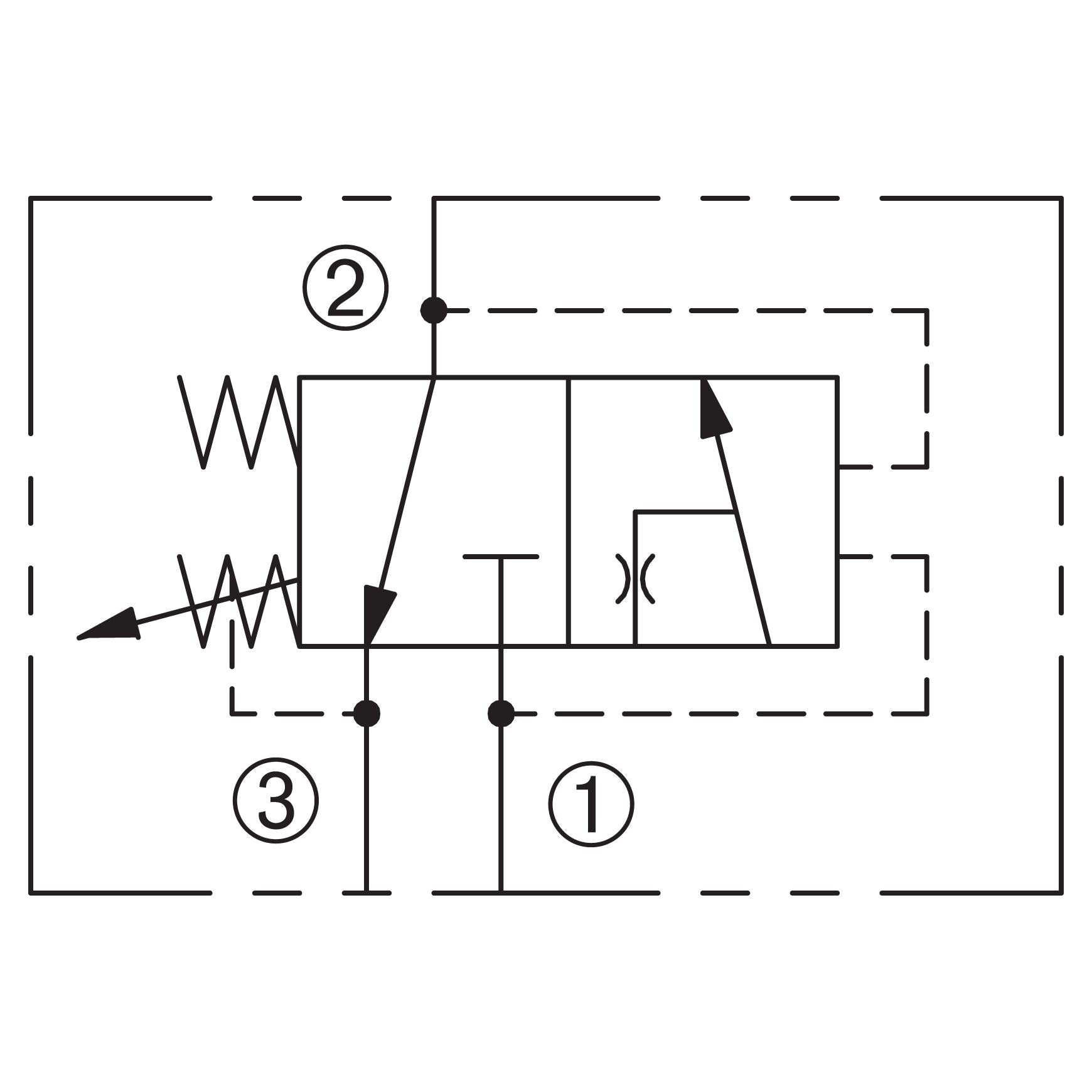

The Deltrol Fluid Products DPSK-100 is an adjustable, pilot-operated spool cartridge valve designed to control hydraulic flow based on preset pressure levels. In its normal state, the DPSK-100 blocks flow from port 1 while allowing flow between ports 2 and 3. Once the pressure at port 1 reaches the preset level, a pilot section opens, creating a pressure differential that shifts the spool to enable flow from port 1 to port 2. The valve remains in this position until the pressure at port 2 drops below a set level, at which point the spool shifts back to its initial position. This valve features a lower kick-down pressure compared to the DPSK2-100, offers a range of pressure settings, and is built with a durable, precision-engineered spool and sleeve. It operates up to 3000 PSI with a maximum flow rate of 5 GPM and is made from anodized aluminum for long-lasting performance.
