DTV-080-N : Deltrol Directional, 2-Way, 2-Position, Normally Closed, Toggle Operated, C-8-2 Cavity, Overcenter Detent Open, 3000psi, 6GPMDTV-080-N : Deltrol Directional, 2-Way, 2-Position, Normally Closed, Toggle Operated, C-8-2 Cavity, Overcenter Detent Open, 3000psi, 6GPMDTV-080-N : Deltrol Directional, 2-Way, 2-Position, Normally Closed, Toggle Operated, C-8-2 Cavity, Overcenter Detent Open, 3000psi, 6GPMDTV-080-N : Deltrol Directional, 2-Way, 2-Position, Normally Closed, Toggle Operated, C-8-2 Cavity, Overcenter Detent Open, 3000psi, 6GPMDTV-080-N : Deltrol Directional, 2-Way, 2-Position, Normally Closed, Toggle Operated, C-8-2 Cavity, Overcenter Detent Open, 3000psi, 6GPM

DTV-080-N : Deltrol Directional, 2-Way, 2-Position, Normally Closed, Toggle Operated, C-8-2 Cavity, Overcenter Detent Open, 3000psi, 6GPM

Save $1.12
Deltrol Fluid ProductsSKU: 10133-81
1-3 Days
Price:
$26.99 $28.11

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Manual-Operated

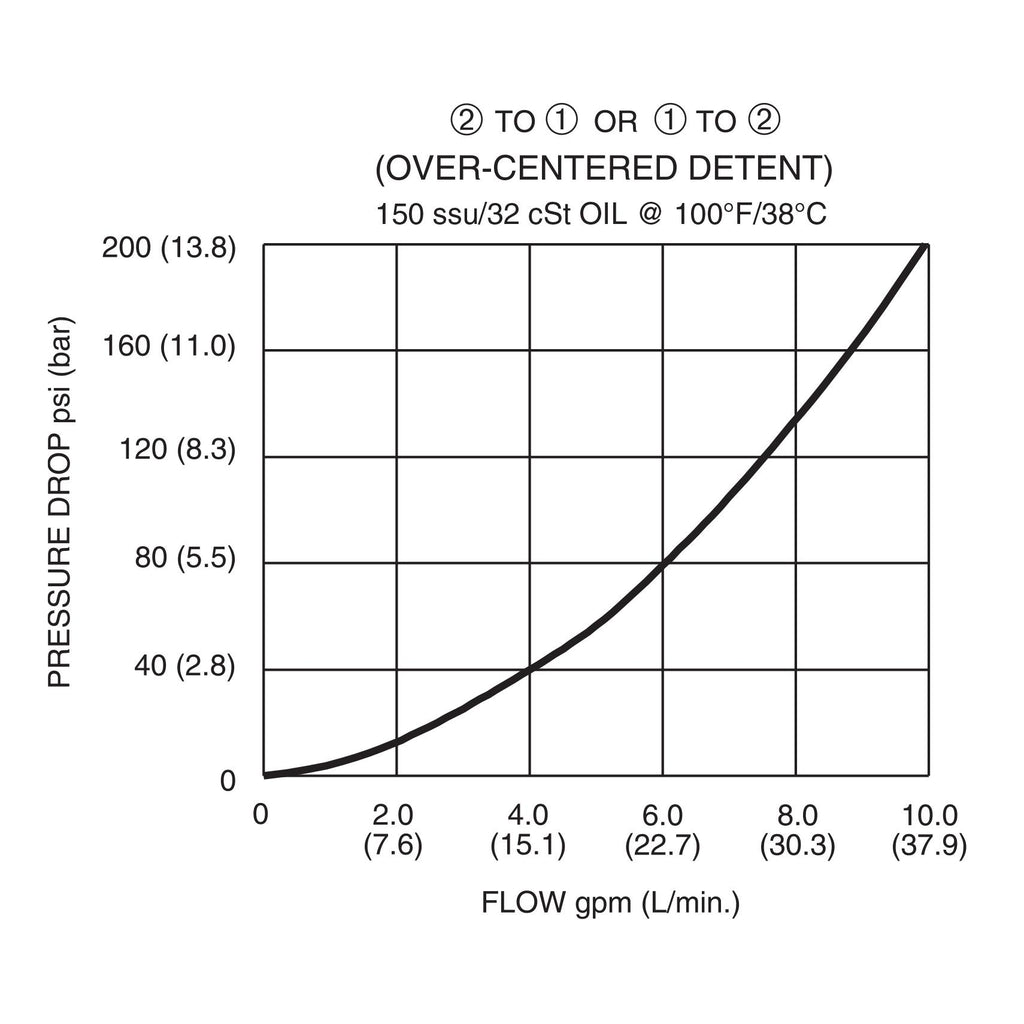

Flow Rating 6.0
Pressure Rating 3000
Operating Temp Range -30 to +250F

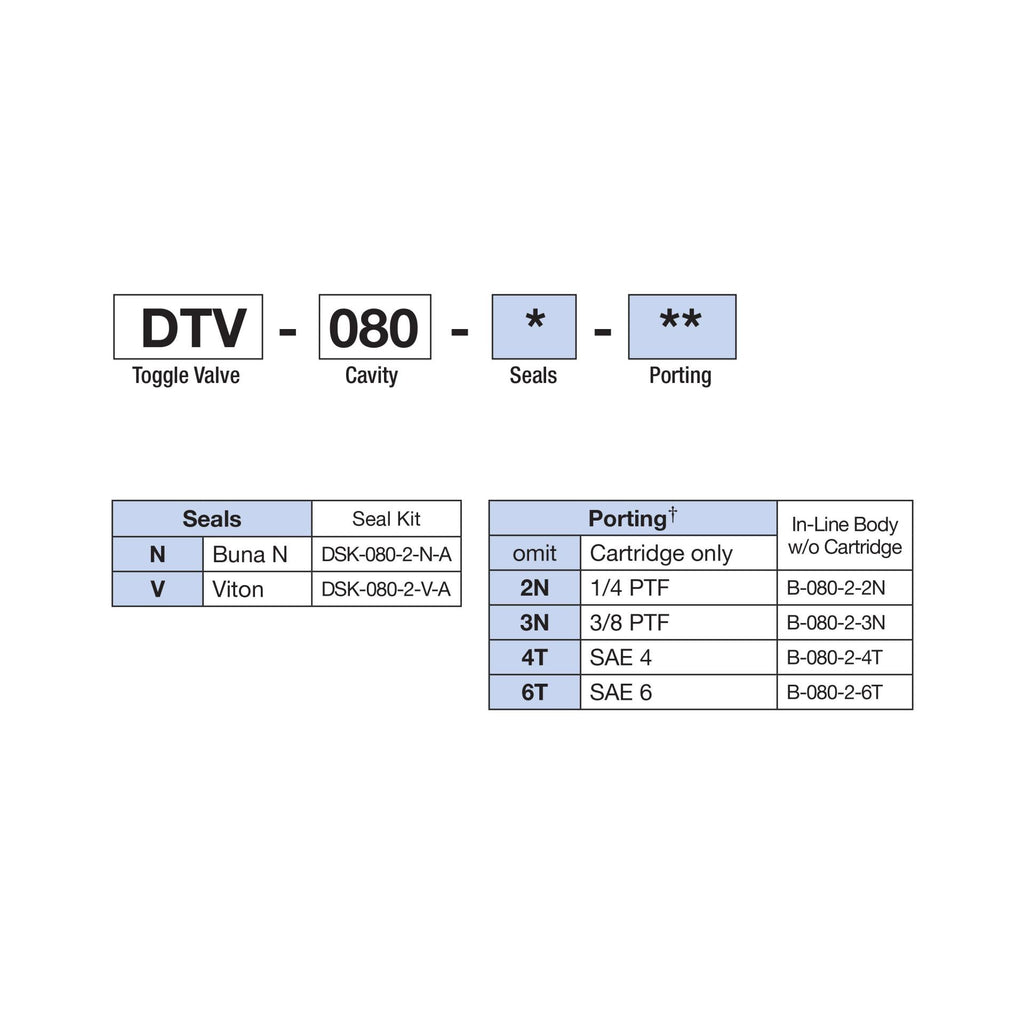

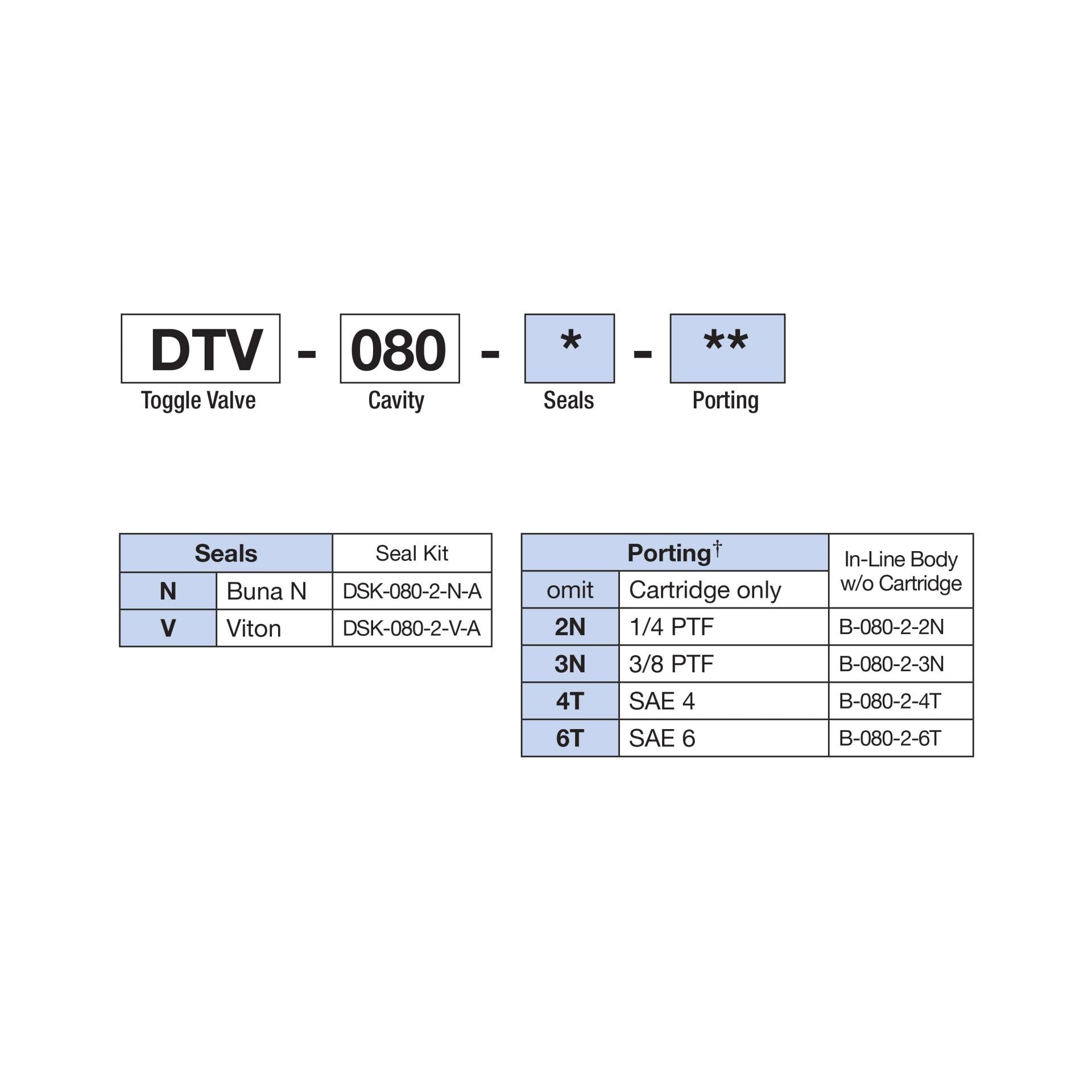

Seal Material NBR
Series DTV

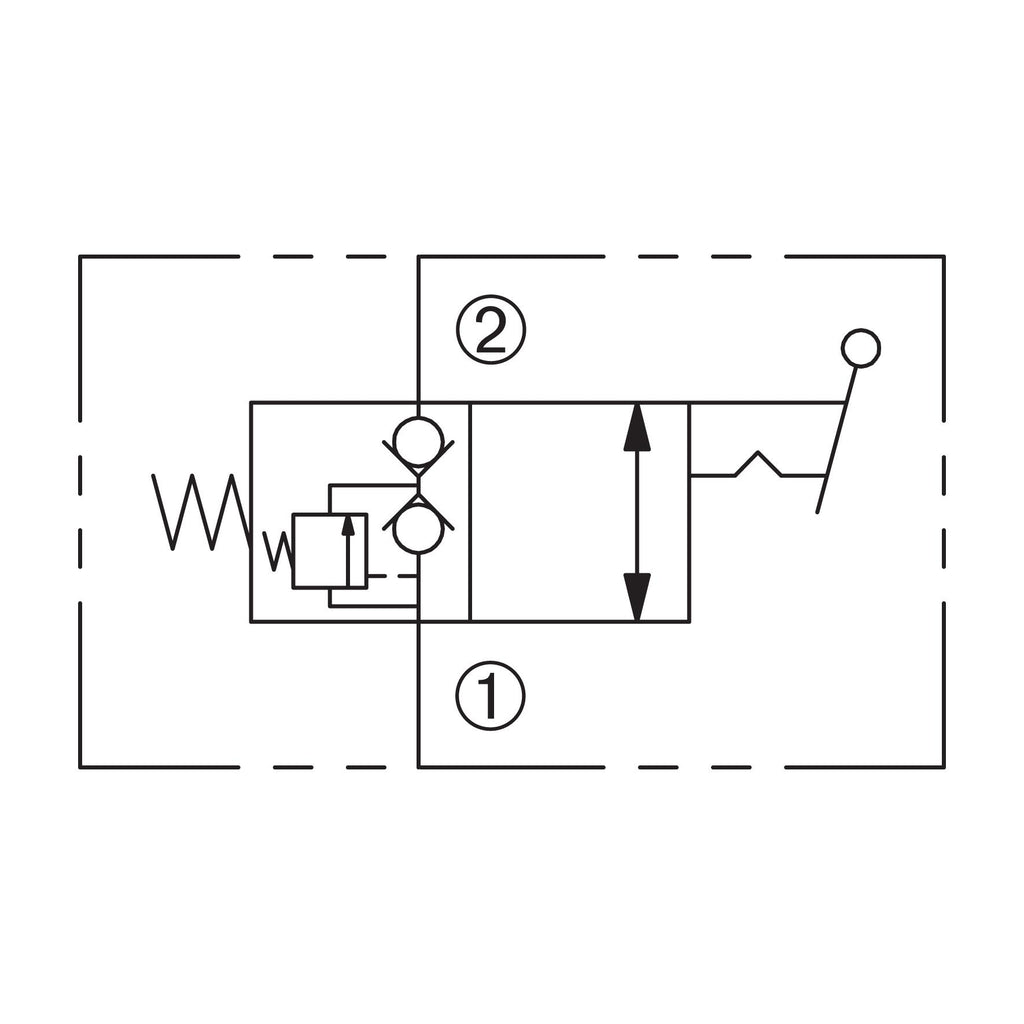

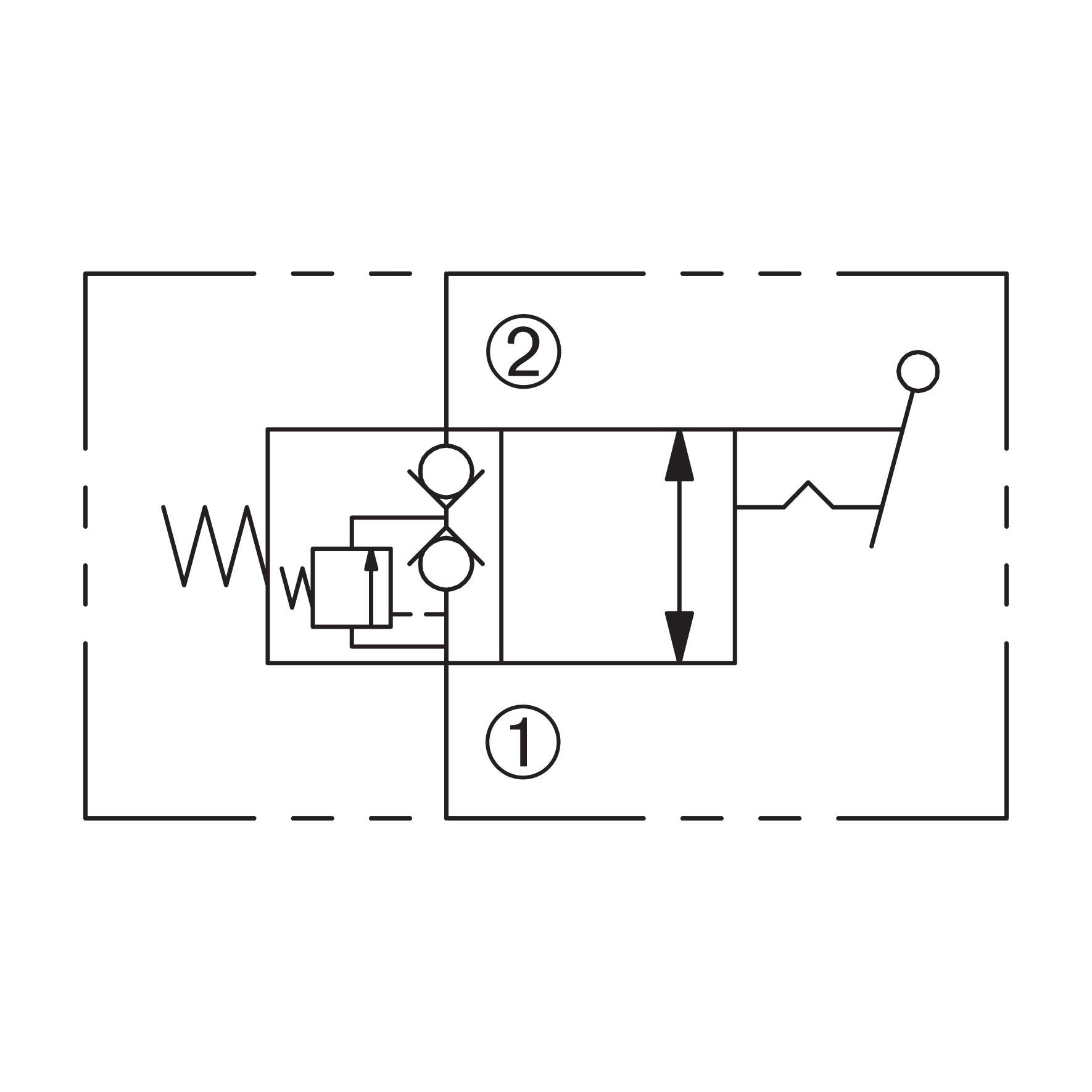

Spool Configuration Blocked flow from 1 to 2 , Detented
Cartridge Cavity C-8-2
Coil Selection No Coil, Manual Lever
Country of Manufacture United States/Vietnam

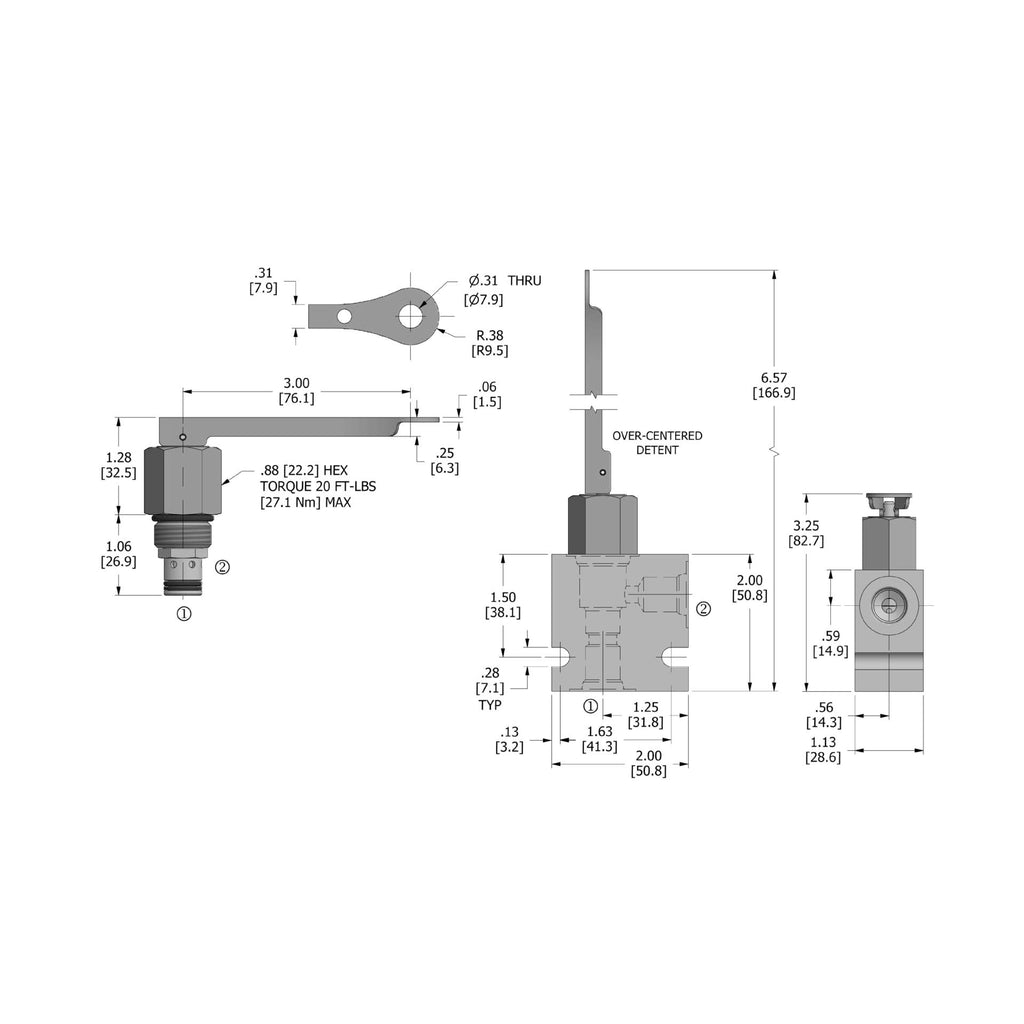

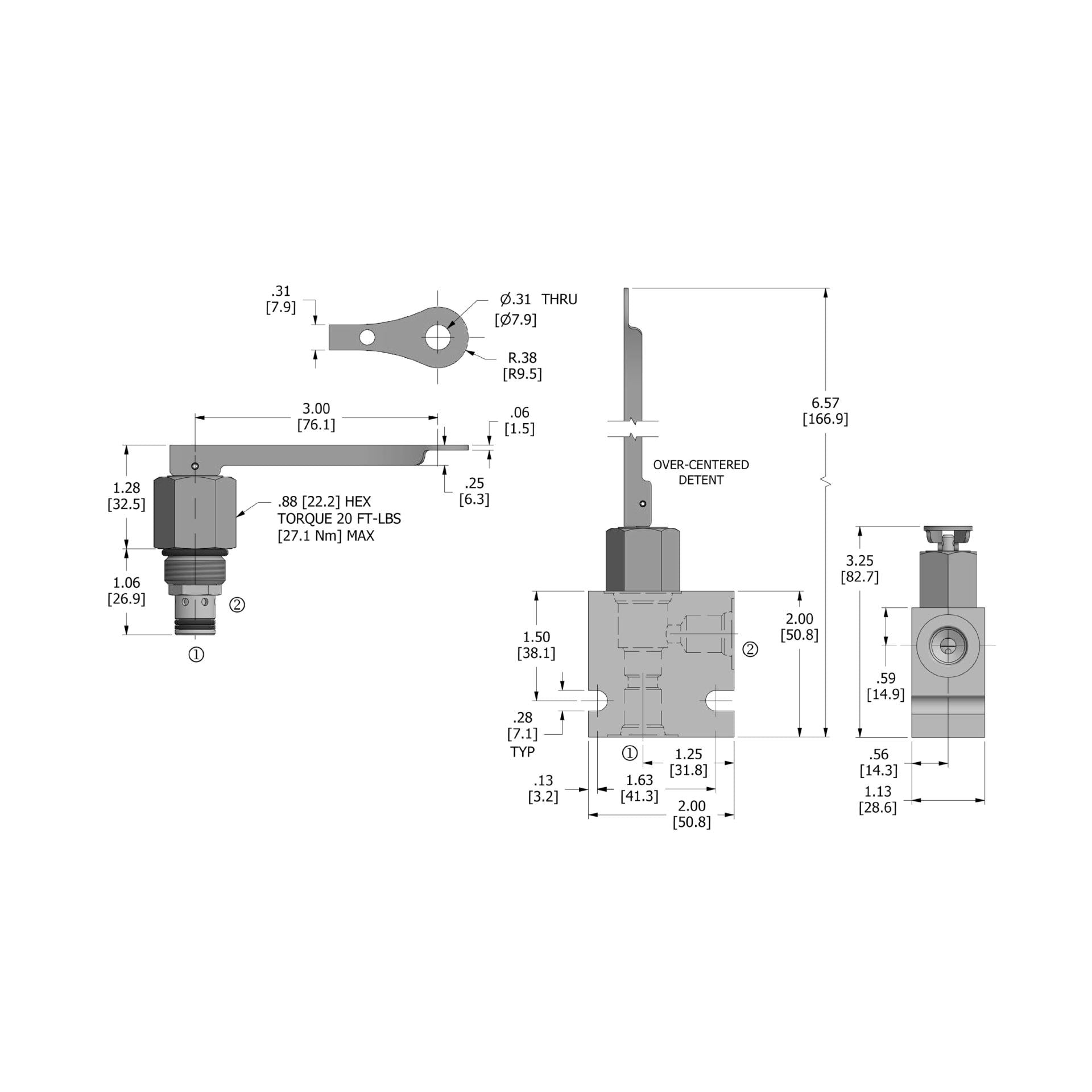

Height 1
Length 2.34
Width 4
Weight 2

Description

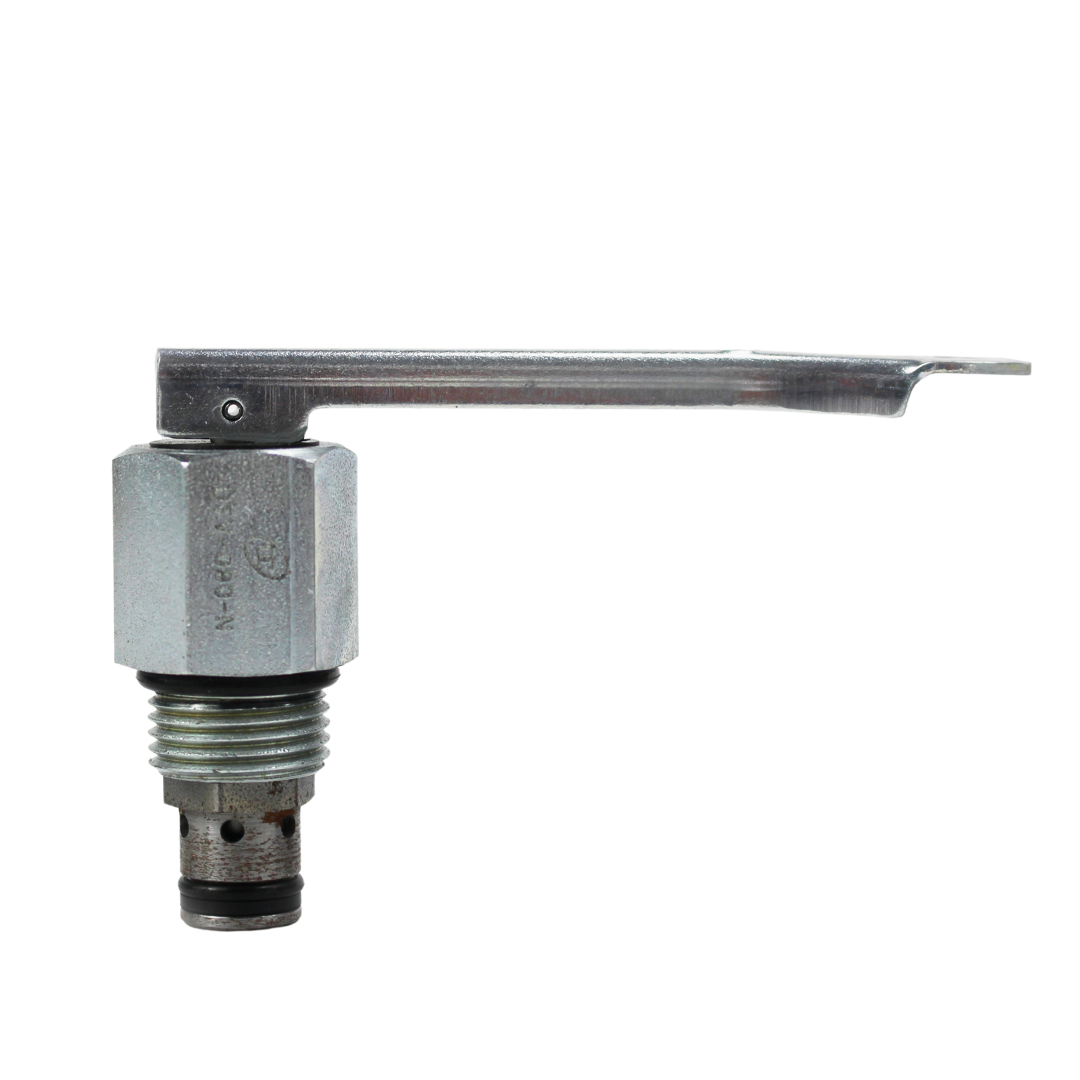

The Deltrol Fluid Products DTV-080 is a toggle-operated, two-way, two-position cartridge valve designed for load holding applications. It features a chrome alloy ball for durability and blocks flow between ports 1 and 2 until the toggle handle is actuated. When the toggle is pushed or pulled, the valve allows fluid to flow between the ports, overcoming a spring force of 450 PSI (31 Bar). The valve includes over-center detents that secure it in the open position, ensuring reliable performance. With a maximum operating pressure of 3000 PSI and a flow rate up to 6 GPM, it is ideal for various hydraulic systems. Constructed from anodized aluminum, it offers long-term reliability for mineral-based fluids.
