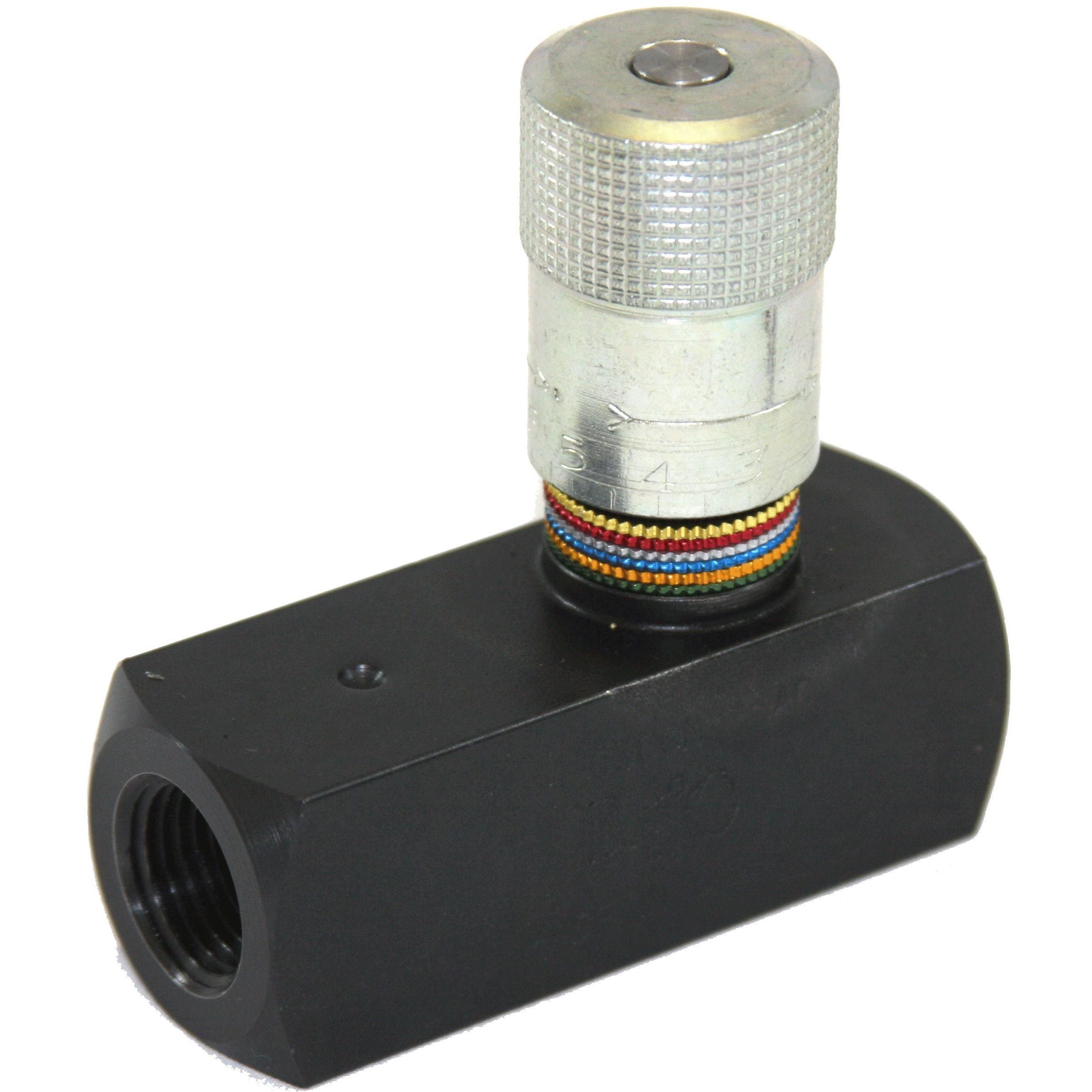

FC1H-0625S : DMIC Flow Control, Unidirectional, with Integrated Check, #10 SAE (5/8"), Carbon Steel, 5000psi
Roll over image to zoom in Click on image to zoom
FC1H-0625S : DMIC Flow Control, Unidirectional, with Integrated Check, #10 SAE (5/8"), Carbon Steel, 5000psi

FC1H-0625S : DMIC Flow Control, Unidirectional, with Integrated Check, #10 SAE (5/8"), Carbon Steel, 5000psi

Save $34.49
DMICSKU: FC1H0625S
1-2 Weeks
Price:
$77.99 $112.48

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-2 Weeks
Factory Location Wheatfield, NY
Connection Size #10 SAE (5/8")
Material Carbon Steel
Panel Mount Option No Panel Mount Nut
Adjustment Type Knob Adjustable
Flow Rating 25
Pressure Rating 5000
Height 4.07
Length 4.62
Width 1.5
Weight 0

Description

The DMIC FC1H flow control valve is a carbon steel, unidirectional flow control rated for working pressures to 5000psi. An integrated 5psi poppet check valve provides free return flow. These valves have come with a set screw to prevent tampering.
