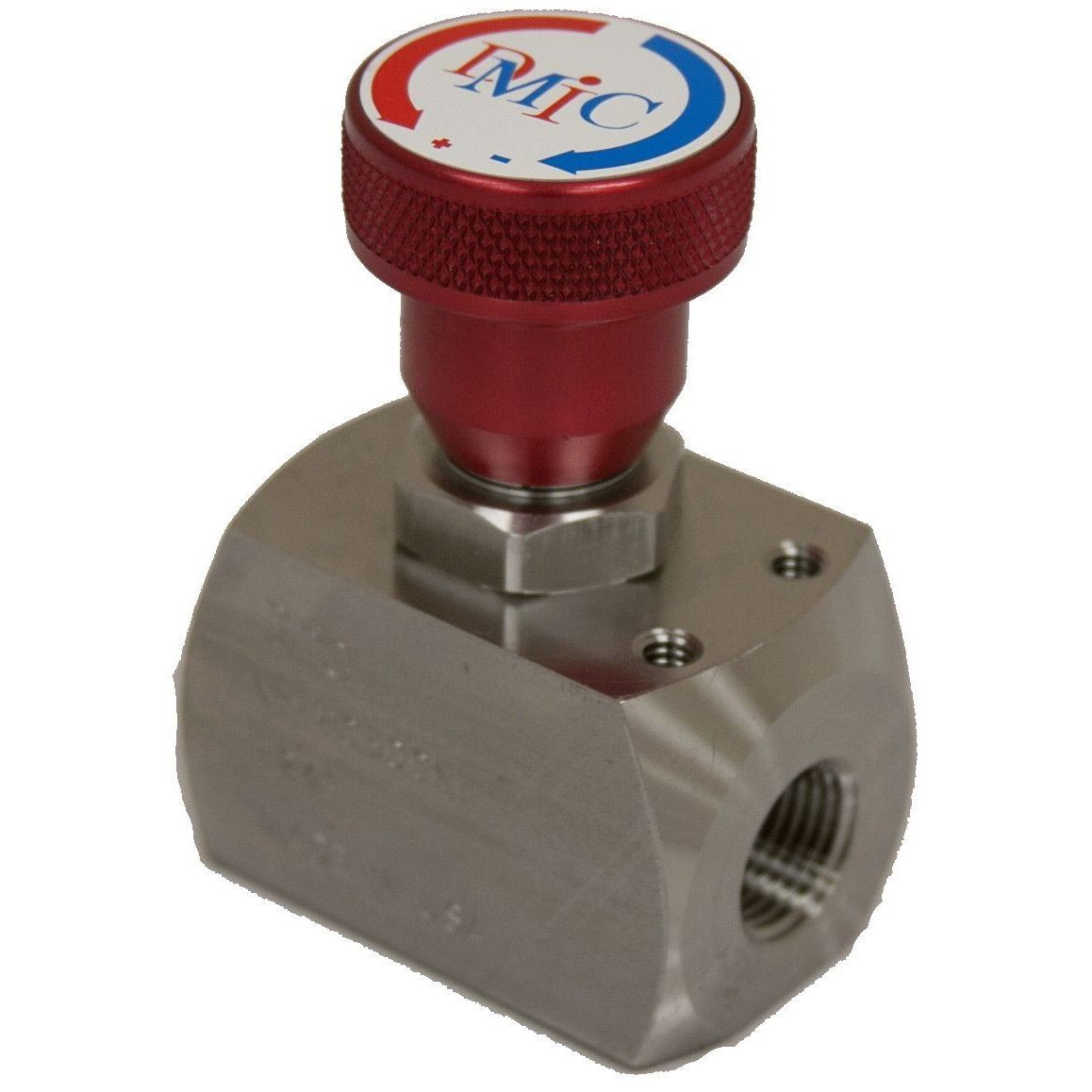

NVHH-1000S-1141 : DMIC Bidirectional Needle Valve, #16 SAE (1"), Carbon Steel, 10000psi
Roll over image to zoom in Click on image to zoom
NVHH-1000S-1141 : DMIC Bidirectional Needle Valve, #16 SAE (1"), Carbon Steel, 10000psi

NVHH-1000S-1141 : DMIC Bidirectional Needle Valve, #16 SAE (1"), Carbon Steel, 10000psi

Save $91.63
DMICSKU: NVHH1000S1141
1-2 Weeks
Price:
$205.99 $297.62

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-2 Weeks
Factory Location Wheatfield, NY
Connection Size #16 SAE (1")
Material Carbon Steel
Panel Mount Option No Panel Mount Nut
Adjustment Type Knob Adjustment
Flow Rating 18
Pressure Rating 10000
Height 4.5
Length 3.75
Width 2
Weight 0

Description

The DMIC NVHH needle valve is available in carbon or stainless steel, for bidirectional flow control, rated for working pressures to 10,000psi. These valves come with standard panel mounting holes, and are fully repairable.
