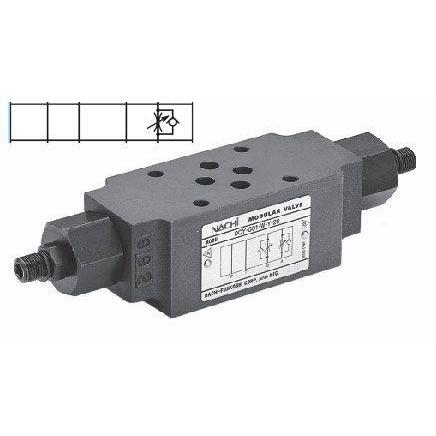

OCY-G01-A-Y-20 : Nachi Flow Control, D03 (NG6), 50GPM, 3625psi, Non-Compensated, Hand Screw, Meter Out Control, Throttle Line A
Roll over image to zoom in Click on image to zoom
OCY-G01-A-Y-20 : Nachi Flow Control, D03 (NG6), 50GPM, 3625psi, Non-Compensated, Hand Screw, Meter Out Control, Throttle Line A

OCY-G01-A-Y-20 : Nachi Flow Control, D03 (NG6), 50GPM, 3625psi, Non-Compensated, Hand Screw, Meter Out Control, Throttle Line A

Save $33.01
NachiSKU: OCY-G01-A-Y-20
1-3 Days
80
Price:
$126.99 $160.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 80
Factory Location Greenwood, Indiana
Valve Type Modular (Stacking) Valve, Meter Out
Adjustment Type Hand Screw
Valve Interface D03 (NG6)
Flow Rating 50
Pressure Rating 3625
Height 1.81
Length 1.57
Width 7.48
Weight 2.8

Description

The Nachi Modular flow control valve is used to control actuator speed, and for other applications where flow control in a specific line may be required. A wide range of models are available for control in various ports. These valves are not pressure or temperature compensated.
