OCY-G03-A-X-J51 : Nachi Flow Control, D05 (NG10), 100GPM, 3625psi, Non-Compensated, Hand Screw, Meter In Control, Throttle Line A
Roll over image to zoom in Click on image to zoom
OCY-G03-A-X-J51 : Nachi Flow Control, D05 (NG10), 100GPM, 3625psi, Non-Compensated, Hand Screw, Meter In Control, Throttle Line A

OCY-G03-A-X-J51 : Nachi Flow Control, D05 (NG10), 100GPM, 3625psi, Non-Compensated, Hand Screw, Meter In Control, Throttle Line A

Save $45.01
NachiSKU: OCY-G03-A-X-J51
1-3 Days
8
Price:
$171.99 $217.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 8
Factory Location Greenwood, Indiana
Valve Type Modular (Stacking) Valve, Meter In
Adjustment Type Hand Screw
Valve Interface D05 (NG10)
Flow Rating 100
Pressure Rating 3625
Height 2.76
Length 2.17
Width 8.9
Weight 2.8

Description

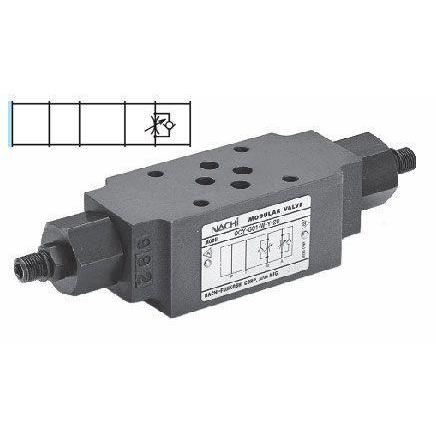

The Nachi Modular flow control valve is used to control actuator speed, and for other applications where flow control in a specific line may be required. A wide range of models are available for control in various ports. These valves are not pressure or temperature compensated.
