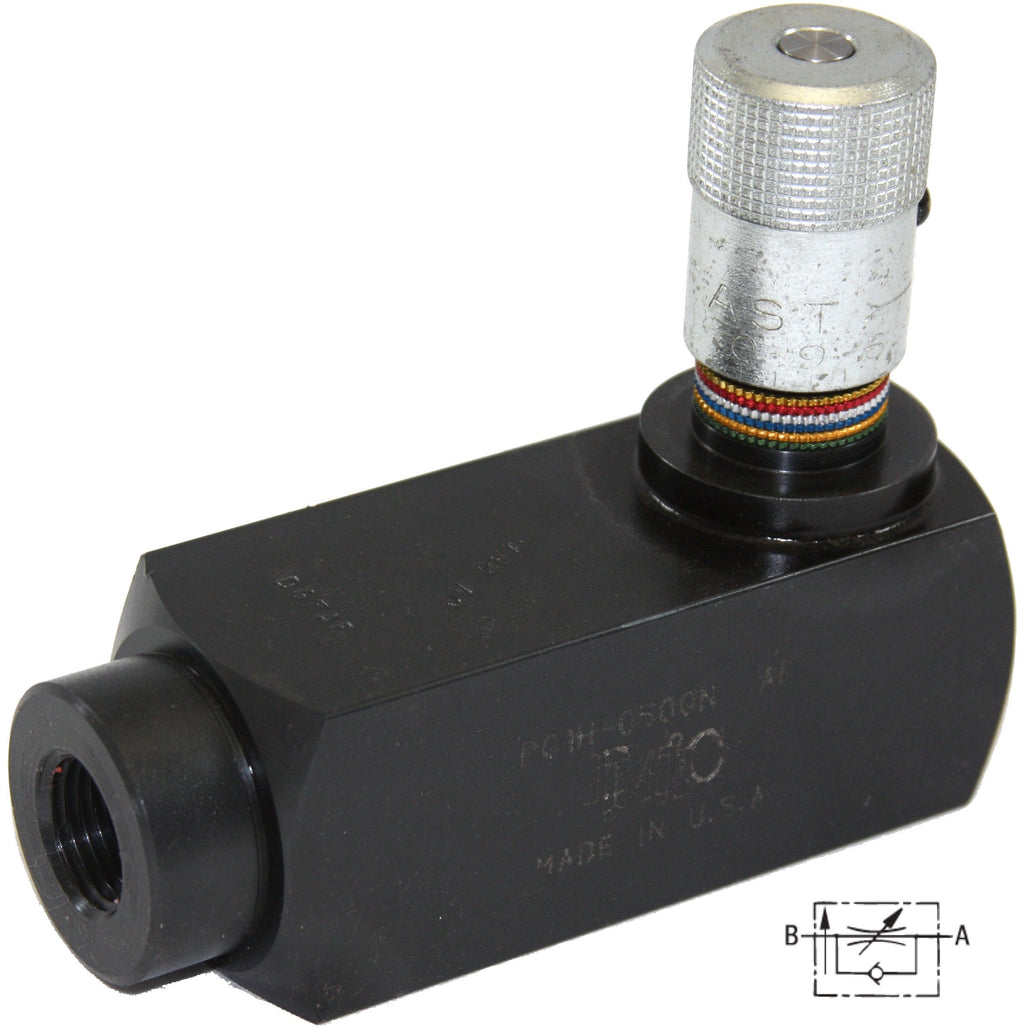

PC2H-0375S : DMIC Pressure Comp Flow Control, Metered Both Directions, #6 SAE (3/8"), 3000psi, Carbon Steel
Roll over image to zoom in Click on image to zoom
PC2H-0375S : DMIC Pressure Comp Flow Control, Metered Both Directions, #6 SAE (3/8"), 3000psi, Carbon Steel

PC2H-0375S : DMIC Pressure Comp Flow Control, Metered Both Directions, #6 SAE (3/8"), 3000psi, Carbon Steel

Save $126.03
DMICSKU: PC2H0375S
1-2 Weeks
Price:
$281.99 $408.02

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-2 Weeks
Factory Location Wheatfield, NY
Material Carbon Steel
Port Size #6 SAE (3/8")
Panel Mount Option Without Panel Mounting Nut
Valve Type Inline
Adjustment Type Knob Adjustable
Pressure Rating 3000
Country of Manufacture United States
Height 3.15
Length 4.16
Width 1.5
Weight 1.5

Description

The DMIC PC2H is a bidirectional, pressure compensated, metered flow control. This valve is used to maintain bidirectional flow regulated within 5% of the user setting upon inlet and outlet pressure fluctuation. The ChromaFlow color-coded design allows the user to see visually how the flow control is set, facilitates calibration, system documentation, and restoration of correct settings if required. This valve comes with a set screw to prevent tampering.
