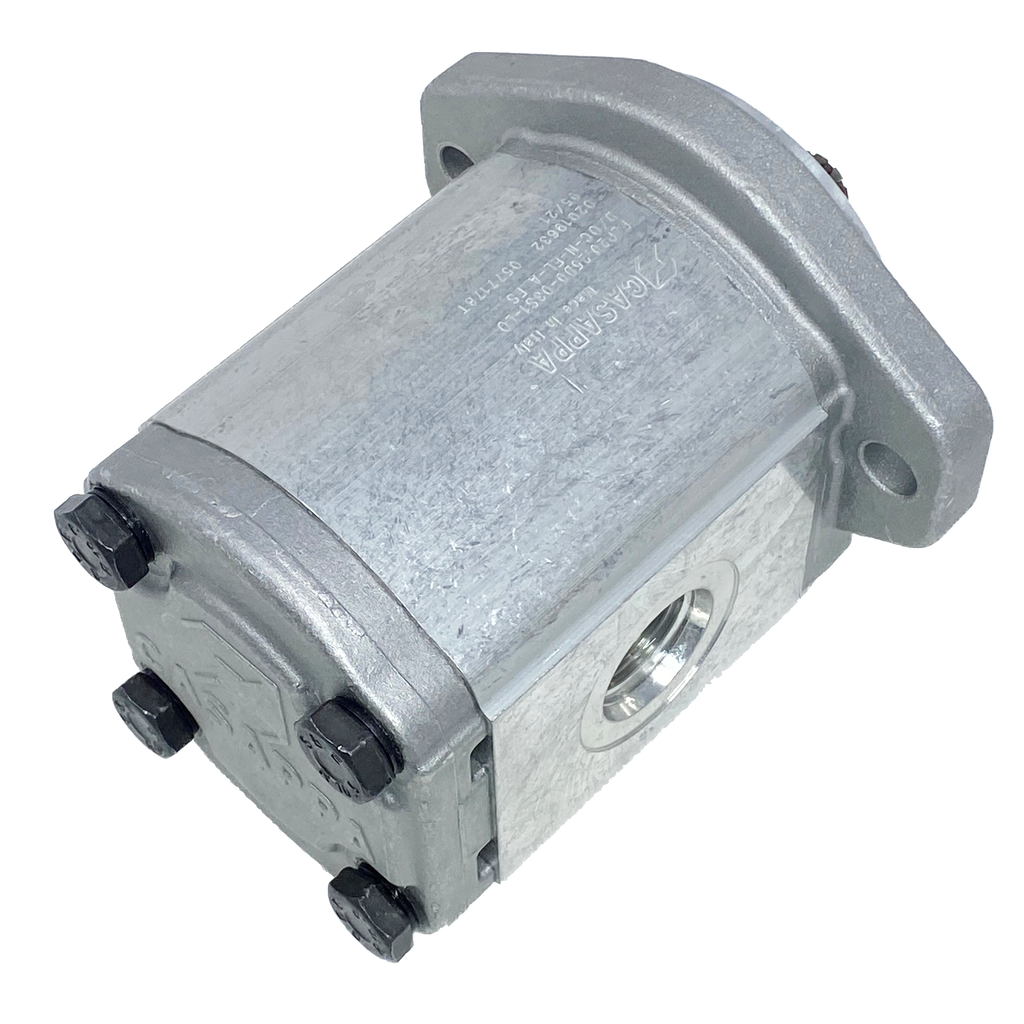

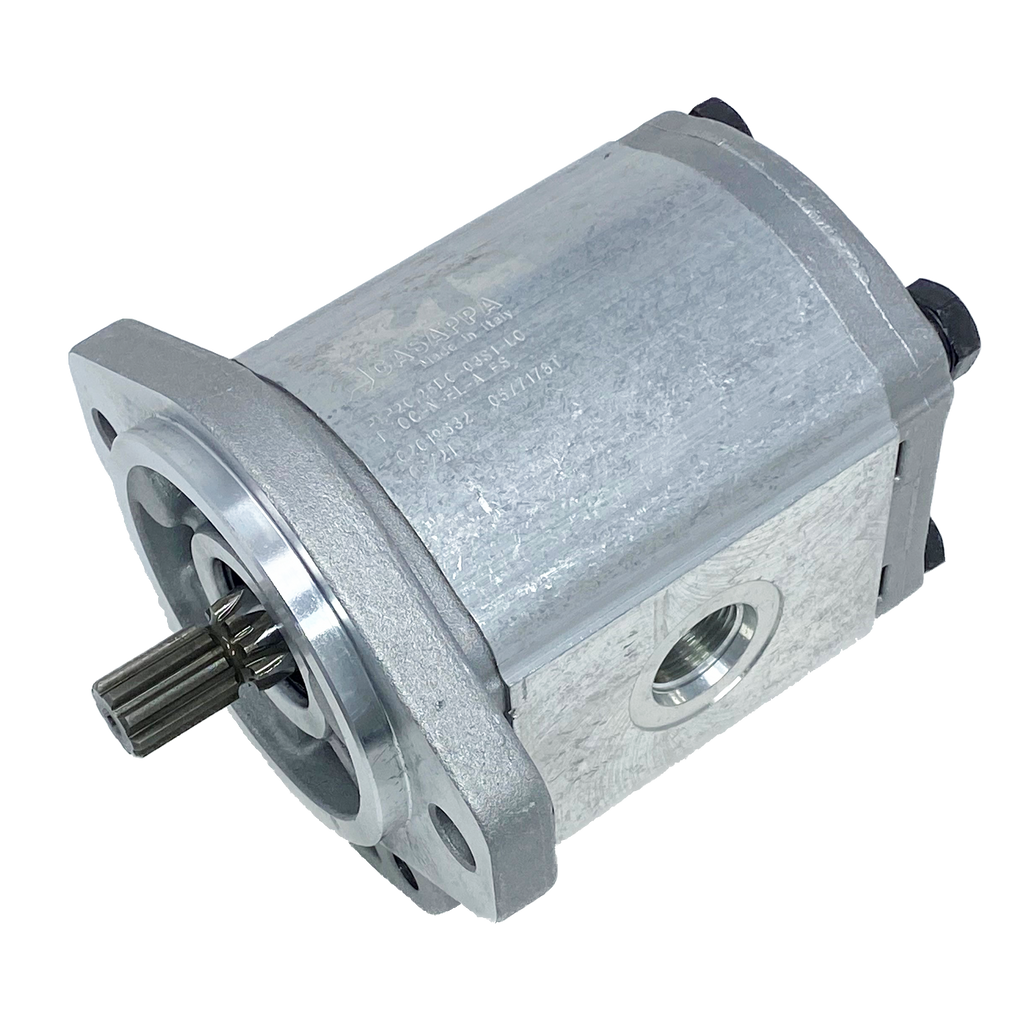

PHP20.25S0-03S9-LOG/OC-N-EL : Casappa Polaris Gear Pump, 26.42cc, 3335psi Rated, 3000RPM, CCW, 9T 16/32dp Shaft, SAE A 2-Bolt Flange, 1.25" #20 SAE Inlet, 0.625 (5/8") #10 SAE Outlet, Cast Iron Body, Aluminum Flange
PHP20.25S0-03S9-LOG/OC-N-EL : Casappa Polaris Gear Pump, 26.42cc, 3335psi Rated, 3000RPM, CCW, 9T 16/32dp Shaft, SAE A 2-Bolt Flange, 1.25" #20 SAE Inlet, 0.625 (5/8") #10 SAE Outlet, Cast Iron Body, Aluminum Flange
Roll over image to zoom in Click on image to zoom
PHP20.25S0-03S9-LOG/OC-N-EL : Casappa Polaris Gear Pump, 26.42cc, 3335psi Rated, 3000RPM, CCW, 9T 16/32dp Shaft, SAE A 2-Bolt Flange, 1.25" #20 SAE Inlet, 0.625 (5/8") #10 SAE Outlet, Cast Iron Body, Aluminum FlangePHP20.25S0-03S9-LOG/OC-N-EL : Casappa Polaris Gear Pump, 26.42cc, 3335psi Rated, 3000RPM, CCW, 9T 16/32dp Shaft, SAE A 2-Bolt Flange, 1.25" #20 SAE Inlet, 0.625 (5/8") #10 SAE Outlet, Cast Iron Body, Aluminum Flange

PHP20.25S0-03S9-LOG/OC-N-EL : Casappa Polaris Gear Pump, 26.42cc, 3335psi Rated, 3000RPM, CCW, 9T 16/32dp Shaft, SAE A 2-Bolt Flange, 1.25" #20 SAE Inlet, 0.625 (5/8") #10 SAE Outlet, Cast Iron Body, Aluminum Flange

Save $25.84
CasappaSKU: PHP20.25S0-03S9-LOG/OC-N-EL
20 Weeks
Price:
$490.99 $516.83

Product Details

Data Sheet Download Datasheet
Usually Ships Within 20 Weeks
Factory Location Batavia, IL
Material Cast Iron Body Aluminum Flange And Cover
Shaft Size 9T 16/32dp
Shaft Type Splined
Pressure Rating 3335
Rotation Counterclockwise
Displacement 26.42
Gpm At 1800 Rpm 12.56
Max Speed 3000
Inlet Port 1.25" #20 SAE
Outlet Port 0.625 (5/8") #10 SAE
Clamp Group Size Group 2 Pump
Port Orientation Side
Country of Manufacture Country of Manufacture: Italy
Height 4.5
Length 6.26
Width 5.13
Weight 13.64

Description

The Polaris pump is a result of more than fifty years of Casappa experience in design and production of hydraulic components. Polaris pumps and motors are comprised of a gear housing in aluminum alloy, two gear wheels supported by sleeve bearings and two end plates, and the front and the rear cover available in either aluminum or cast iron with excellent mechanical characteristics.
