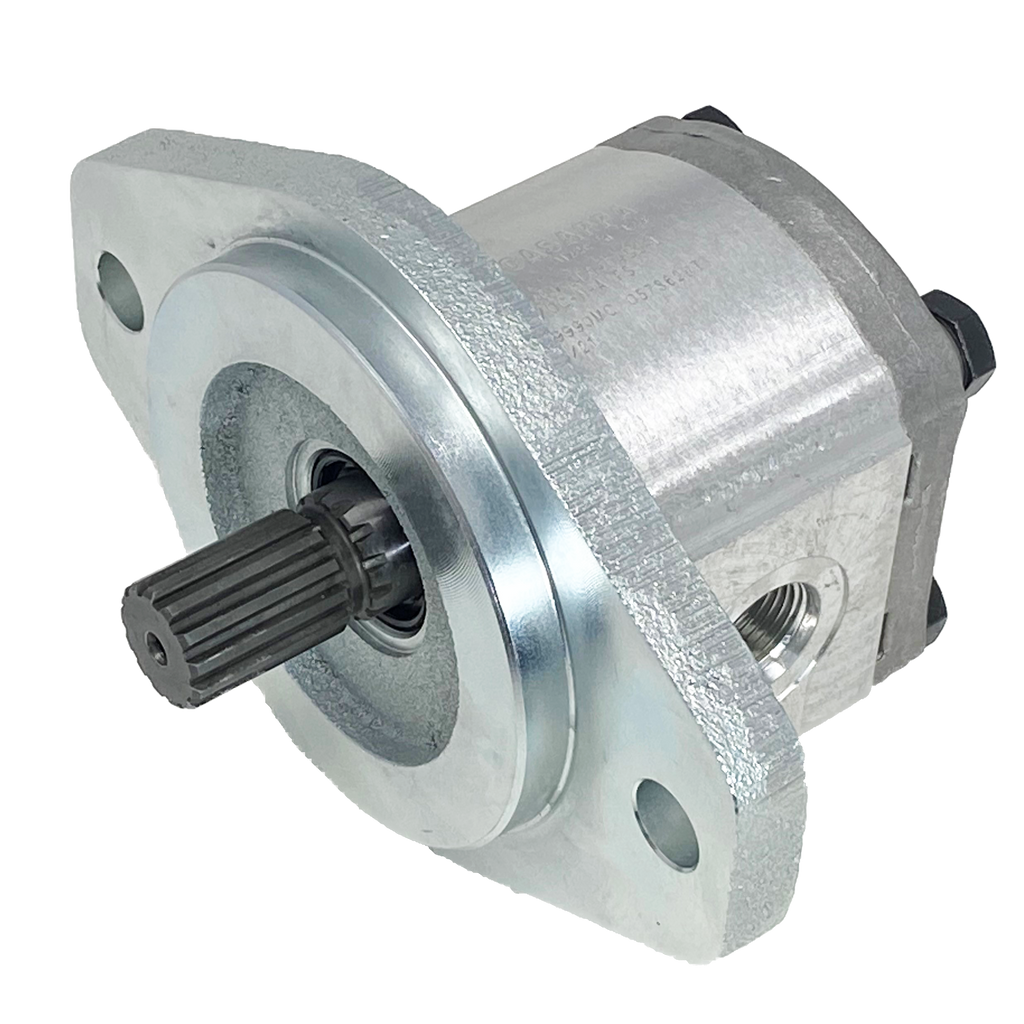

PLM20.9B0-04S5-LOC/OC-N-L : Casappa Polaris Gear Motor, 9.17cc, 3625psi Rated, 3500RPM, Reversible Interior Drain, 13T 16/32dp Shaft, SAE B 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 0.625 (5/8") #10 SAE Outlet, Aluminum Body, Cast Iron Flange
PLM20.9B0-04S5-LOC/OC-N-L : Casappa Polaris Gear Motor, 9.17cc, 3625psi Rated, 3500RPM, Reversible Interior Drain, 13T 16/32dp Shaft, SAE B 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 0.625 (5/8") #10 SAE Outlet, Aluminum Body, Cast Iron Flange
Roll over image to zoom in Click on image to zoom
PLM20.9B0-04S5-LOC/OC-N-L : Casappa Polaris Gear Motor, 9.17cc, 3625psi Rated, 3500RPM, Reversible Interior Drain, 13T 16/32dp Shaft, SAE B 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 0.625 (5/8") #10 SAE Outlet, Aluminum Body, Cast Iron FlangePLM20.9B0-04S5-LOC/OC-N-L : Casappa Polaris Gear Motor, 9.17cc, 3625psi Rated, 3500RPM, Reversible Interior Drain, 13T 16/32dp Shaft, SAE B 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 0.625 (5/8") #10 SAE Outlet, Aluminum Body, Cast Iron Flange

PLM20.9B0-04S5-LOC/OC-N-L : Casappa Polaris Gear Motor, 9.17cc, 3625psi Rated, 3500RPM, Reversible Interior Drain, 13T 16/32dp Shaft, SAE B 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 0.625 (5/8") #10 SAE Outlet, Aluminum Body, Cast Iron Flange

Save $30.84
CasappaSKU: PLM20.9B0-04S5-LOC/OC-N-L
20 Weeks
Price:
$585.99 $616.83

Product Details

Data Sheet Download Datasheet
Usually Ships Within 20 Weeks
Factory Location Batavia, IL
Material Aluminum Body And rear Cover Cast Iron Flange
Shaft Size 13T 16/32dp
Shaft Type Splined
Pressure Rating 3625
Rotation Reversible Internal Drain
Displacement 9.17
Gpm At 1800 Rpm 4.36
Max Speed 3500
Inlet Port 0.625 (5/8") #10 SAE
Outlet Port 0.625 (5/8") #10 SAE
Clamp Group Size Group 2 Motor
Port Orientation Side
Country of Manufacture Country of Manufacture: Italy
Height 5.04
Length 5.61
Width 5.12
Weight #VALUE!

Description

The Polaris pump is a result of more than fifty years of Casappa experience in design and production of hydraulic components. Polaris pumps and motors are comprised of a gear housing in aluminum alloy, two gear wheels supported by sleeve bearings and two end plates, and the front and the rear cover available in either aluminum or cast iron with excellent mechanical characteristics.
