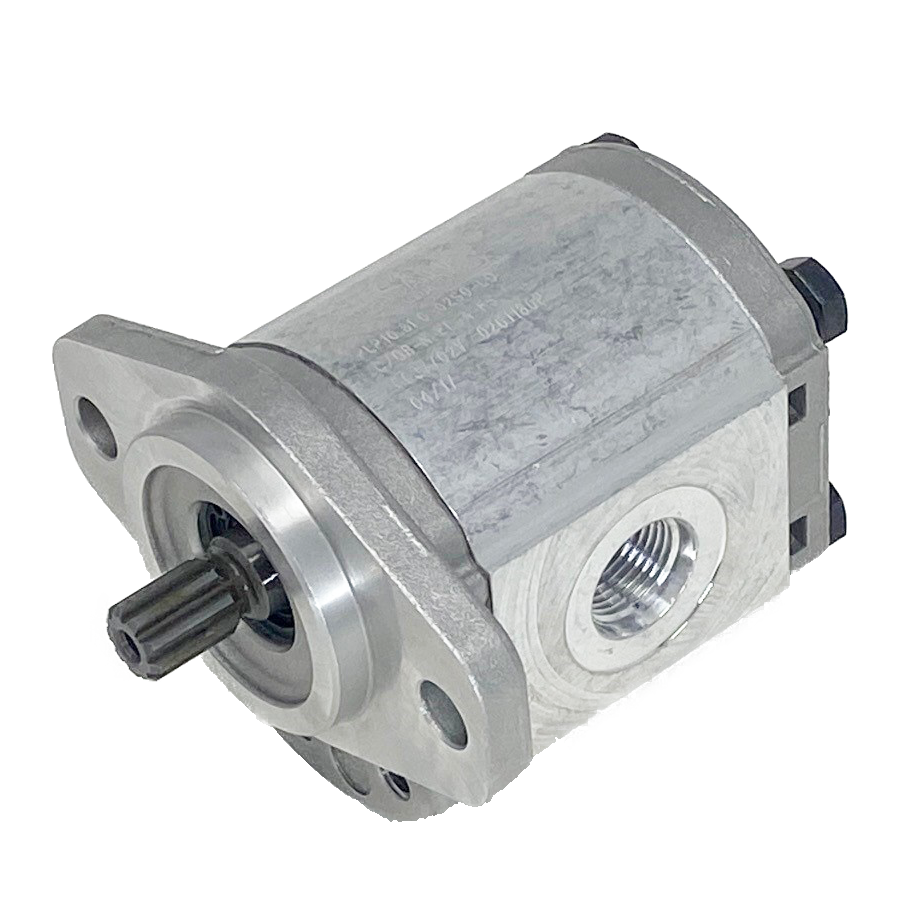

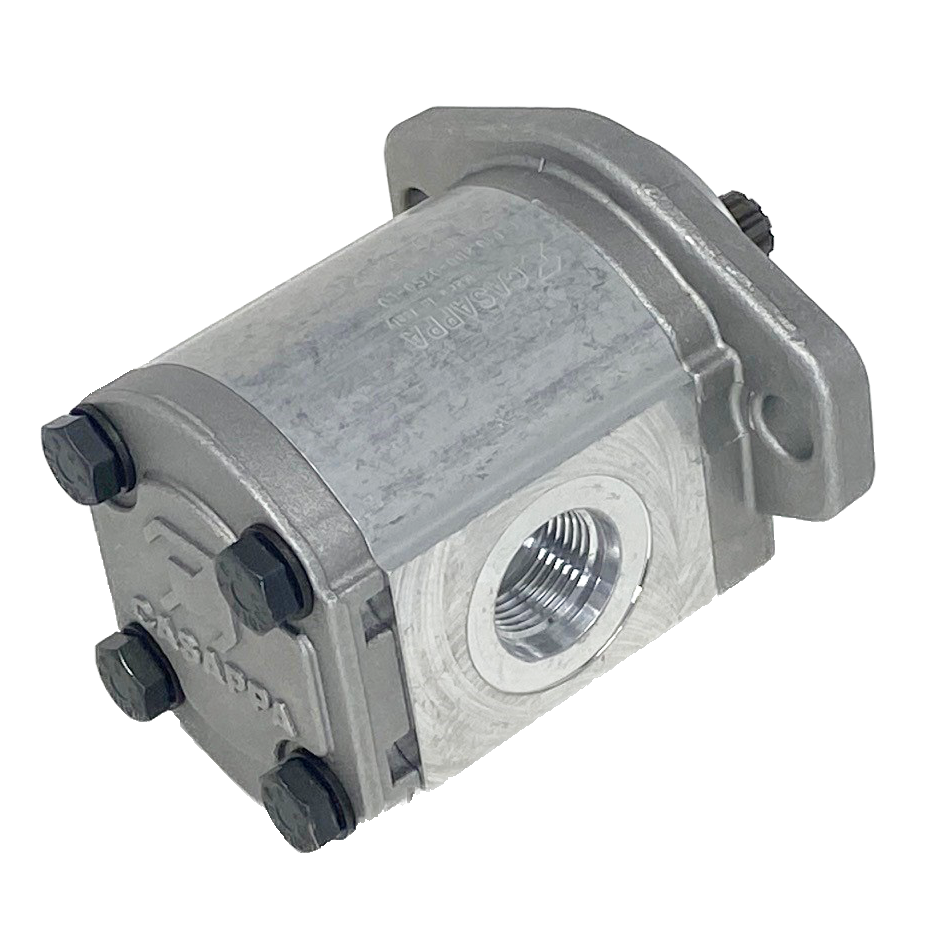

PLP10.8D0-02S0-LOC/OB-N-EL : Casappa Polaris Gear Pump, 8.51cc, 2610psi Rated, 3500RPM, CW, 9T 20/40dp Shaft, SAE AA 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 0.375 (3/8") #6 SAE Outlet, Aluminum Body & Flange
PLP10.8D0-02S0-LOC/OB-N-EL : Casappa Polaris Gear Pump, 8.51cc, 2610psi Rated, 3500RPM, CW, 9T 20/40dp Shaft, SAE AA 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 0.375 (3/8") #6 SAE Outlet, Aluminum Body & Flange
Roll over image to zoom in Click on image to zoom
PLP10.8D0-02S0-LOC/OB-N-EL : Casappa Polaris Gear Pump, 8.51cc, 2610psi Rated, 3500RPM, CW, 9T 20/40dp Shaft, SAE AA 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 0.375 (3/8") #6 SAE Outlet, Aluminum Body & FlangePLP10.8D0-02S0-LOC/OB-N-EL : Casappa Polaris Gear Pump, 8.51cc, 2610psi Rated, 3500RPM, CW, 9T 20/40dp Shaft, SAE AA 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 0.375 (3/8") #6 SAE Outlet, Aluminum Body & Flange

PLP10.8D0-02S0-LOC/OB-N-EL : Casappa Polaris Gear Pump, 8.51cc, 2610psi Rated, 3500RPM, CW, 9T 20/40dp Shaft, SAE AA 2-Bolt Flange, 0.625 (5/8") #10 SAE Inlet, 0.375 (3/8") #6 SAE Outlet, Aluminum Body & Flange

Save $16.68
CasappaSKU: PLP10.8D0-02S0-LOC/OB-N-EL
20 Weeks
Price:
$316.99 $333.67

Product Details

Data Sheet Download Datasheet
Usually Ships Within 20 Weeks
Factory Location Batavia, IL
Material Aluminum Body Aluminum Flange And Cover
Shaft Size 9T 20/40dp
Shaft Type Splined
Pressure Rating 2610
Rotation Clockwise
Displacement 8.51
Gpm At 1800 Rpm 4.05
Max Speed 3500
Inlet Port 0.625 (5/8") #10 SAE
Outlet Port 0.375 (3/8") #12 SAE
Clamp Group Size Group 1 Pump
Port Orientation Side
Country of Manufacture Country of Manufacture: Italy
Height 3.16
Length 4.66
Width 4
Weight 2.7

Description

The Polaris pump is a result of more than fifty years of Casappa experience in design and production of hydraulic components. Polaris pumps and motors are comprised of a gear housing in aluminum alloy, two gear wheels supported by sleeve bearings and two end plates, and the front and the rear cover available in either aluminum or cast iron with excellent mechanical characteristics.
