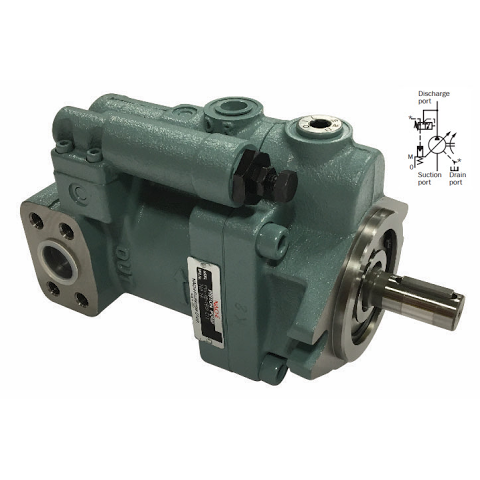

PVS-1B-22N1-U-12 : Nachi Variable Piston Pump, 22cc, 10.5GPM, 2000RPM, 3625psi, SAE A 2-Bolt, 3/4" Bore x 3/16" Key Shaft, Pressure Comp, 286-1000psi Range, Side Ported
Roll over image to zoom in Click on image to zoom
PVS-1B-22N1-U-12 : Nachi Variable Piston Pump, 22cc, 10.5GPM, 2000RPM, 3625psi, SAE A 2-Bolt, 3/4" Bore x 3/16" Key Shaft, Pressure Comp, 286-1000psi Range, Side Ported

PVS-1B-22N1-U-12 : Nachi Variable Piston Pump, 22cc, 10.5GPM, 2000RPM, 3625psi, SAE A 2-Bolt, 3/4" Bore x 3/16" Key Shaft, Pressure Comp, 286-1000psi Range, Side Ported

Save $566.01
NachiSKU: PVS-1B-22N1-U-12
1-3 Days
6
Price:
$2,088.99 $2,655.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 6
Factory Location Greenwood, Indiana
Shaft Size 3/4" Bore x 3/16" Key
Shaft Type Keyed
Pressure Rating 3625
Rotation Clockwise
Displacement 22
Gpm At 1800 Rpm 10.5
Max Speed 2000
Inlet Port 1" Code 61
Outlet Port 3/4" Code 61
Mount SAE A 2-Bolt
Pump Control Pressure Compensation Control
Pressure Range 286-1000psi
Drain Port #6 SAE (3/8")
Port Orientation Side Ported
Height 5.6
Length 7.15
Width 5.12
Weight 23

Description

The Nachi-proprietary semi-circular barrel swash plate that receives pressure on its surface ensures a stable discharge volume at all times. This eliminates excess discharge volume, and enables the effective use of power corresponding to the load cycle. This "energy-saving type" conserves energy, reduces power loss, and helps to reduce hydraulic costs. Proprietary low-noise mechanisms are incorporated on the shoe, swash plate, valve plate, and other locations to ensure silent operation. In particular, a semi-circular barrel swash plate stabilizes operation characteristics to ensure silent operation.
