Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Huntersville, North Carolina |
| Material | Steel, zinc-nickel coated |
| Valve Type | Directional Leak Free Poppet |
| Valve Interface | D03 (NG6) |
| Flow Rating | 6.6 |
| Pressure Rating | 5800 |
| Operating Temp Range | -40 to +176F |
| Voltage | 24 VDC |
| Seal Material | NBR |
| Actuation Type | DIN Plug |
| Series | ROLV17 |
| Spool Configuration | All Ports Blocked |
| Positions | 3-Position |
| Way | 4-Way |
| Country of Manufacture | Germany |
| Height | 3.5 |
| Length | 9 |
| Width | 2.5 |
Description

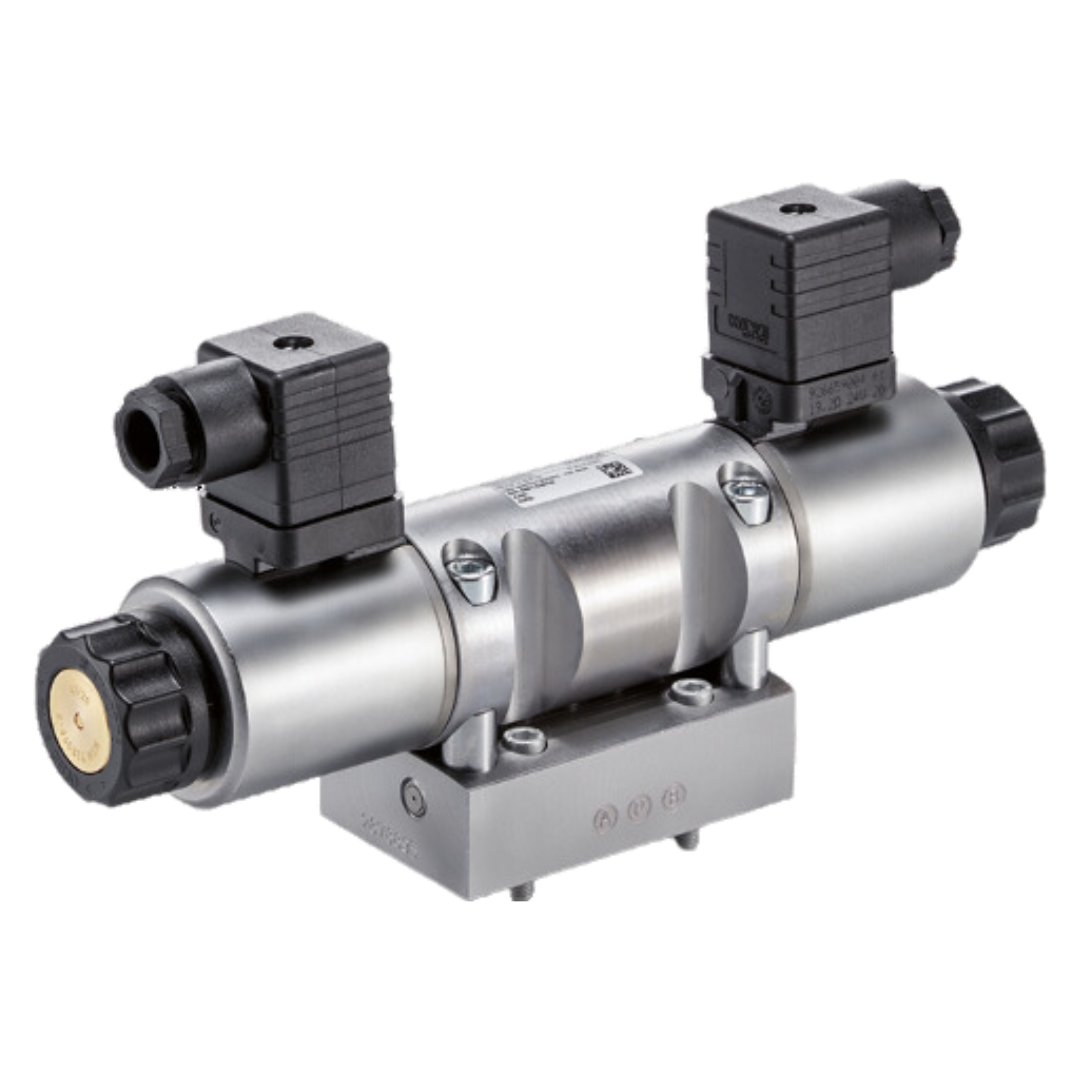

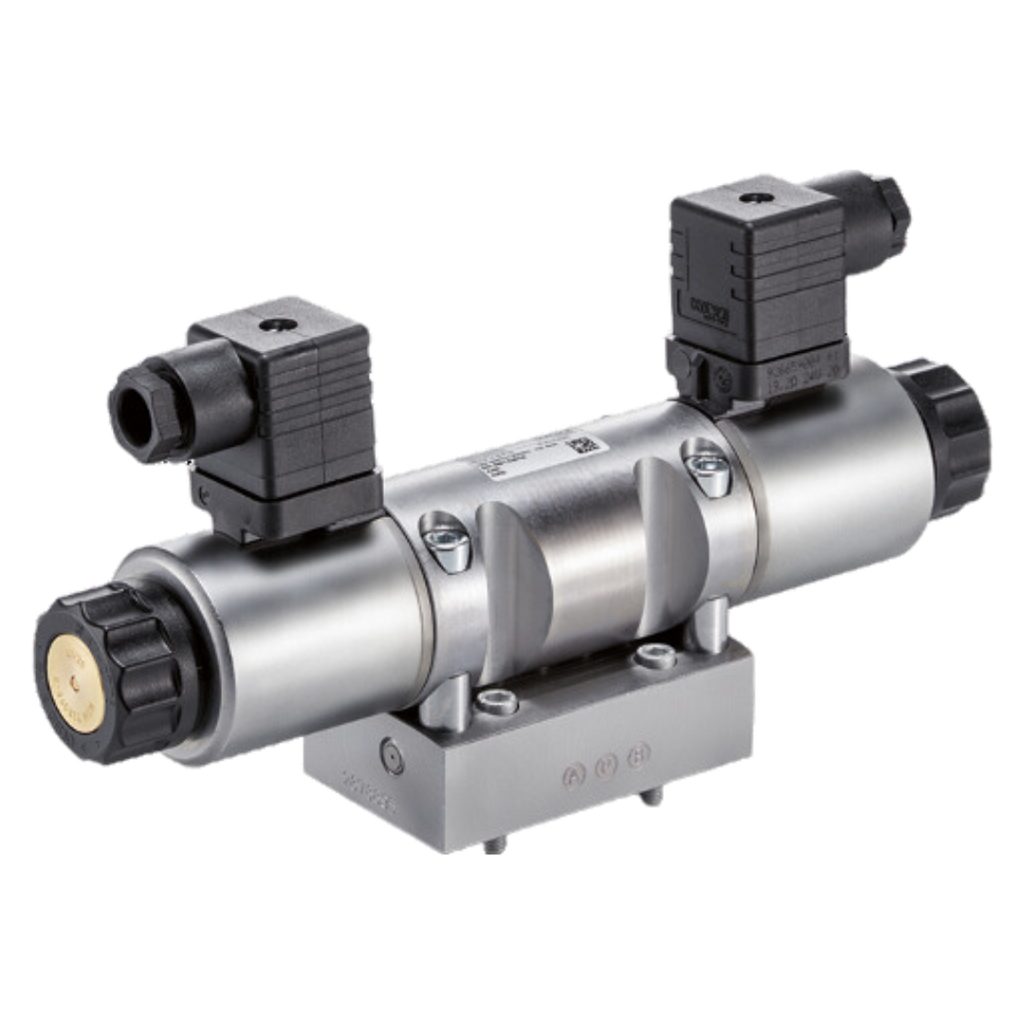

Explore the efficiency and reliability of Hawe ROLV Hydraulic Directional Seated Poppet Valves, designed to precisely control hydraulic flow in various applications including machine tools (cutting & non-cutting), clamping tools, punching tools, fixtures, testing machinery and wind turbines. Available as 3/2, 4/2, or 4/3-way directional seated valves, these valves ensure seamless movement of actuators while offering zero leakage. With a dirt-resistant design for enhanced reliability, they feature interchangeable solenoids for easy maintenance and greater flexibility. Ideal for machine tools, clamping tools, testing machinery, and wind turbines, these valves boast a zinc-coated steel body for durability and can withstand pressures up to 400 bar (5800 psi) with a flow rate of up to 25 lpm (6.6 GPM). Their patented assembly, including a round basic valve and adapter plate, allows for manifold mounting or direct pipe connection, providing versatile solutions for hydraulic systems.
