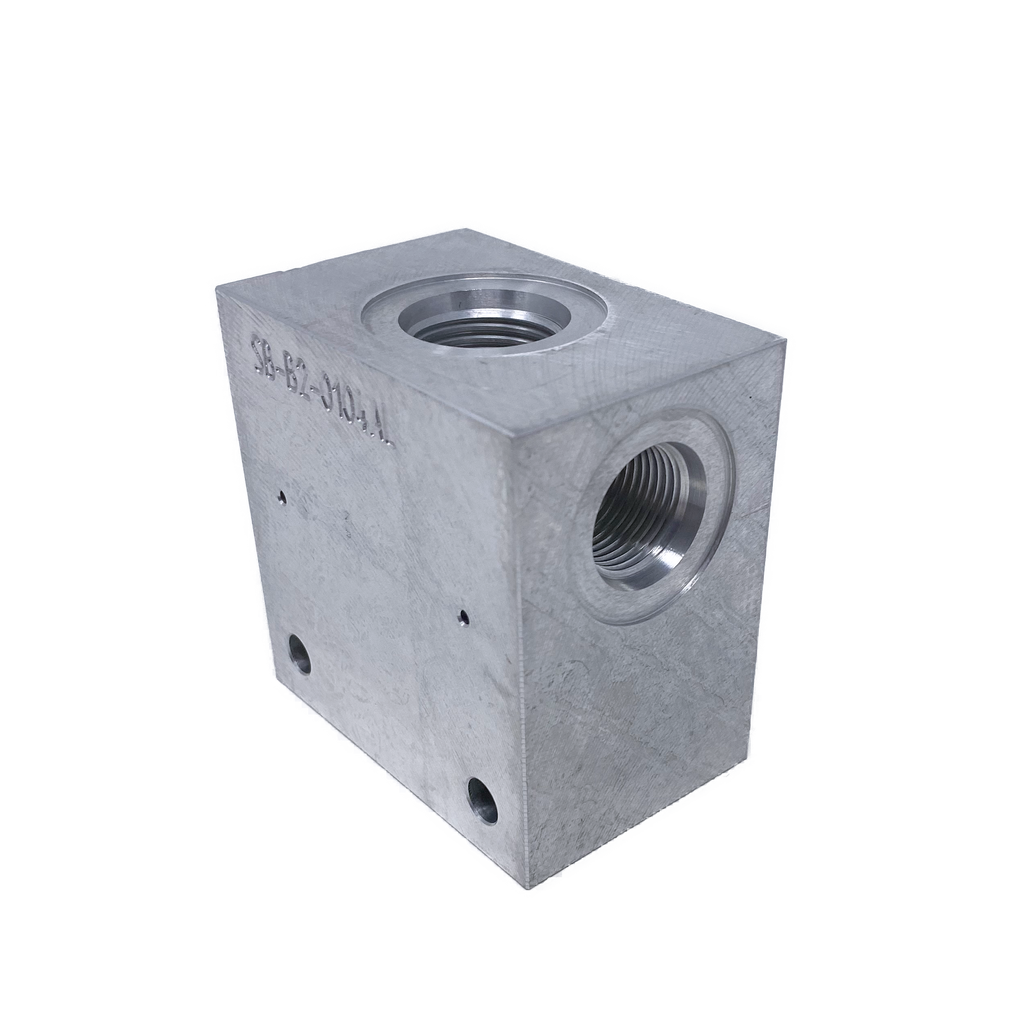

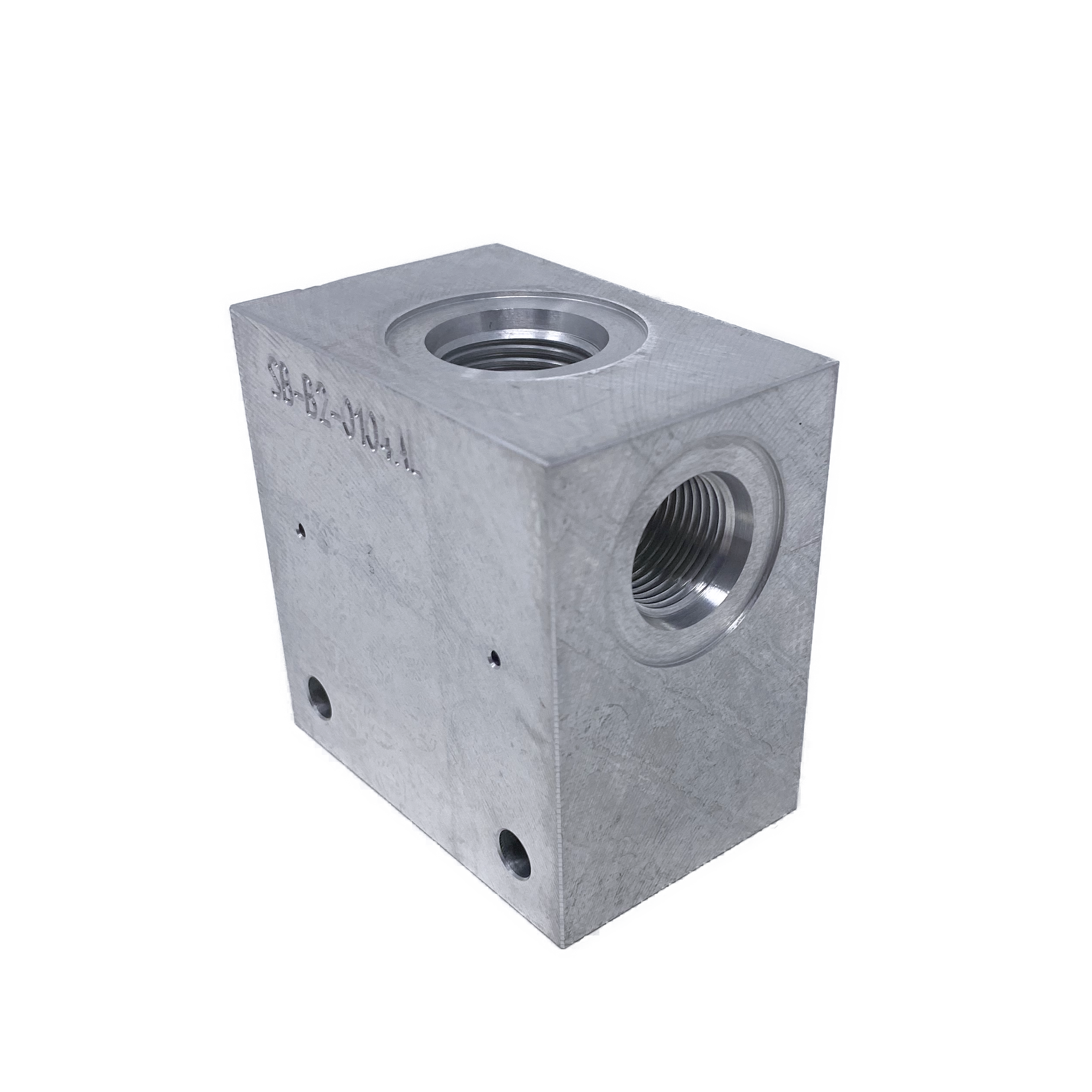

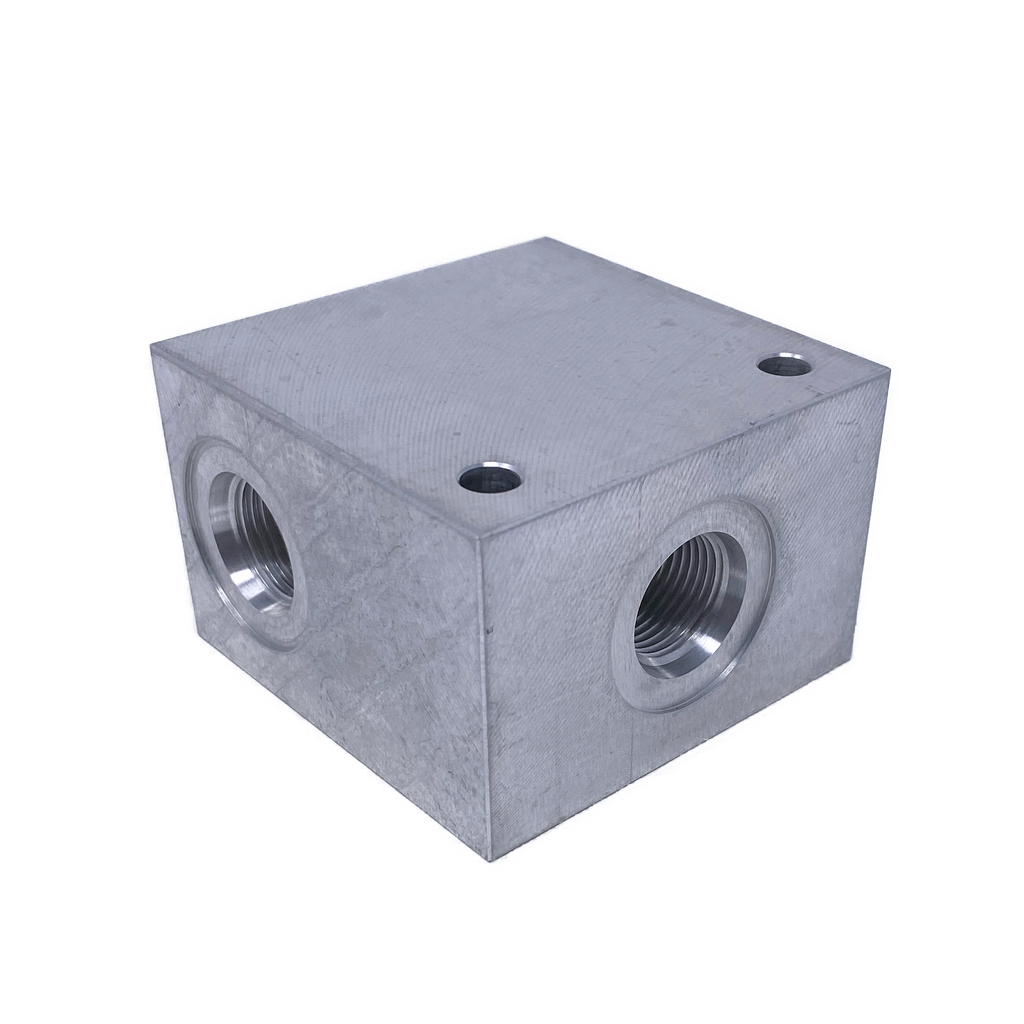

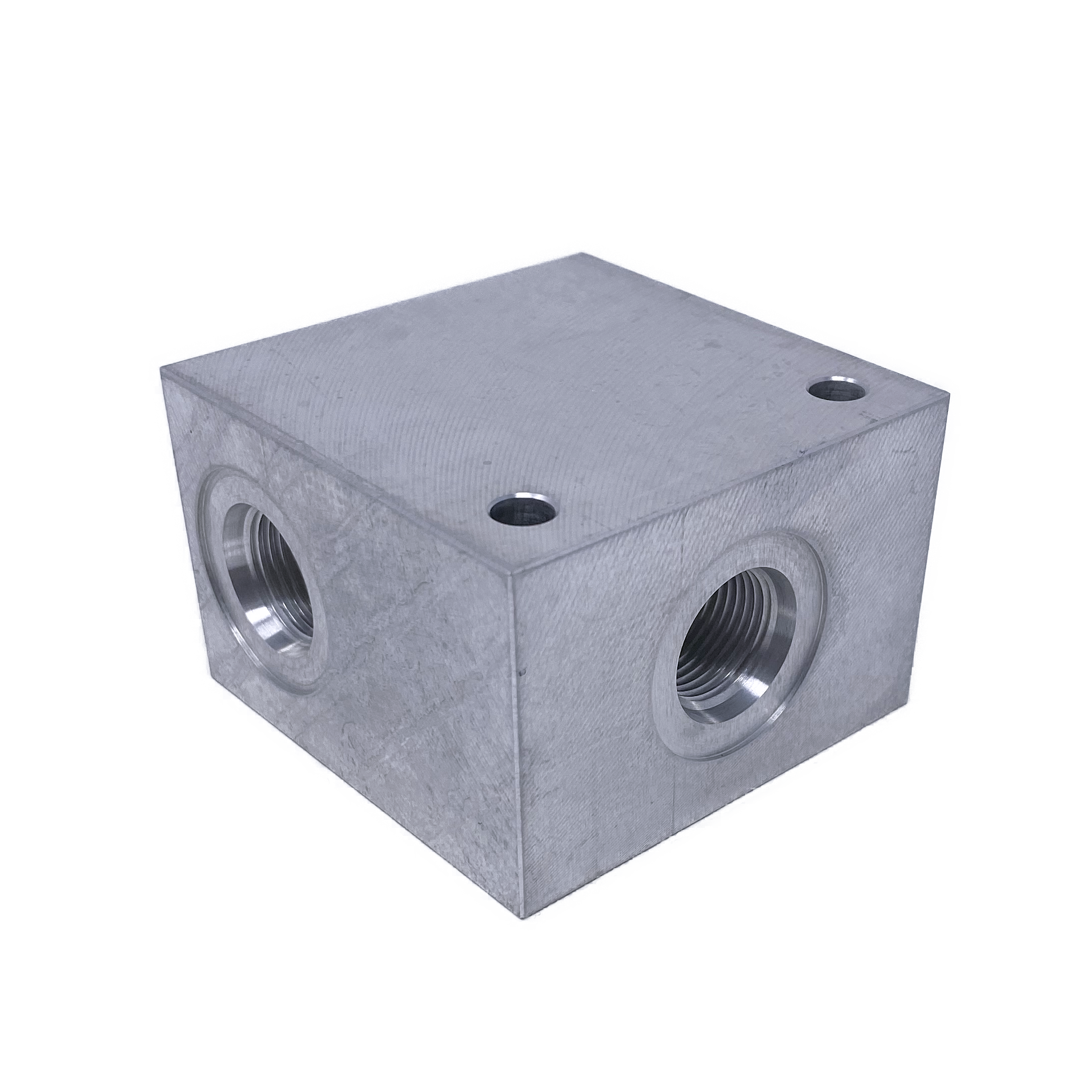

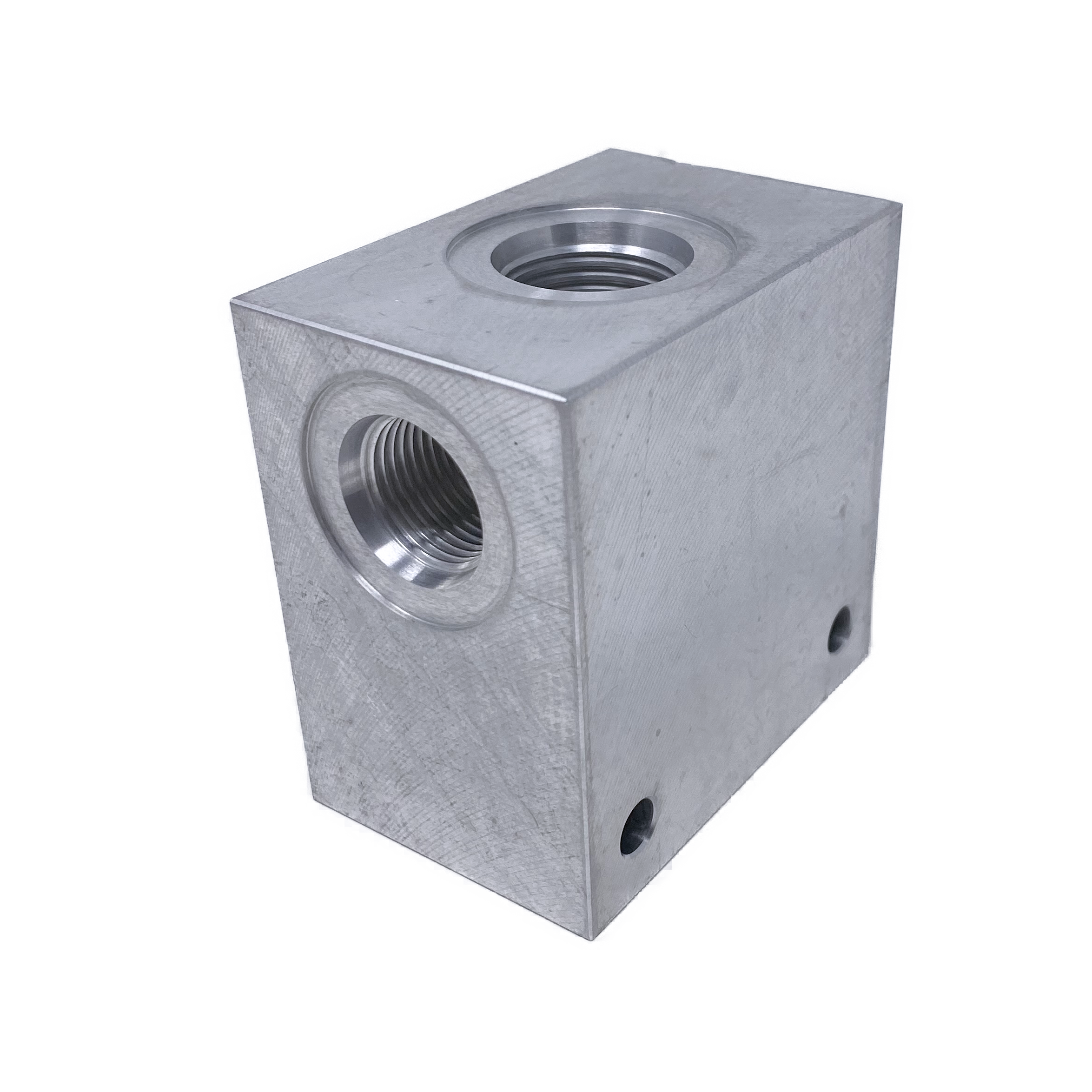

SB-B2-0104AL : Argo Inline Body, C-10-2 #8 SAE (1/2), 3626psi Rated, Aluminum, No Gauge Port
SB-B2-0104AL : Argo Inline Body, C-10-2 #8 SAE (1/2), 3626psi Rated, Aluminum, No Gauge Port
SB-B2-0104AL : Argo Inline Body, C-10-2 #8 SAE (1/2), 3626psi Rated, Aluminum, No Gauge Port
Roll over image to zoom in Click on image to zoom
SB-B2-0104AL : Argo Inline Body, C-10-2 #8 SAE (1/2), 3626psi Rated, Aluminum, No Gauge PortSB-B2-0104AL : Argo Inline Body, C-10-2 #8 SAE (1/2), 3626psi Rated, Aluminum, No Gauge PortSB-B2-0104AL : Argo Inline Body, C-10-2 #8 SAE (1/2), 3626psi Rated, Aluminum, No Gauge Port

SB-B2-0104AL : Argo Inline Body, C-10-2 #8 SAE (1/2), 3626psi Rated, Aluminum, No Gauge Port

Save $19.31
Argo-HytosSKU: 27744700
3-5 Days
9
Price:
$34.99 $54.30

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days
Factory Stock 9
Factory Location Bowling Green, Ohio
Connection Size #8 SAE (1/2)
Material Aluminum
Port Size #8 SAE (1/2")
Pressure Rating 3000
Cartridge Cavity C-10-2
Height 2.76
Length 2.76
Width 1.81
Weight 1.19

Description

Argo-Hytos Cartridge Valve Body, C-10-2, #8 SAE Ports, Aluminum.

Argo Hytos In-line bodies are designed to accommodate different cartridge valves and thus provide highly versatile solutions to hydraulic control functions. Various cavities with SAE and ISO metric threads available. Bodies are available in aluminum, steel and cast iron. In the standard version, aluminum bodies are without surface treatment, steel bodies are zinc-coated for 240 h protection acc. to ISO 9227 and cast iron bodies are phosphate. Cast iron body versions additionally feature a gauge port.
