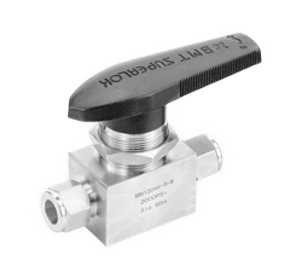

SBV120H1-S-2-BRASS : Superlok Ball Valve, One-Piece Type, 1/8" Tube O.D, 2500psi, Brass
SBV120H1-S-2-BRASS : Superlok Ball Valve, One-Piece Type, 1/8" Tube O.D, 2500psi, Brass
SBV120H1-S-2-BRASS : Superlok Ball Valve, One-Piece Type, 1/8" Tube O.D, 2500psi, Brass
SBV120H1-S-2-BRASS : Superlok Ball Valve, One-Piece Type, 1/8" Tube O.D, 2500psi, Brass
Roll over image to zoom in Click on image to zoom
SBV120H1-S-2-BRASS : Superlok Ball Valve, One-Piece Type, 1/8" Tube O.D, 2500psi, BrassSBV120H1-S-2-BRASS : Superlok Ball Valve, One-Piece Type, 1/8" Tube O.D, 2500psi, BrassSBV120H1-S-2-BRASS : Superlok Ball Valve, One-Piece Type, 1/8" Tube O.D, 2500psi, BrassSBV120H1-S-2-BRASS : Superlok Ball Valve, One-Piece Type, 1/8" Tube O.D, 2500psi, Brass

SBV120H1-S-2-BRASS : Superlok Ball Valve, One-Piece Type, 1/8" Tube O.D, 2500psi, Brass

SuperlokSKU: SBV120H1-S-2-BRASS
1-2 Weeks
Price:
$36.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-2 Weeks
Factory Location Ventura, California
Port Size 1/8" Tube
Style One-Piece Type
Pressure Rating 2500
Operating Temp Range 50 to 150 F
Body Material Brass
Series SBV120H
Ball Seal PTFE
Ball Pattern On/Off
Flow Style Two-Way
Country of Manufacture South Korea
Ball Valve Type Standard

Description

The Superlok SBV120H Series One-Piece valves offer a simple design with a one-piece body, with tight and smooth low-torque operation. These valves have a one-piece ball stem, are panel mountable, and available in a variety of end connections as well as straight, angle, and 3-way flow patterns. Each valve is tested at the factory before it arrives at your door.
