SD1E-A3/H2S7A-12DT : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 12 VDC Deutsch, Port 3 Check, Free Flow 2 to 1
SD1E-A3/H2S7A-12DT : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 12 VDC Deutsch, Port 3 Check, Free Flow 2 to 1
SD1E-A3/H2S7A-12DT : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 12 VDC Deutsch, Port 3 Check, Free Flow 2 to 1
Roll over image to zoom in Click on image to zoom
SD1E-A3/H2S7A-12DT : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 12 VDC Deutsch, Port 3 Check, Free Flow 2 to 1SD1E-A3/H2S7A-12DT : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 12 VDC Deutsch, Port 3 Check, Free Flow 2 to 1SD1E-A3/H2S7A-12DT : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 12 VDC Deutsch, Port 3 Check, Free Flow 2 to 1

SD1E-A3/H2S7A-12DT : Argo DCV, 8GPM, 5100psi, 2P3W, C-8-3, 12 VDC Deutsch, Port 3 Check, Free Flow 2 to 1

Save $111.42
Argo-HytosSKU: SD1E-A3/H2S7A-12DT
Same Day
1
Price:
$110.99 $222.41

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Type Cartridge
Flow Rating 8
Pressure Rating 5100
Actuation Type Solenoid Operated
Spool Configuration Port 3 Checked, Free Flow from 2 to 1, 2S7
Cartridge Cavity C-8-3
Positions 2-Position
Way 3-Way
Coil Selection 12 VDC Deutsch
Coil Model Code C19B-01200E12A-4.9NA
Country of Manufacture Czech Republic
Height 1
Length 4.45
Width 1
Weight 1

Description

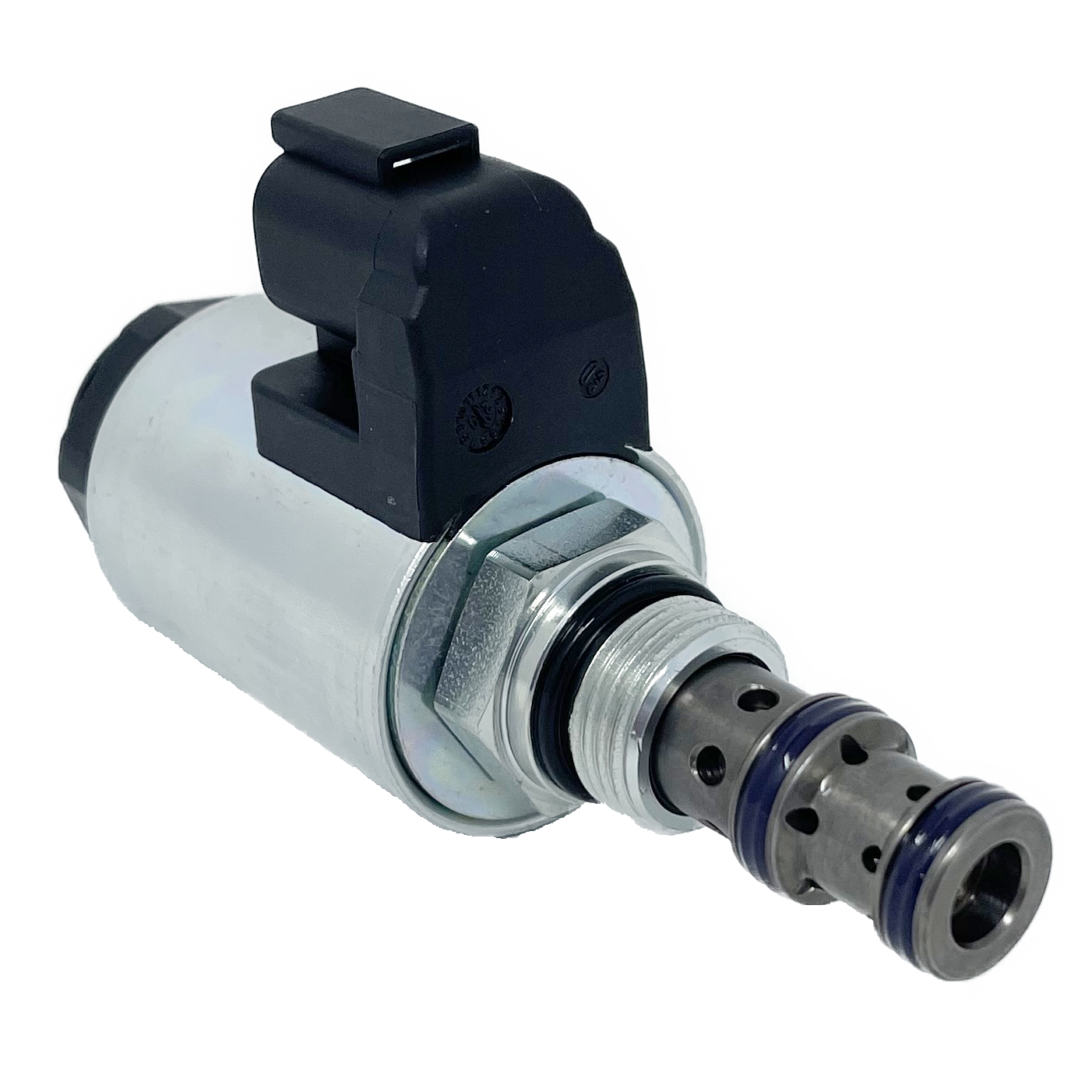

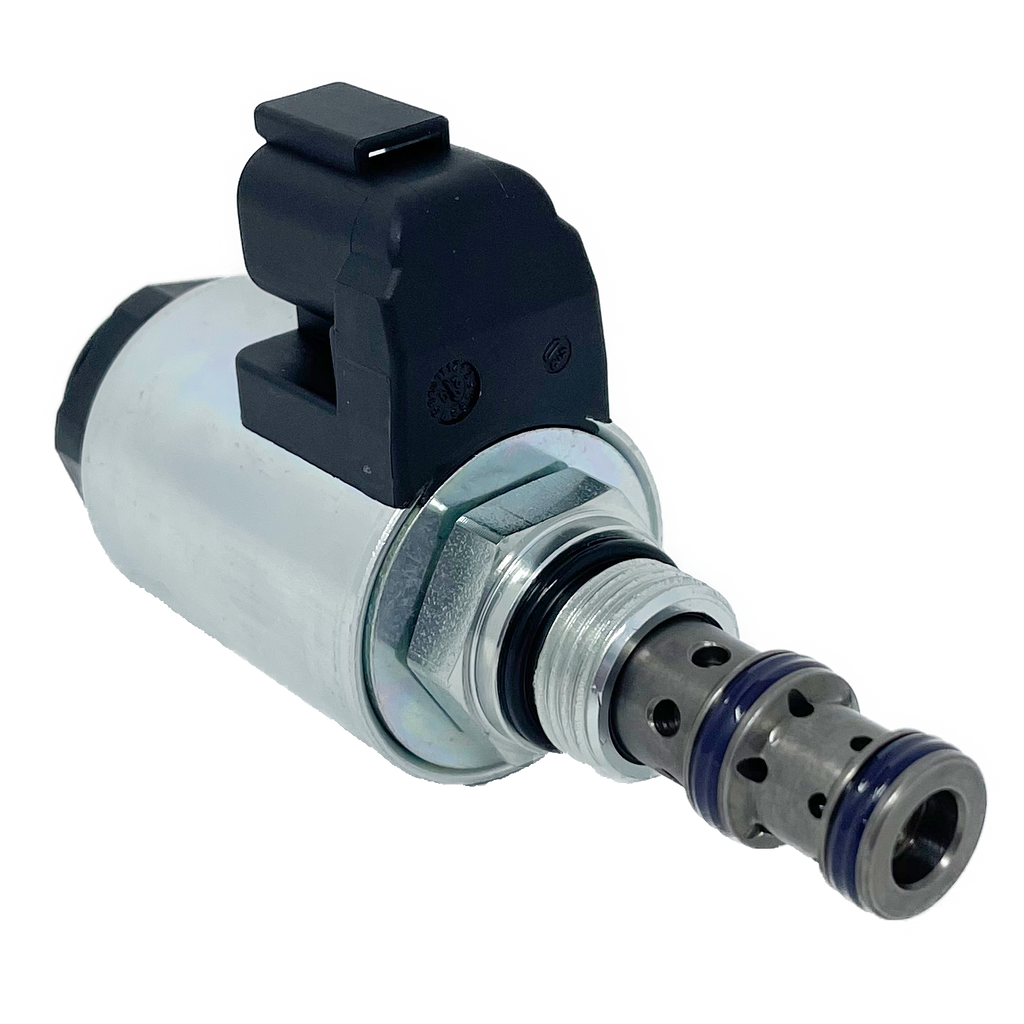

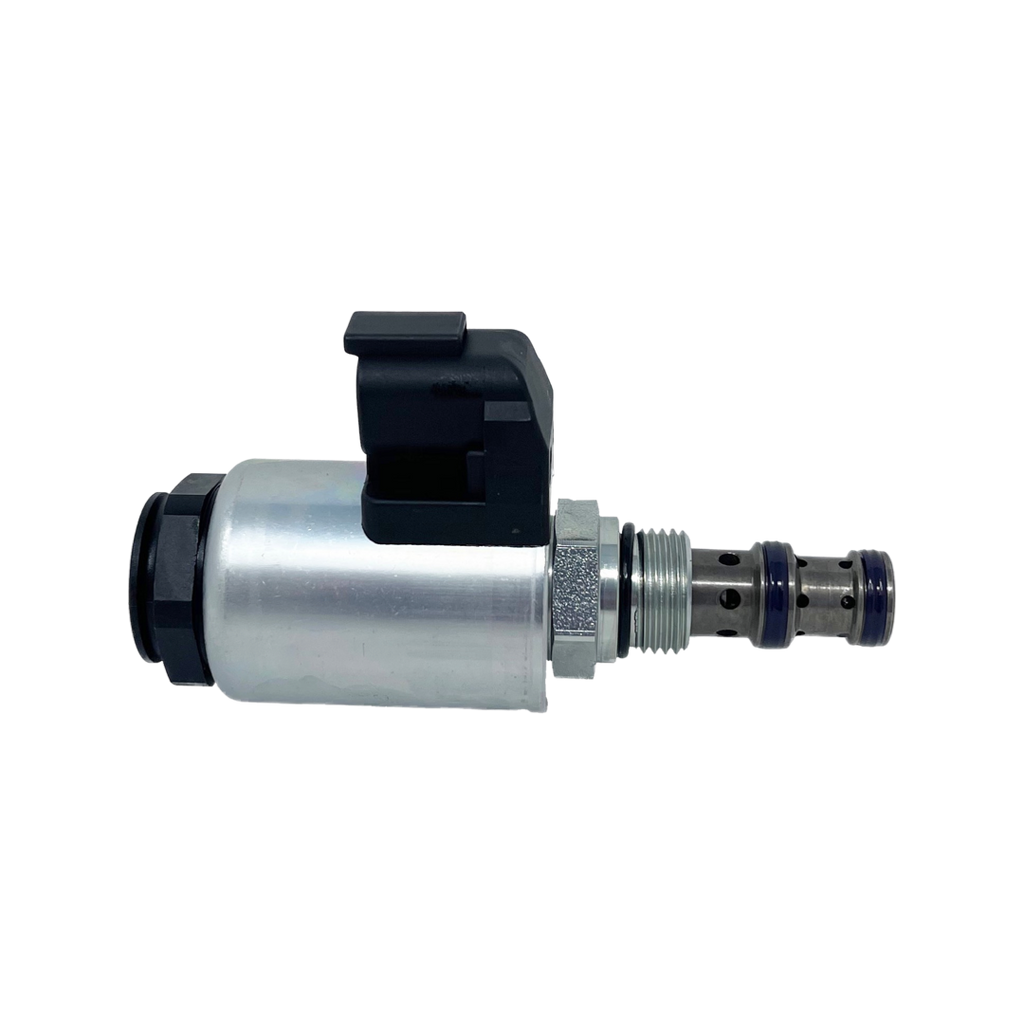

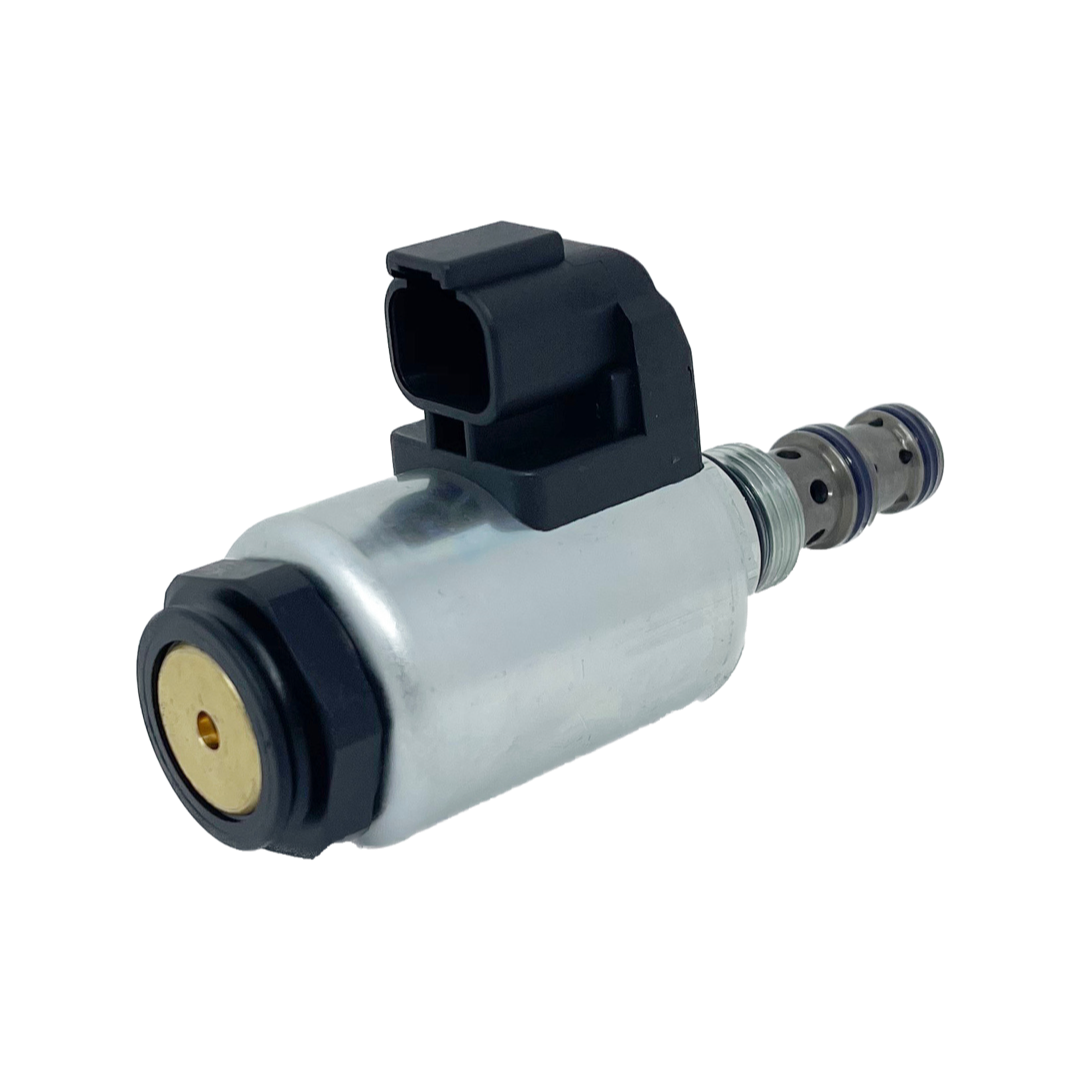

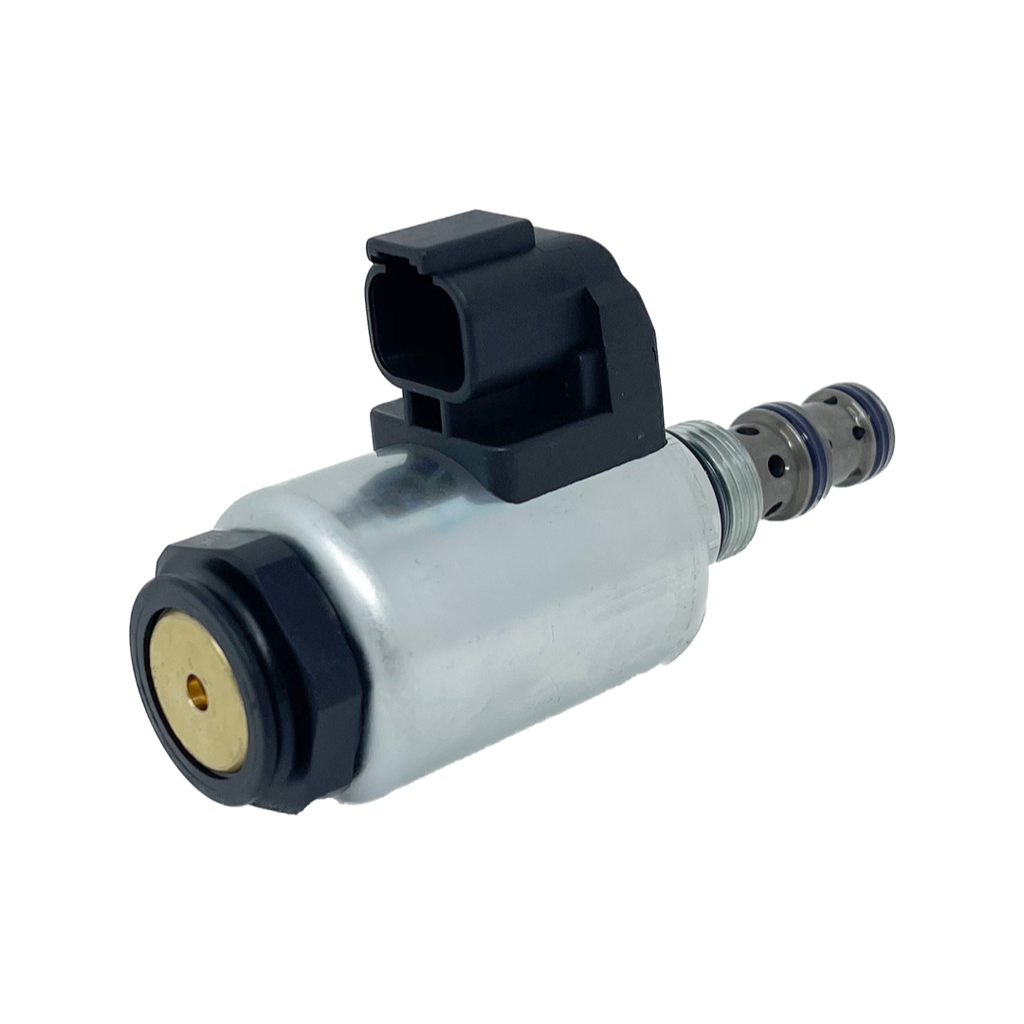

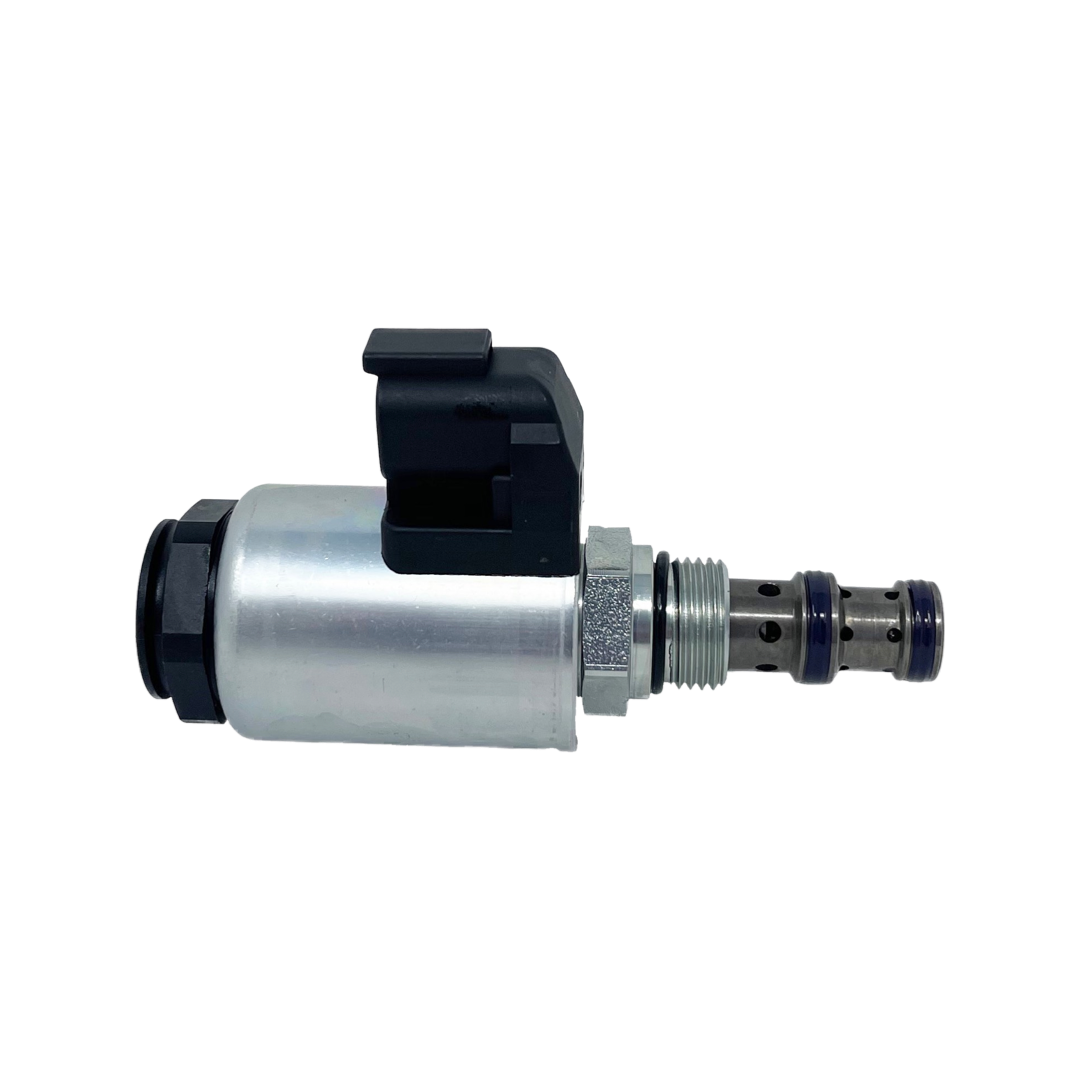

The Argo-Hytos 3-Way, 2-Position, high pressure, direct-acting cartridge valve is made with hardened precision parts, and is used for bidirectional flow to actuators with leak-free closing in both directions.
