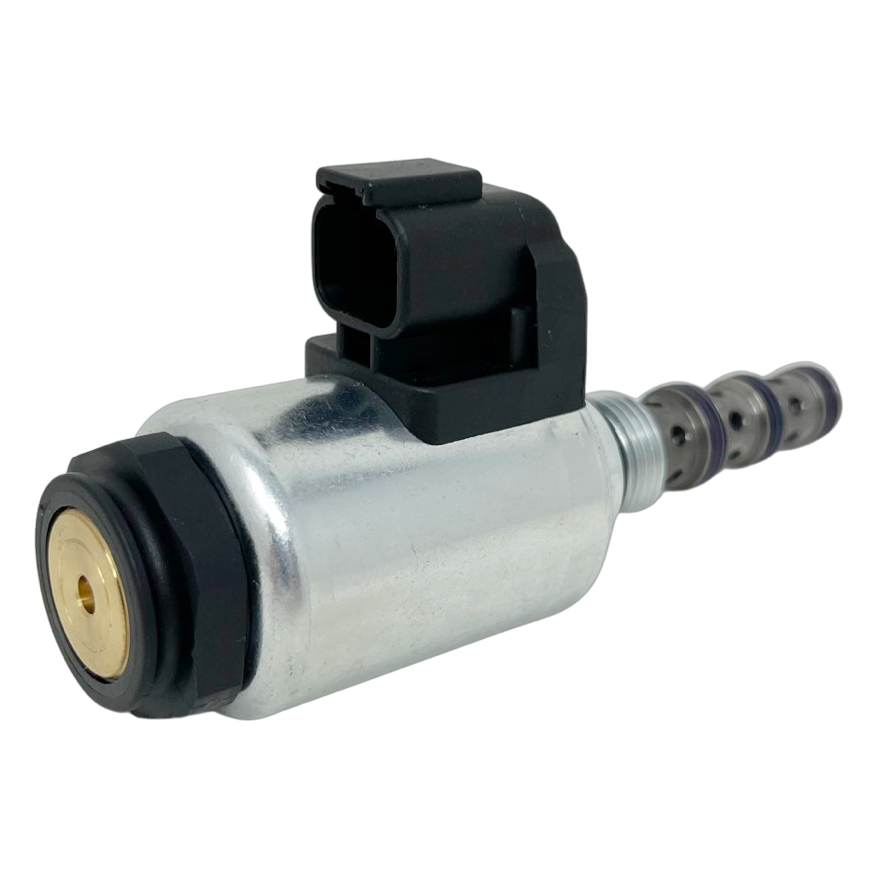

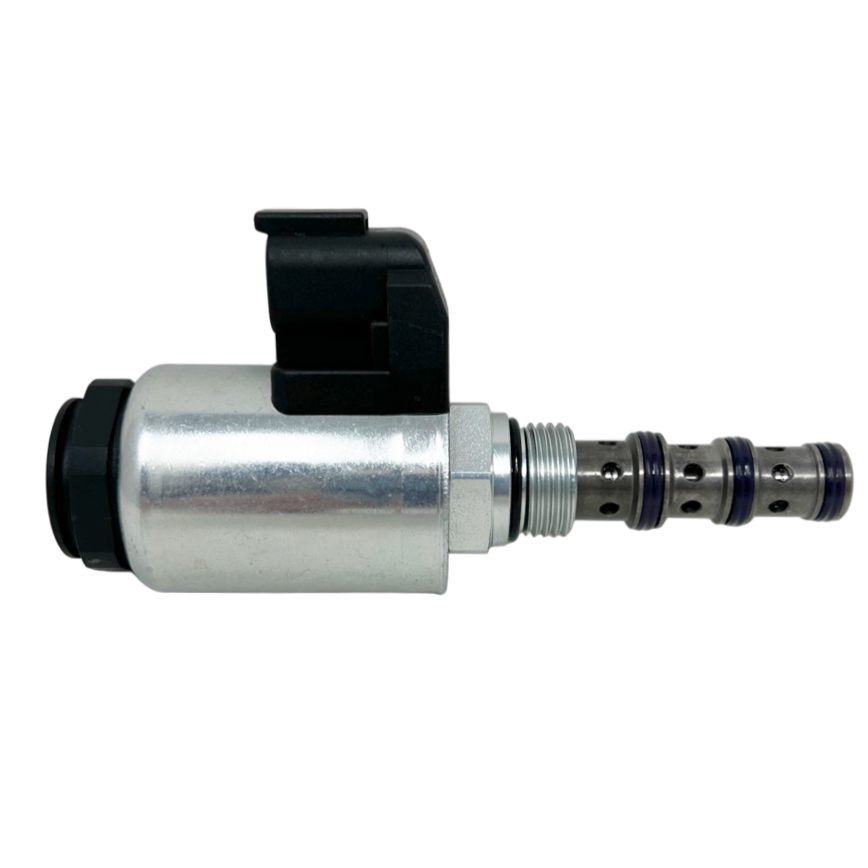

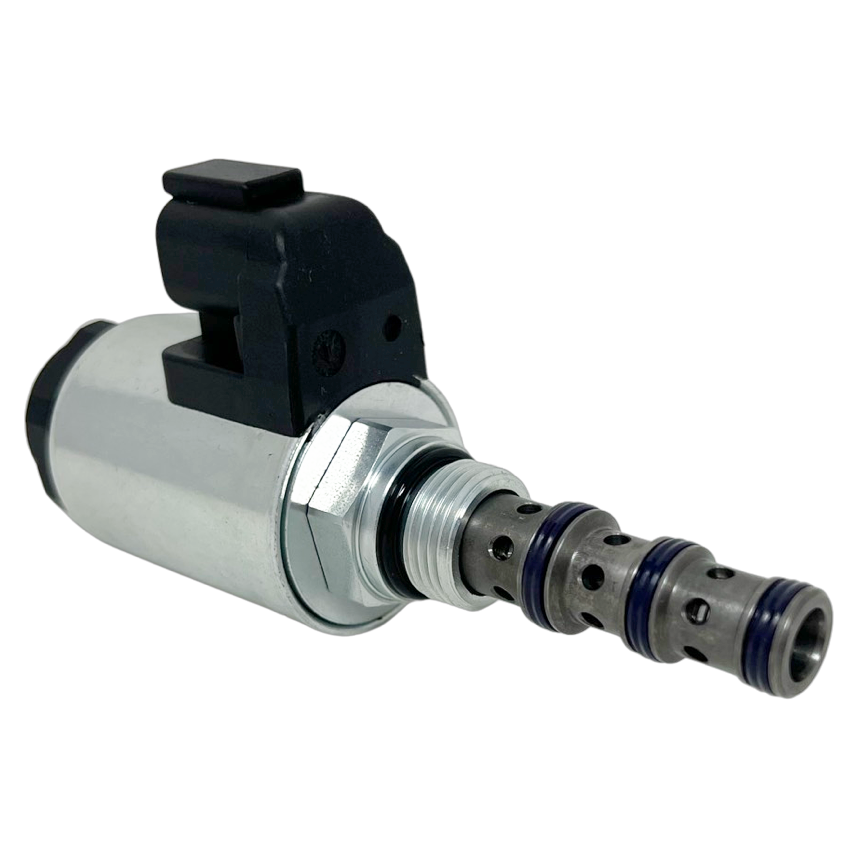

SD2E-A4/H2R21A-12DT : Argo DCV, 8GPM, 5100psi, 2P4W, C-8-4, 12 VDC Deutsch, Port 3 to 2, Port 4 to 1 Neutral
SD2E-A4/H2R21A-12DT : Argo DCV, 8GPM, 5100psi, 2P4W, C-8-4, 12 VDC Deutsch, Port 3 to 2, Port 4 to 1 Neutral
SD2E-A4/H2R21A-12DT : Argo DCV, 8GPM, 5100psi, 2P4W, C-8-4, 12 VDC Deutsch, Port 3 to 2, Port 4 to 1 Neutral
Roll over image to zoom in Click on image to zoom
SD2E-A4/H2R21A-12DT : Argo DCV, 8GPM, 5100psi, 2P4W, C-8-4, 12 VDC Deutsch, Port 3 to 2, Port 4 to 1 NeutralSD2E-A4/H2R21A-12DT : Argo DCV, 8GPM, 5100psi, 2P4W, C-8-4, 12 VDC Deutsch, Port 3 to 2, Port 4 to 1 NeutralSD2E-A4/H2R21A-12DT : Argo DCV, 8GPM, 5100psi, 2P4W, C-8-4, 12 VDC Deutsch, Port 3 to 2, Port 4 to 1 Neutral

SD2E-A4/H2R21A-12DT : Argo DCV, 8GPM, 5100psi, 2P4W, C-8-4, 12 VDC Deutsch, Port 3 to 2, Port 4 to 1 Neutral

Save $81.73
Argo-HytosSKU: SD2E-A4/H2R21A-12DT
Same Day
1
Price:
$81.99 $163.72

Product Details

Data Sheet

Download Datasheet

Usually Ships Within Same Day
Factory Location Bowling Green, Ohio
Solid Model

Click here to download

Valve Type Cartridge
Flow Rating 8
Pressure Rating 5100
Actuation Type Solenoid Operated
Spool Configuration Port 3 to 2, Port 4 to 1 Neutral, 2R21
Cartridge Cavity C-8-4
Positions 2-Position
Way 4-Way
Coil Selection 12 VDC Deutsch
Coil Model Code C19B-01200E12A-4.9NA
Country of Manufacture Czech Republic
Height 1
Length 4.9
Width 1
Weight 1

Description

The Argo-Hytos 4-Way, 2-Position, bi-directional, solenoid operated, direct-acting cartridge valve is made with hardened precision parts, and is used to direct flow to actuators. Coil interchangeability between all SD*A cartridges.
