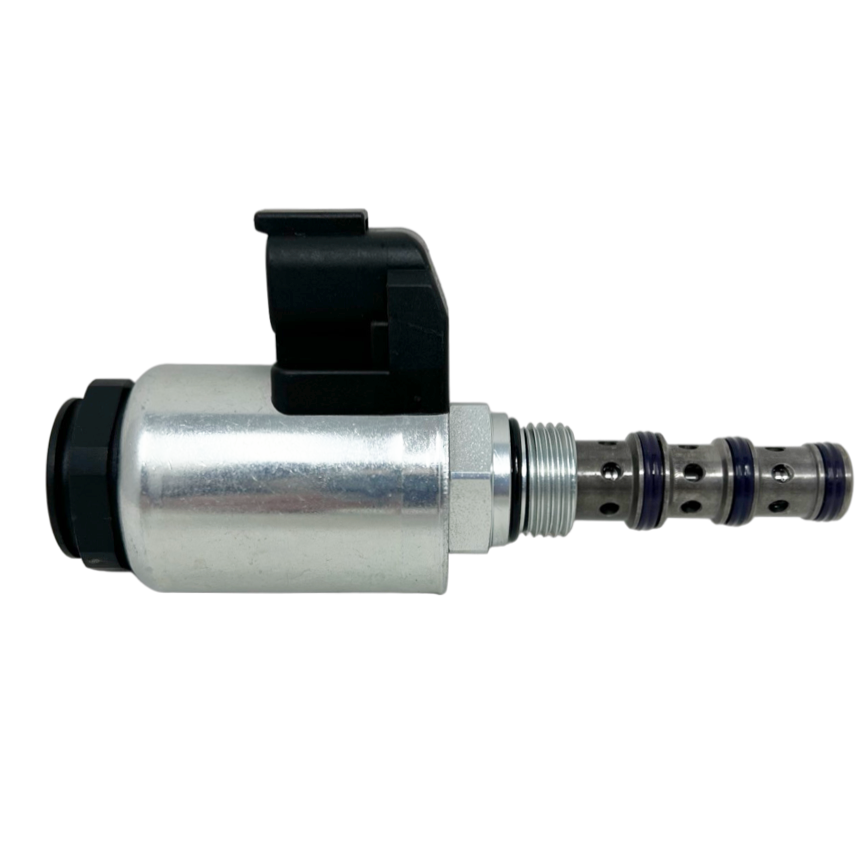

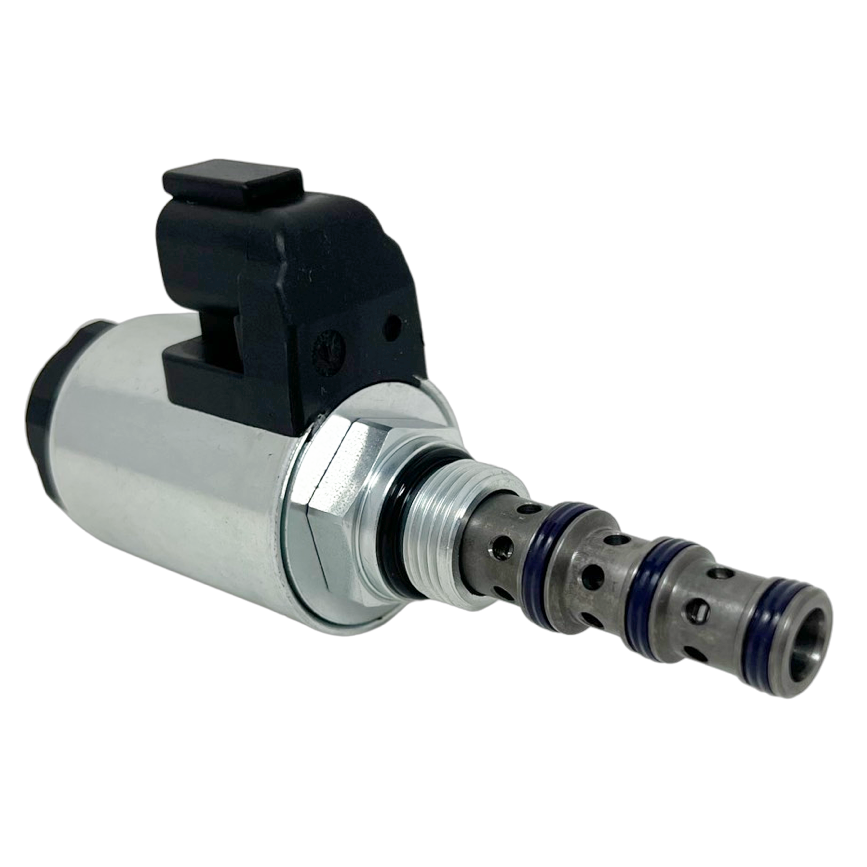

SD2E-A4/H2Z11A-24DT : Argo DCV, 8GPM, 5100psi, 2P4W, C-8-2, 24 VDC Deutsch, All Blocked Neutral
SD2E-A4/H2Z11A-24DT : Argo DCV, 8GPM, 5100psi, 2P4W, C-8-2, 24 VDC Deutsch, All Blocked Neutral
SD2E-A4/H2Z11A-24DT : Argo DCV, 8GPM, 5100psi, 2P4W, C-8-2, 24 VDC Deutsch, All Blocked Neutral
Roll over image to zoom in Click on image to zoom
SD2E-A4/H2Z11A-24DT : Argo DCV, 8GPM, 5100psi, 2P4W, C-8-2, 24 VDC Deutsch, All Blocked NeutralSD2E-A4/H2Z11A-24DT : Argo DCV, 8GPM, 5100psi, 2P4W, C-8-2, 24 VDC Deutsch, All Blocked NeutralSD2E-A4/H2Z11A-24DT : Argo DCV, 8GPM, 5100psi, 2P4W, C-8-2, 24 VDC Deutsch, All Blocked Neutral

SD2E-A4/H2Z11A-24DT : Argo DCV, 8GPM, 5100psi, 2P4W, C-8-2, 24 VDC Deutsch, All Blocked Neutral

Save $81.73
Argo-HytosSKU: SD2E-A4/H2Z11A-24DT
Same Day
6
Price:
$81.99 $163.72

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Type Cartridge
Flow Rating 8
Pressure Rating 5100
Actuation Type Solenoid Operated
Spool Configuration All Ports Blocked Neutral, 2Z11
Cartridge Cavity C-8-2
Positions 2-Position
Way 4-Way
Coil Selection 24 VDC Deutsch
Coil Model Code C19B-02400E12A-20.8NA
Country of Manufacture Czech Republic
Height 1
Length 4.9
Width 1
Weight 1

Description

The Argo-Hytos 4-Way, 2-Position, bi-directional, solenoid operated, direct-acting cartridge valve is made with hardened precision parts, and is used to direct flow to actuators. Coil interchangeability between all SD*A cartridges.
