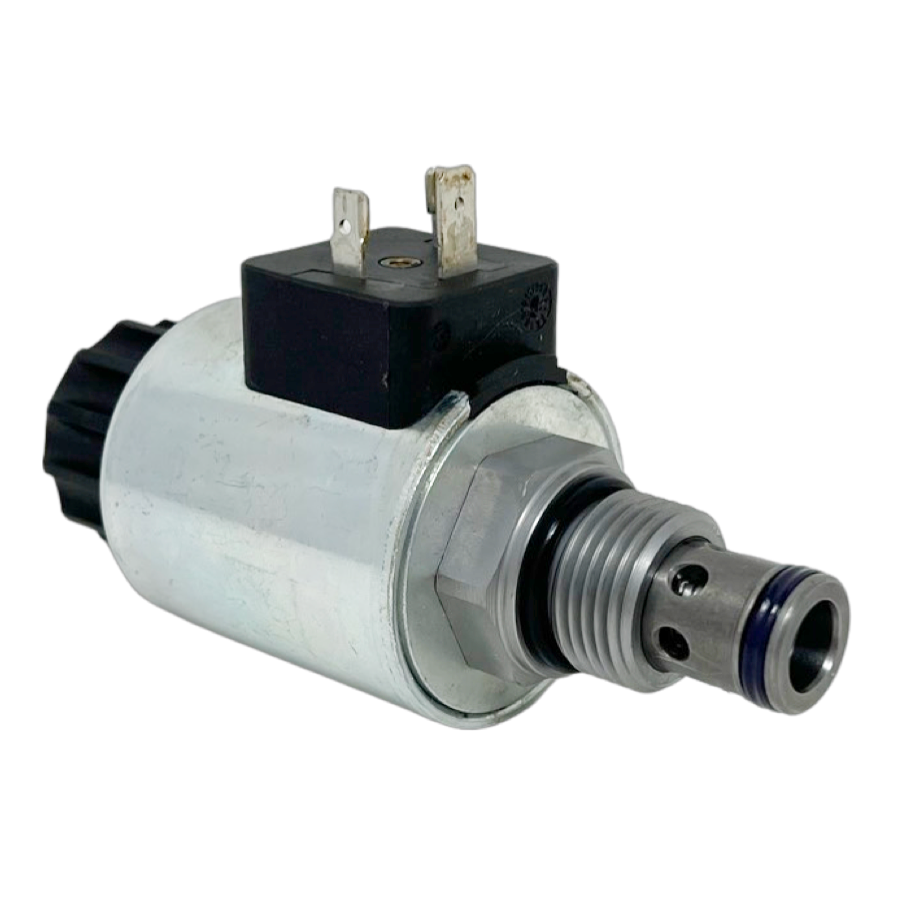

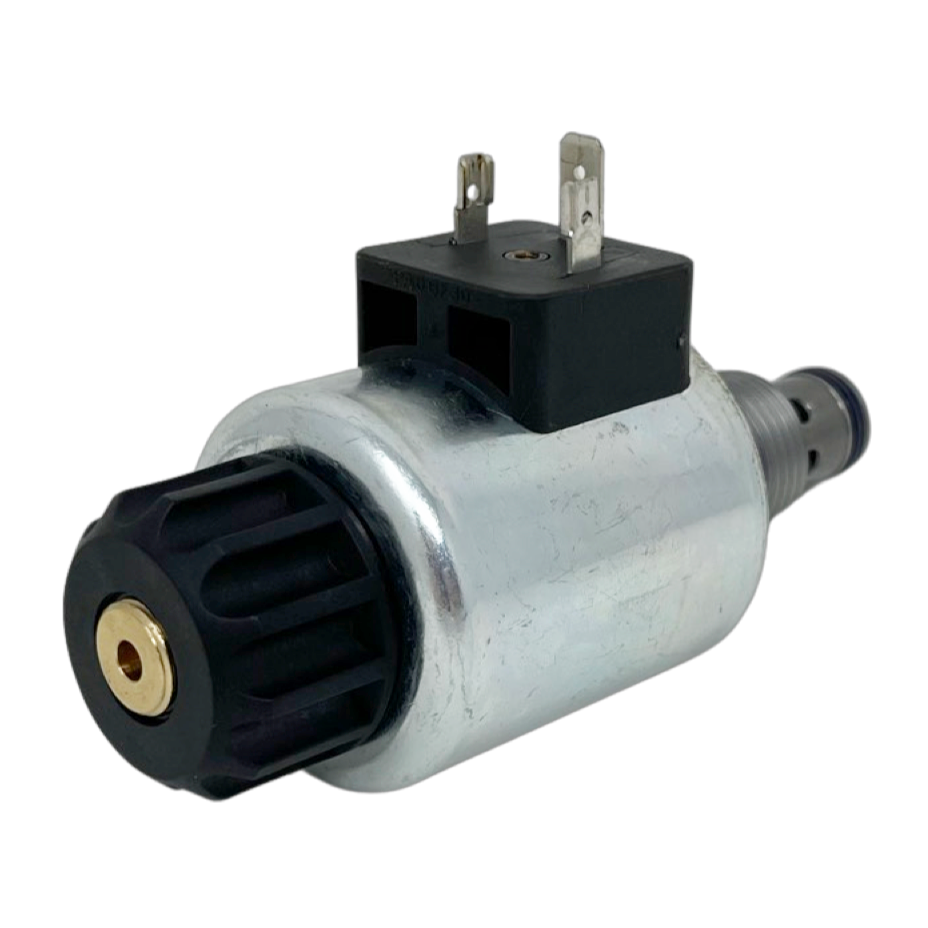

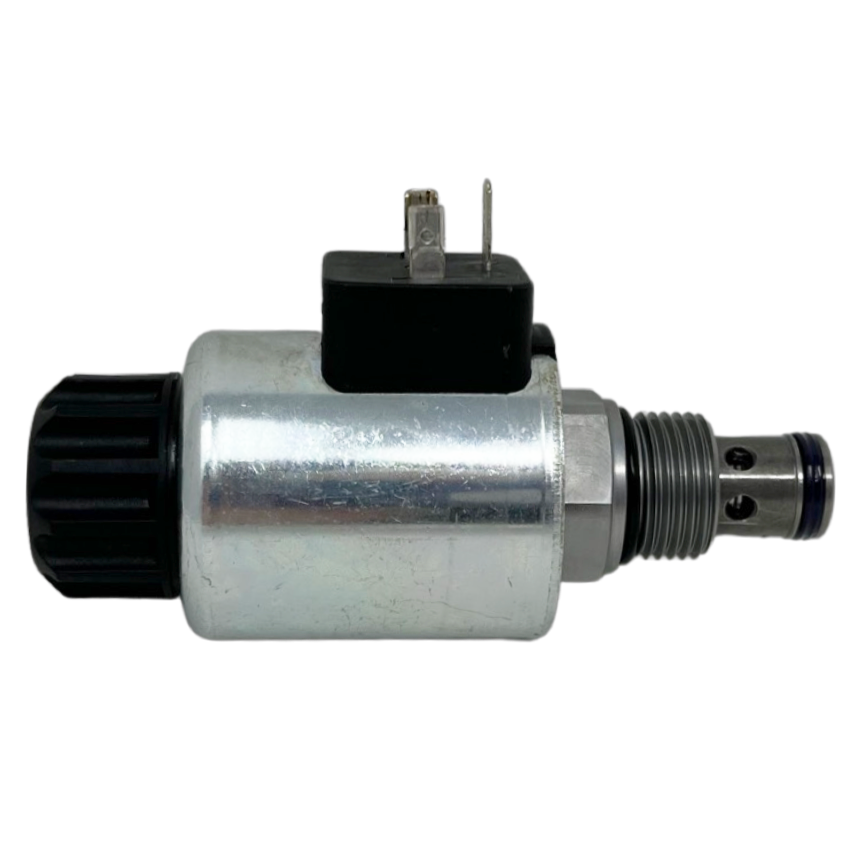

SD2E-B2/H2I11B-24DIN : Argo DCV, 16GPM, 5100psi, 2P2W, C-10-2, 24 VDC DIN, Free Flow 1 to 2
SD2E-B2/H2I11B-24DIN : Argo DCV, 16GPM, 5100psi, 2P2W, C-10-2, 24 VDC DIN, Free Flow 1 to 2
SD2E-B2/H2I11B-24DIN : Argo DCV, 16GPM, 5100psi, 2P2W, C-10-2, 24 VDC DIN, Free Flow 1 to 2
Roll over image to zoom in Click on image to zoom
SD2E-B2/H2I11B-24DIN : Argo DCV, 16GPM, 5100psi, 2P2W, C-10-2, 24 VDC DIN, Free Flow 1 to 2SD2E-B2/H2I11B-24DIN : Argo DCV, 16GPM, 5100psi, 2P2W, C-10-2, 24 VDC DIN, Free Flow 1 to 2SD2E-B2/H2I11B-24DIN : Argo DCV, 16GPM, 5100psi, 2P2W, C-10-2, 24 VDC DIN, Free Flow 1 to 2

SD2E-B2/H2I11B-24DIN : Argo DCV, 16GPM, 5100psi, 2P2W, C-10-2, 24 VDC DIN, Free Flow 1 to 2

Save $81.09
Argo-HytosSKU: SD2E-B2/H2I11B-24DIN
Same Day
17
Price:
$80.99 $162.08

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Type Cartridge
Flow Rating 16
Pressure Rating 5100
Actuation Type Solenoid Operated
Spool Configuration Thru flow from 1 to 2, 2I11
Cartridge Cavity C-10-2
Positions 2-Position
Way 2-Way
Coil Selection 24 VDC DIN Coil
Coil Model Code C22B-02400E1-18.6NA
Country of Manufacture Czech Republic
Height 1
Length 4.5
Width 1
Weight 1

Description

The Argo-Hytos 2-Way, 2-Position, bi-directional, solenoid operated, direct-acting cartridge valve is made with hardened precision parts, and is used to direct flow to actuators. Coil interchangeability between all SD*A cartridges. C-8-2 operating cavity.
