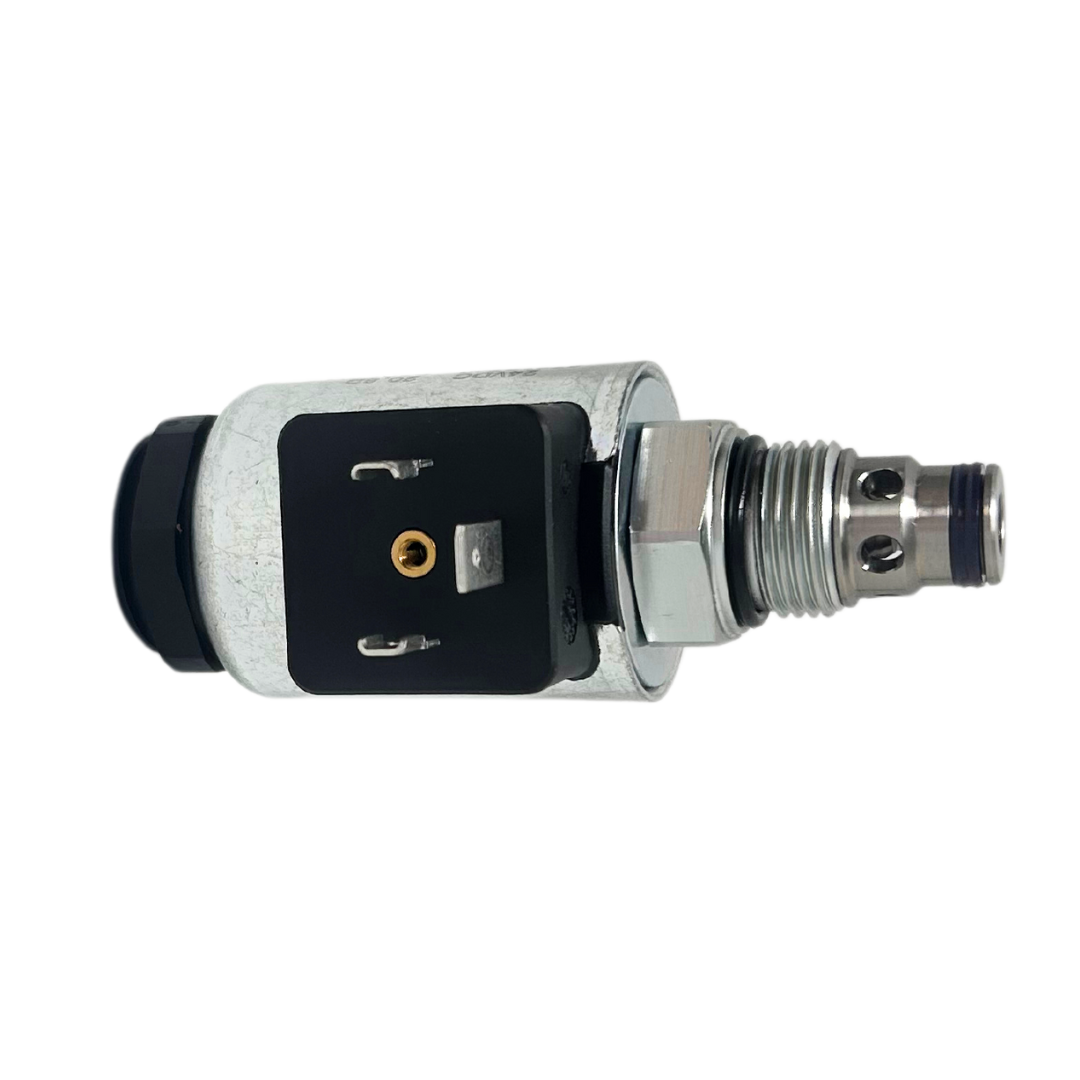

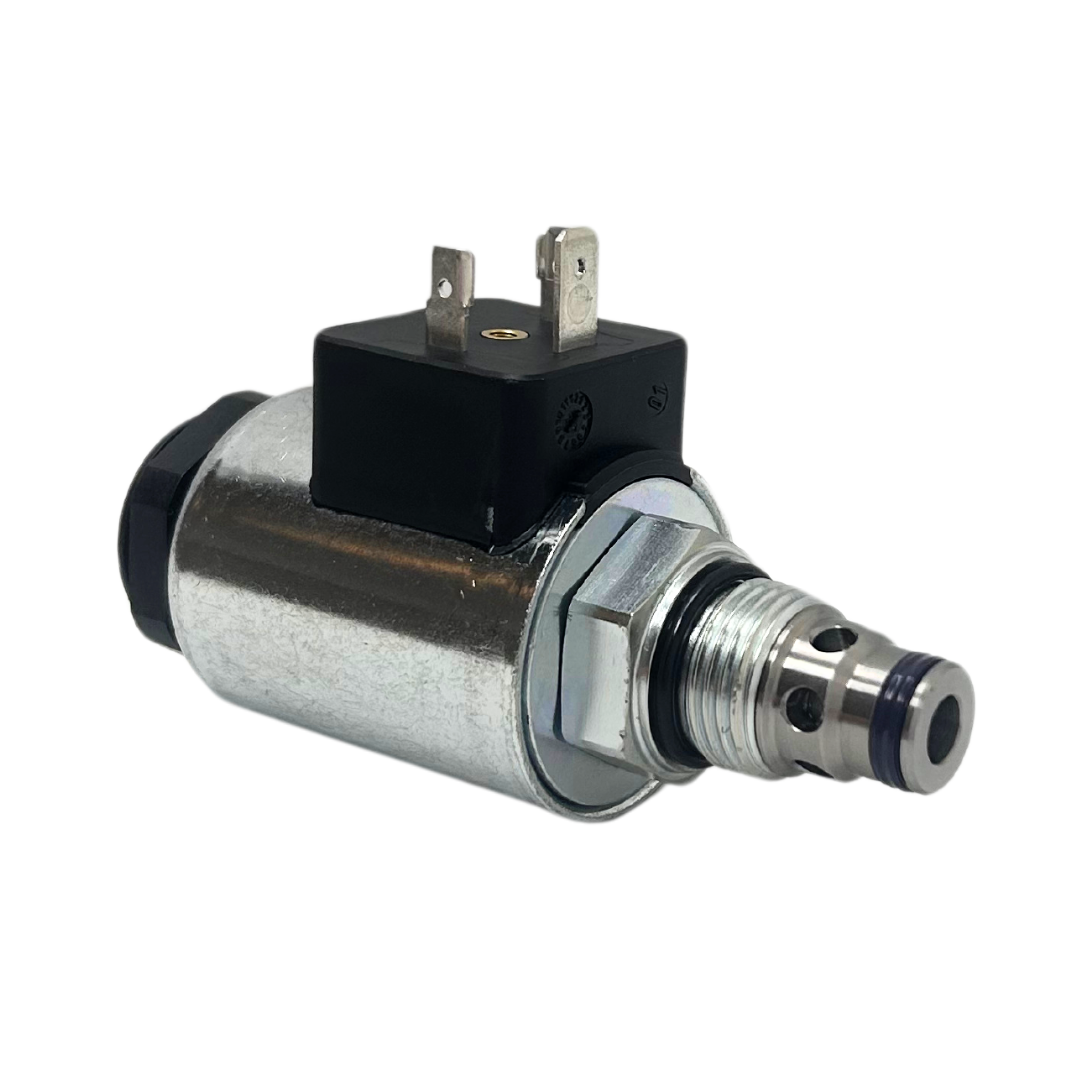

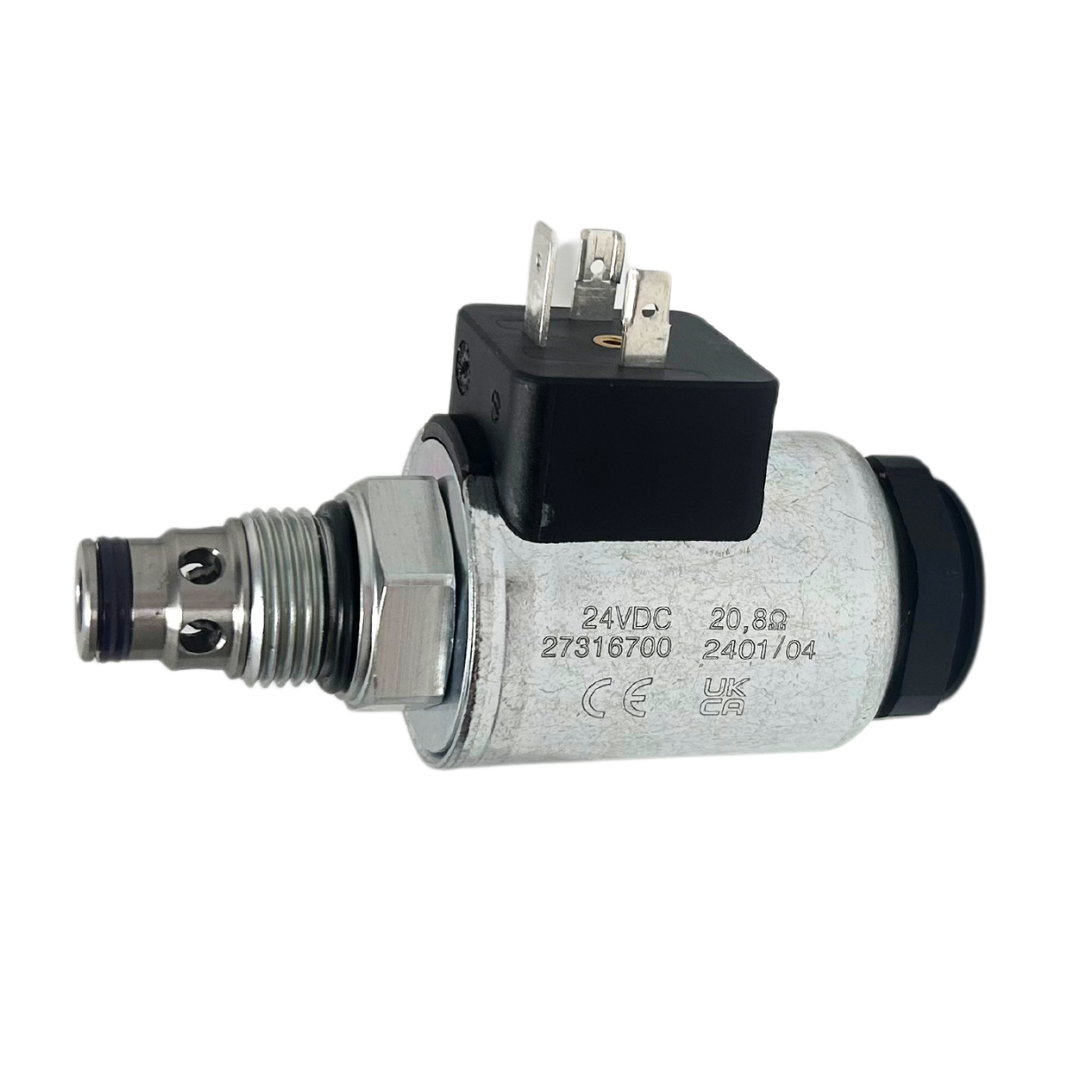

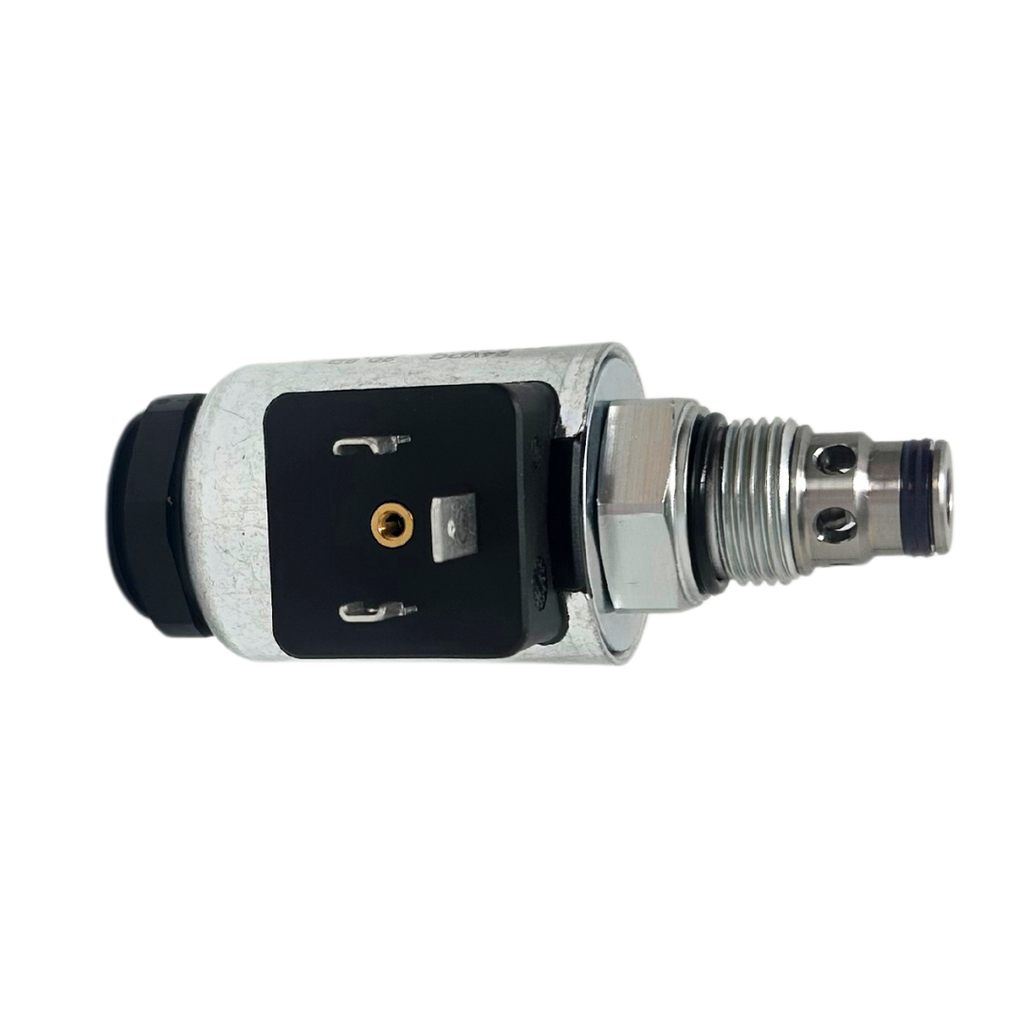

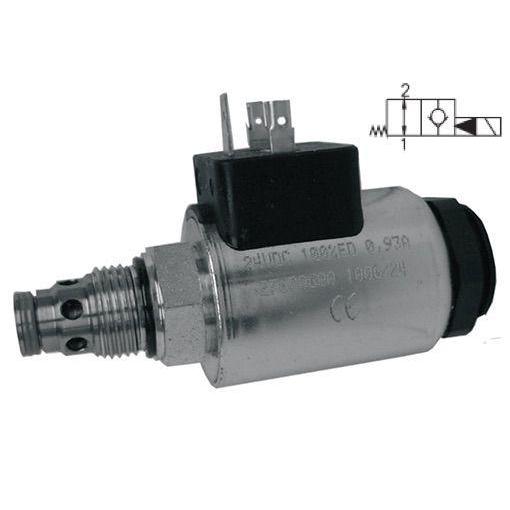

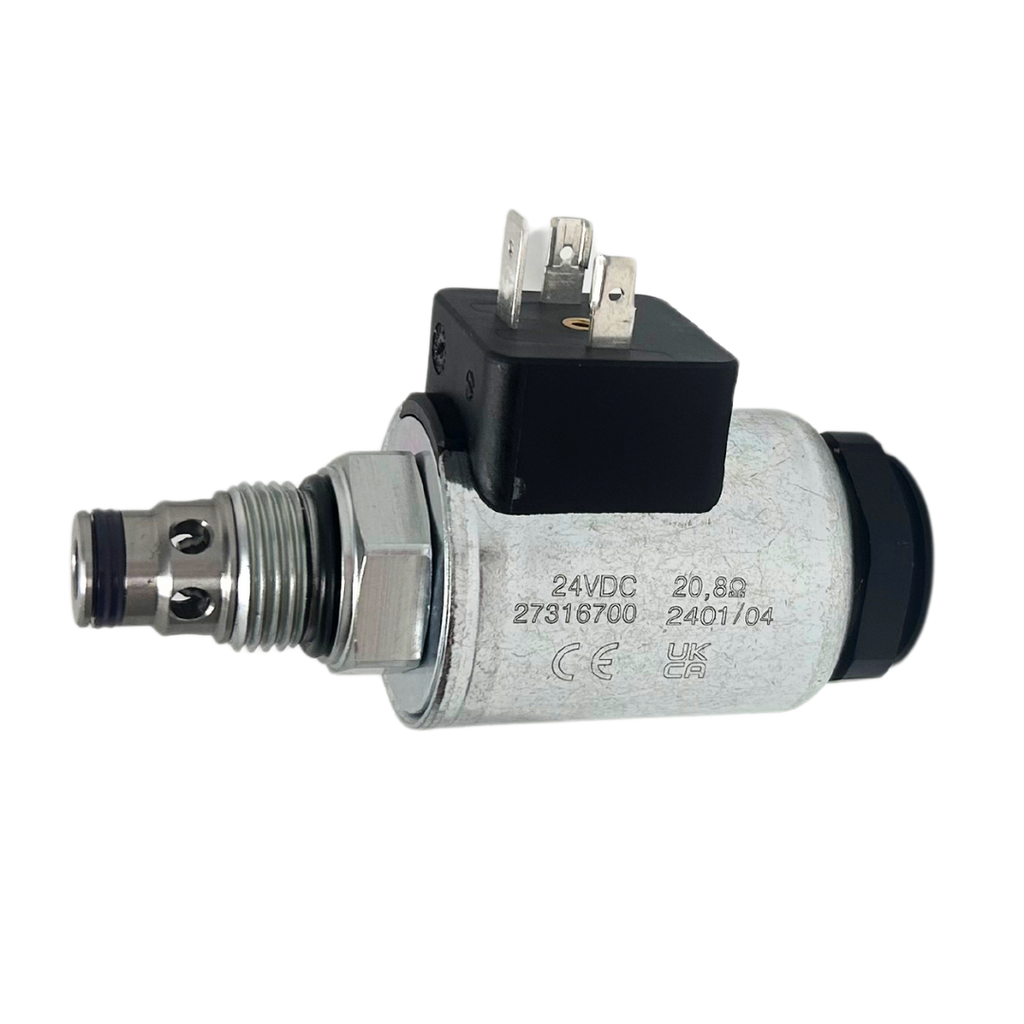

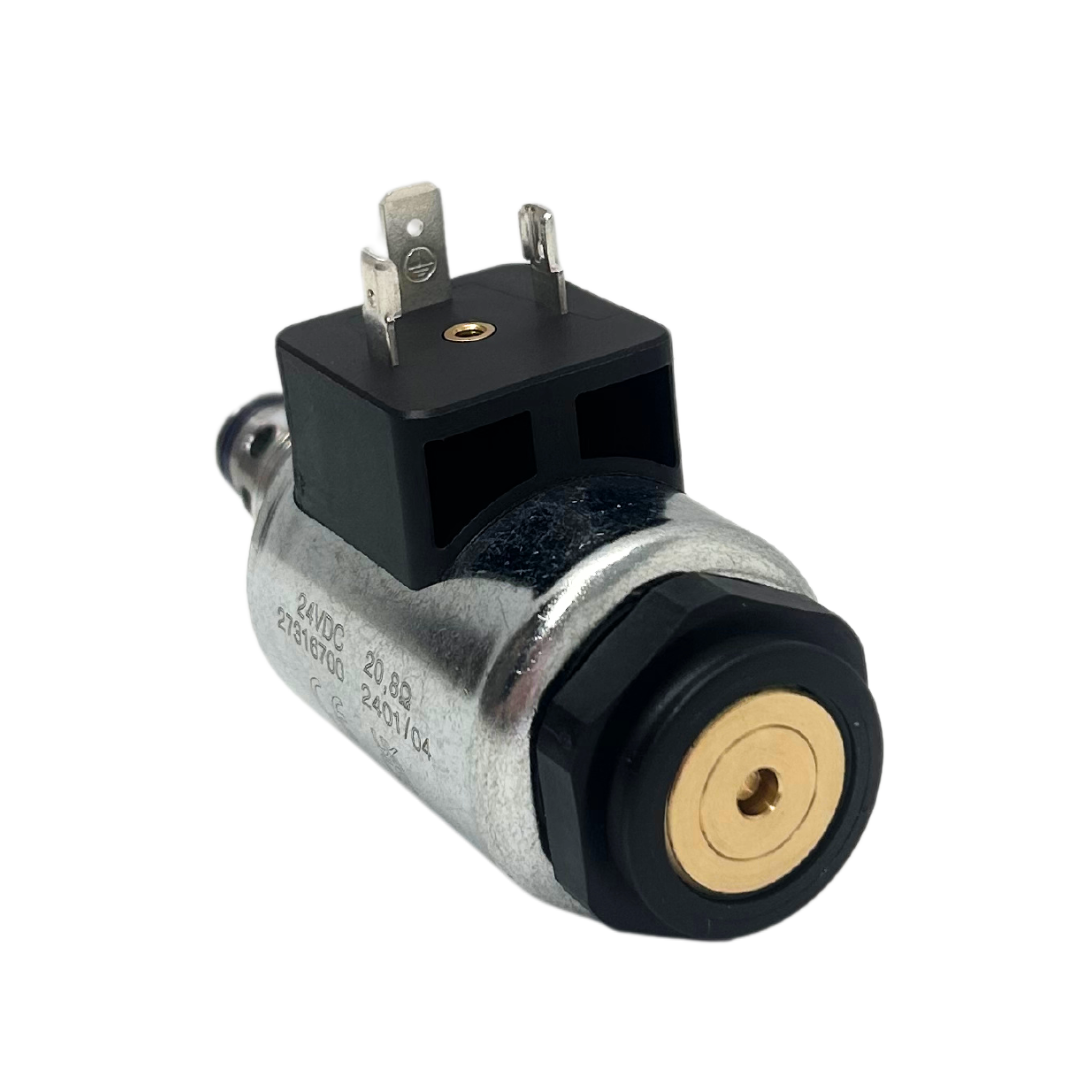

SD3E-A2/H2O2A-24DIN : Argo DCV, 8GPM, 5100psi, 2P2W, C-8-2, 24 VDC DIN, Flow 1 to 2 Neutral
SD3E-A2/H2O2A-24DIN : Argo DCV, 8GPM, 5100psi, 2P2W, C-8-2, 24 VDC DIN, Flow 1 to 2 Neutral
SD3E-A2/H2O2A-24DIN : Argo DCV, 8GPM, 5100psi, 2P2W, C-8-2, 24 VDC DIN, Flow 1 to 2 Neutral
SD3E-A2/H2O2A-24DIN : Argo DCV, 8GPM, 5100psi, 2P2W, C-8-2, 24 VDC DIN, Flow 1 to 2 Neutral
SD3E-A2/H2O2A-24DIN : Argo DCV, 8GPM, 5100psi, 2P2W, C-8-2, 24 VDC DIN, Flow 1 to 2 Neutral
Roll over image to zoom in Click on image to zoom
SD3E-A2/H2O2A-24DIN : Argo DCV, 8GPM, 5100psi, 2P2W, C-8-2, 24 VDC DIN, Flow 1 to 2 NeutralSD3E-A2/H2O2A-24DIN : Argo DCV, 8GPM, 5100psi, 2P2W, C-8-2, 24 VDC DIN, Flow 1 to 2 NeutralSD3E-A2/H2O2A-24DIN : Argo DCV, 8GPM, 5100psi, 2P2W, C-8-2, 24 VDC DIN, Flow 1 to 2 NeutralSD3E-A2/H2O2A-24DIN : Argo DCV, 8GPM, 5100psi, 2P2W, C-8-2, 24 VDC DIN, Flow 1 to 2 NeutralSD3E-A2/H2O2A-24DIN : Argo DCV, 8GPM, 5100psi, 2P2W, C-8-2, 24 VDC DIN, Flow 1 to 2 Neutral

SD3E-A2/H2O2A-24DIN : Argo DCV, 8GPM, 5100psi, 2P2W, C-8-2, 24 VDC DIN, Flow 1 to 2 Neutral

Save $86.96
Argo-HytosSKU: SD3E-A2/H2O2A-24DIN
Same Day
2
Price:
$85.99 $172.95

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Type Cartridge
Flow Rating 8
Pressure Rating 5100
Actuation Type Solenoid Operated
Spool Configuration Thru flow from 1 to 2 in Neutral, 2O2
Cartridge Cavity C-8-2
Positions 2-Position
Way 2-Way
Coil Selection 24 VDC DIN Coil
Coil Model Code C19B-02400E1-20.8NA
Country of Manufacture Czech Republic
Height 1
Length 3.84
Width 1
Weight 1

Description

The Argo-Hytos 2-Way, 2-Position, bi-directional, solenoid operated, direct-acting cartridge valve is made with hardened precision parts, and is used to direct flow to actuators. Coil interchangeability between all SD*A cartridges.
