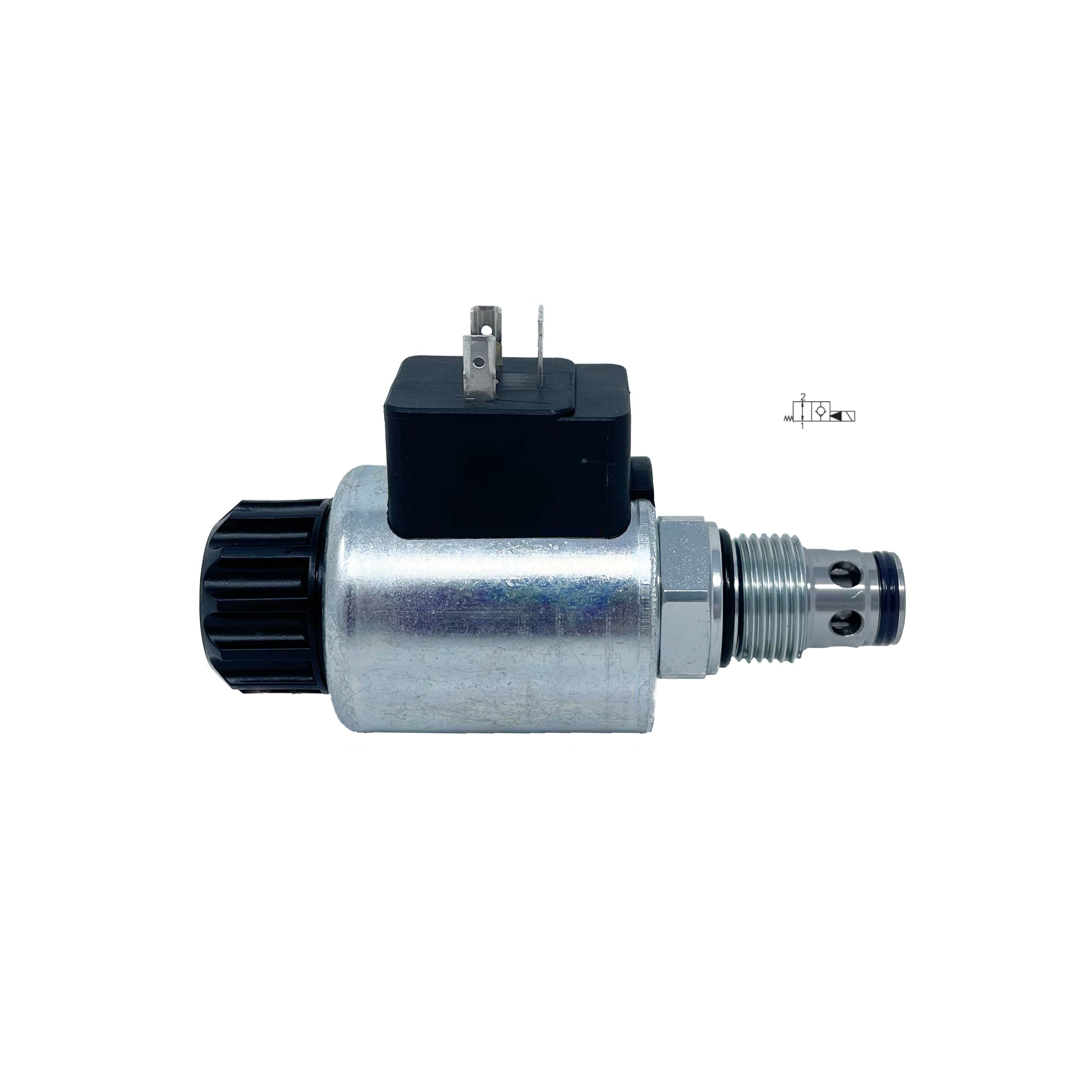

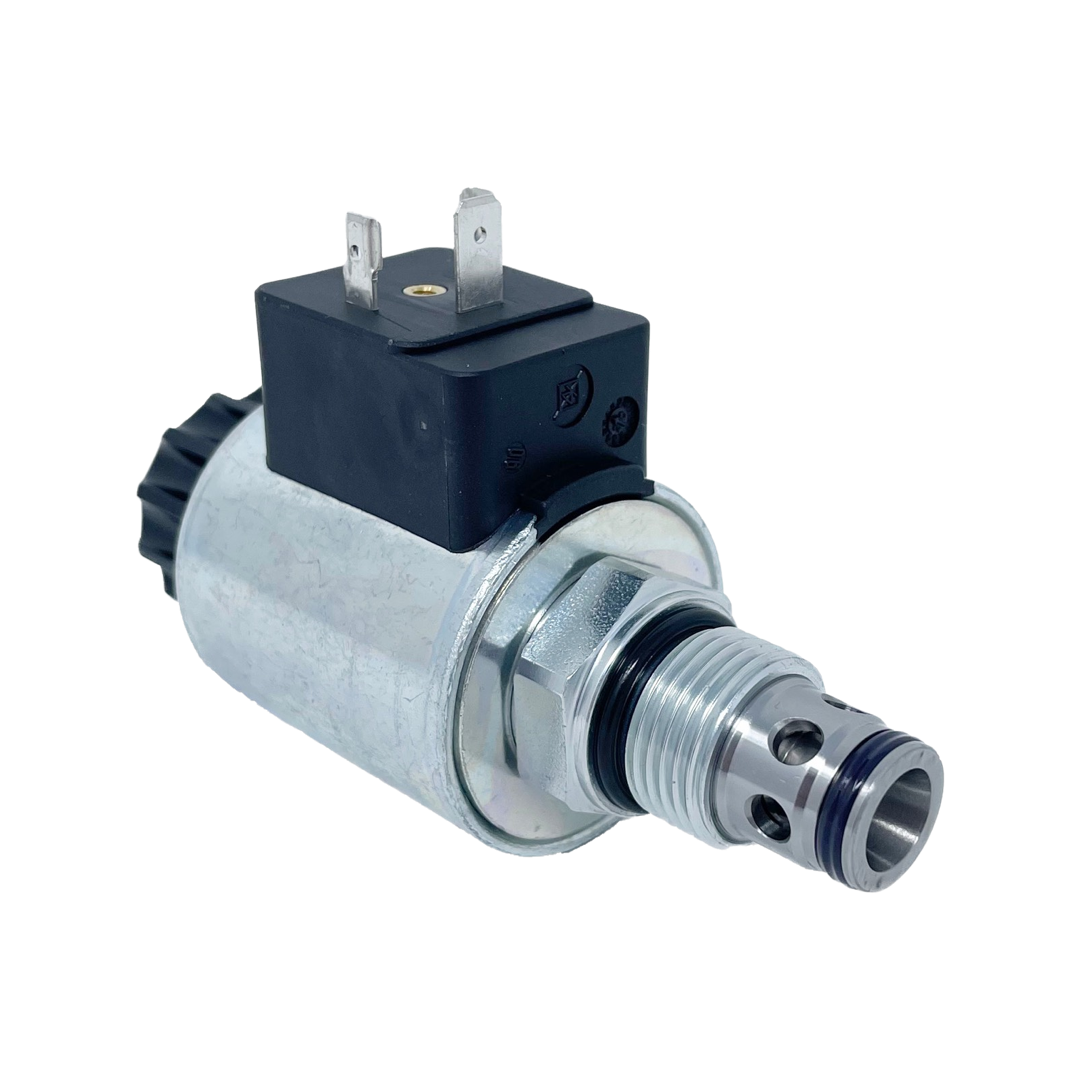

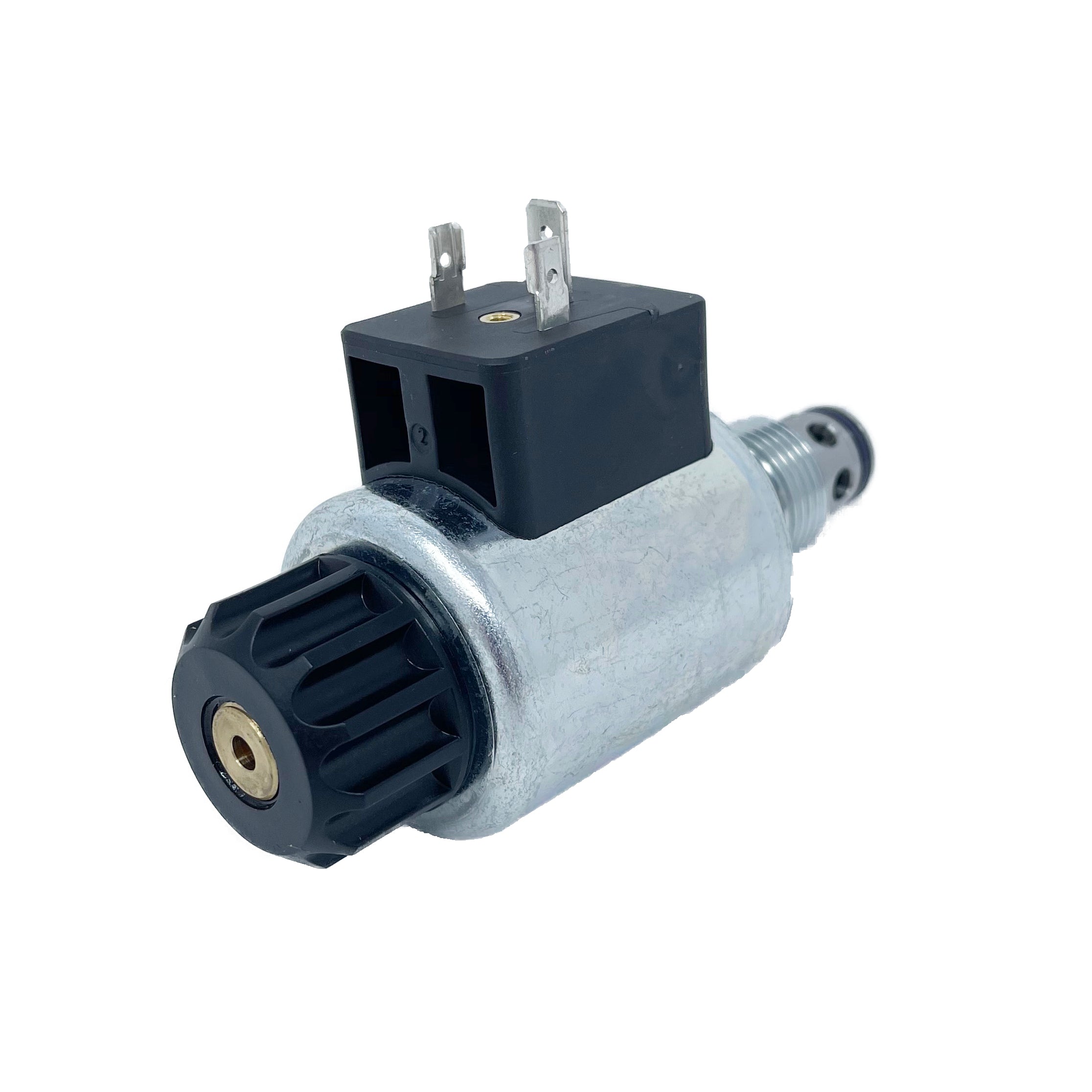

SD3E-B2/H2O2A24DIN : Argo DCV, 16GPM, 5100psi, 2P2W, C-10-2, 24 VDC DIN, Flow 1 to 2 Neutral
SD3E-B2/H2O2A24DIN : Argo DCV, 16GPM, 5100psi, 2P2W, C-10-2, 24 VDC DIN, Flow 1 to 2 Neutral
SD3E-B2/H2O2A24DIN : Argo DCV, 16GPM, 5100psi, 2P2W, C-10-2, 24 VDC DIN, Flow 1 to 2 Neutral
Roll over image to zoom in Click on image to zoom
SD3E-B2/H2O2A24DIN : Argo DCV, 16GPM, 5100psi, 2P2W, C-10-2, 24 VDC DIN, Flow 1 to 2 NeutralSD3E-B2/H2O2A24DIN : Argo DCV, 16GPM, 5100psi, 2P2W, C-10-2, 24 VDC DIN, Flow 1 to 2 NeutralSD3E-B2/H2O2A24DIN : Argo DCV, 16GPM, 5100psi, 2P2W, C-10-2, 24 VDC DIN, Flow 1 to 2 Neutral

SD3E-B2/H2O2A24DIN : Argo DCV, 16GPM, 5100psi, 2P2W, C-10-2, 24 VDC DIN, Flow 1 to 2 Neutral

Save $103.59
Argo-HytosSKU: SD3E-B2/H2O2A24DIN
Same Day
7
Price:
$103.99 $207.58

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Type Cartridge
Flow Rating 16
Pressure Rating 5100
Actuation Type Solenoid Operated
Spool Configuration Thru flow from 1 to 2 in Neutral, 2O2
Cartridge Cavity C-10-2
Positions 2-Position
Way 2-Way
Coil Selection 24 VDC DIN Coil
Coil Model Code C22B-02400E1-18.6NA
Country of Manufacture Czech Republic
Height 1
Length 3.84
Width 1
Weight 1

Description

The Argo-Hytos 2-Way, 2-Position, bi-directional, solenoid operated, direct-acting cartridge valve is made with hardened precision parts, and is used to direct flow to actuators. Coil interchangeability between all SD*A cartridges.
