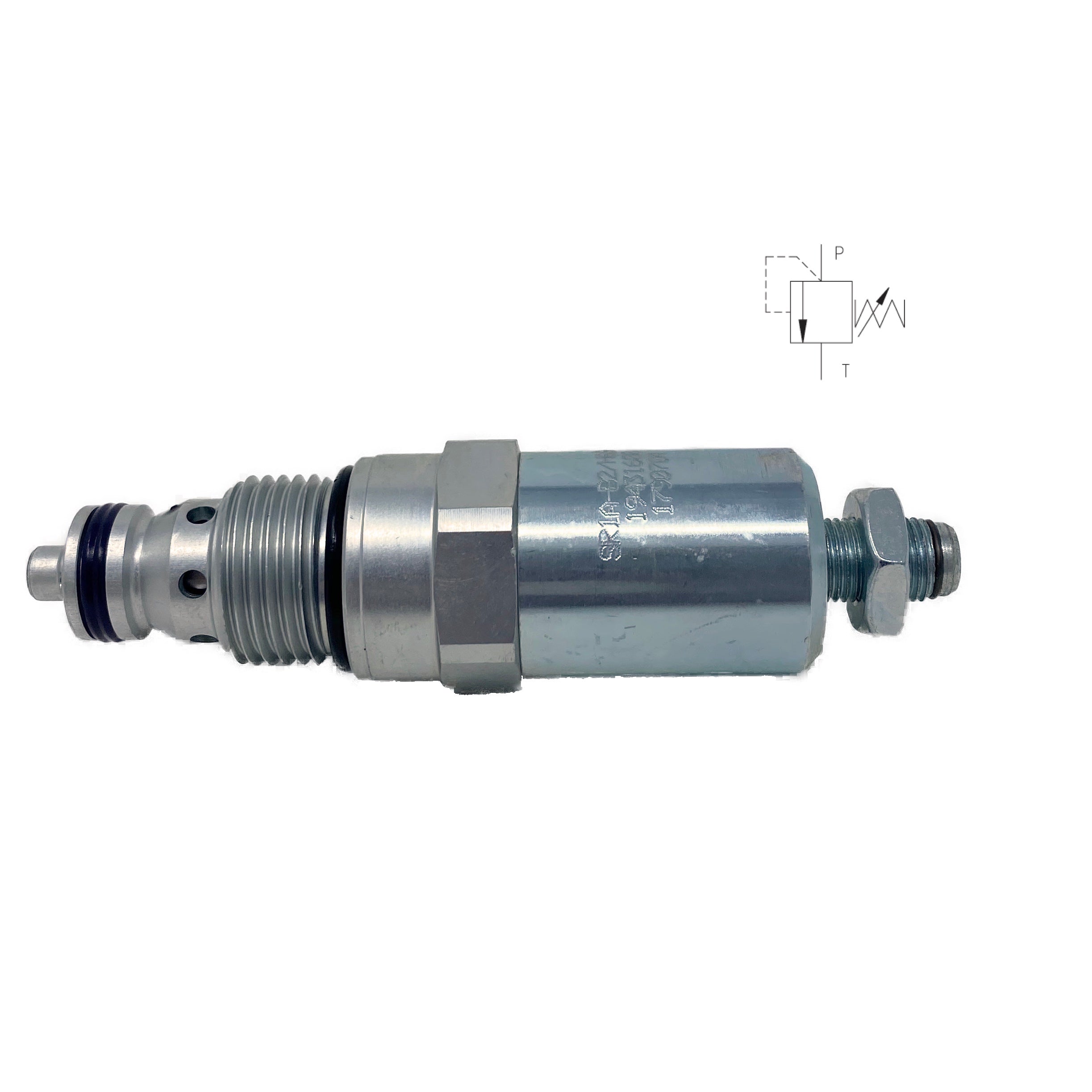

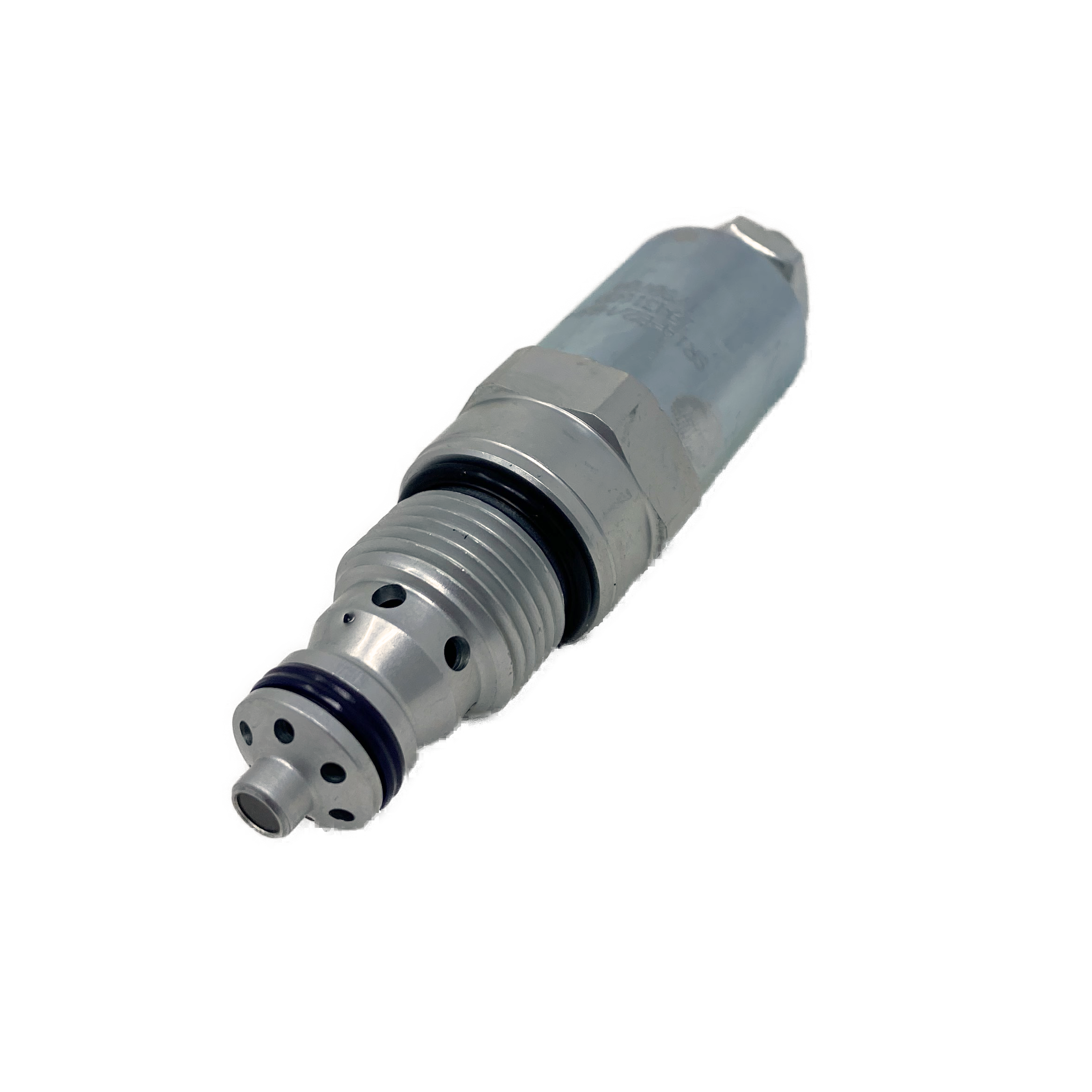

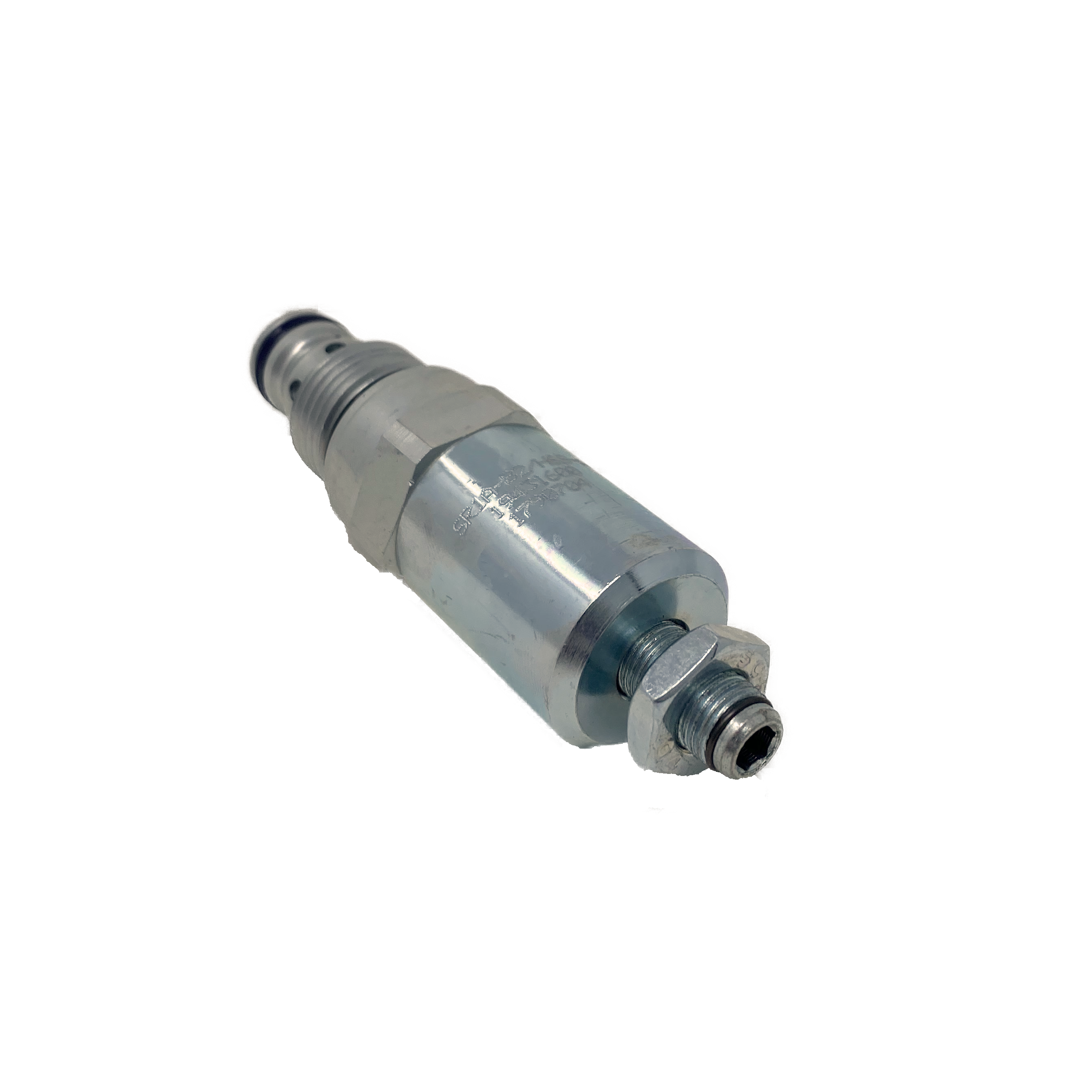

SR1A-B2/H10S-A : Argo Pressure Relief Valve, Poppet Type, Direct Acting, 16 GPM, 6100psi, Allen Key Screw, Adjustable Up to 1450psi, Fits C-10-2 Cavity
SR1A-B2/H10S-A : Argo Pressure Relief Valve, Poppet Type, Direct Acting, 16 GPM, 6100psi, Allen Key Screw, Adjustable Up to 1450psi, Fits C-10-2 Cavity
SR1A-B2/H10S-A : Argo Pressure Relief Valve, Poppet Type, Direct Acting, 16 GPM, 6100psi, Allen Key Screw, Adjustable Up to 1450psi, Fits C-10-2 Cavity
Roll over image to zoom in Click on image to zoom
SR1A-B2/H10S-A : Argo Pressure Relief Valve, Poppet Type, Direct Acting, 16 GPM, 6100psi, Allen Key Screw, Adjustable Up to 1450psi, Fits C-10-2 CavitySR1A-B2/H10S-A : Argo Pressure Relief Valve, Poppet Type, Direct Acting, 16 GPM, 6100psi, Allen Key Screw, Adjustable Up to 1450psi, Fits C-10-2 CavitySR1A-B2/H10S-A : Argo Pressure Relief Valve, Poppet Type, Direct Acting, 16 GPM, 6100psi, Allen Key Screw, Adjustable Up to 1450psi, Fits C-10-2 Cavity

SR1A-B2/H10S-A : Argo Pressure Relief Valve, Poppet Type, Direct Acting, 16 GPM, 6100psi, Allen Key Screw, Adjustable Up to 1450psi, Fits C-10-2 Cavity

Save $3.31
Argo-HytosSKU: 19431700
Same Day
12
0
Price:
$68.99 $72.30

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 0
Factory Location Bowling Green, Ohio
Valve Operation Direct-Acting
Valve Type Cartridge
Adjustment Type Allen Key Screw
Flow Rating 15.9
Pressure Rating 6090
Pressure Range Up to 1450psi
Cartridge Cavity C-10-2
Height 1.16
Length 4.1
Width 1.16
Weight 0.55

Description

The Argo-Hytos SR1A-B2 cartridge is a poppet-type, direct-acting, relief valve intended for use as a pressure limiting device for common hydraulic circuit protection. The spring acts on the poppet and presses it onto the valve seat. If the hydraulic pressure is below the pre-set value, the valve opens and flow passes to the tank port until the system pressure falls below the spring pre-set value and the valve closes again.
