SS-G03-C7Y-R-D1-E22 : Nachi Solenoid Valve, 3P4W, D05 (NG10), 18.5GPM, 5075psi, P to T with A & B Blocked in Neutral, 12 VDC, Wiring Box with Lights
SS-G03-C7Y-R-D1-E22 : Nachi Solenoid Valve, 3P4W, D05 (NG10), 18.5GPM, 5075psi, P to T with A & B Blocked in Neutral, 12 VDC, Wiring Box with Lights
SS-G03-C7Y-R-D1-E22 : Nachi Solenoid Valve, 3P4W, D05 (NG10), 18.5GPM, 5075psi, P to T with A & B Blocked in Neutral, 12 VDC, Wiring Box with Lights
SS-G03-C7Y-R-D1-E22 : Nachi Solenoid Valve, 3P4W, D05 (NG10), 18.5GPM, 5075psi, P to T with A & B Blocked in Neutral, 12 VDC, Wiring Box with Lights
Roll over image to zoom in Click on image to zoom
SS-G03-C7Y-R-D1-E22 : Nachi Solenoid Valve, 3P4W, D05 (NG10), 18.5GPM, 5075psi, P to T with A & B Blocked in Neutral, 12 VDC, Wiring Box with LightsSS-G03-C7Y-R-D1-E22 : Nachi Solenoid Valve, 3P4W, D05 (NG10), 18.5GPM, 5075psi, P to T with A & B Blocked in Neutral, 12 VDC, Wiring Box with LightsSS-G03-C7Y-R-D1-E22 : Nachi Solenoid Valve, 3P4W, D05 (NG10), 18.5GPM, 5075psi, P to T with A & B Blocked in Neutral, 12 VDC, Wiring Box with LightsSS-G03-C7Y-R-D1-E22 : Nachi Solenoid Valve, 3P4W, D05 (NG10), 18.5GPM, 5075psi, P to T with A & B Blocked in Neutral, 12 VDC, Wiring Box with Lights

SS-G03-C7Y-R-D1-E22 : Nachi Solenoid Valve, 3P4W, D05 (NG10), 18.5GPM, 5075psi, P to T with A & B Blocked in Neutral, 12 VDC, Wiring Box with Lights

Save $85.01
NachiSKU: SS-G03-C7Y-R-D1-E22
1-3 Days
26
Price:
$319.99 $405.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 26
Factory Location Greenwood, Indiana
Valve Type Subplate/Manifold Mounted Valve
Valve Interface D05 (NG10)
Flow Rating 18.5
Pressure Rating 5075
Voltage 12 VDC
Actuation Type Solenoid Operated
Solenoid Electrical Connection Wiring Box with Lights

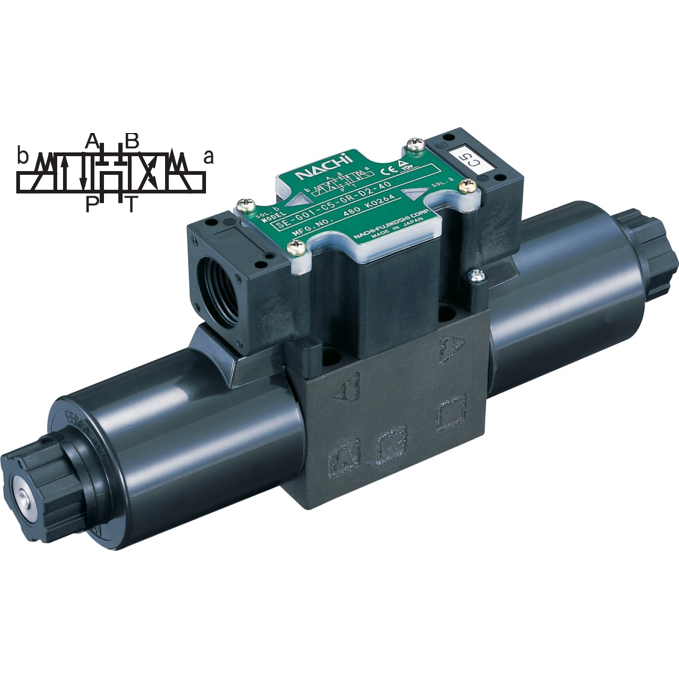

Spool Configuration P to T with A & B Blocked in Neutral
Positions 3-Position
Way 4-Way
Country of Manufacture Japan
Height 9.25
Length 2.76
Width 4.41
Weight 12.13

Description

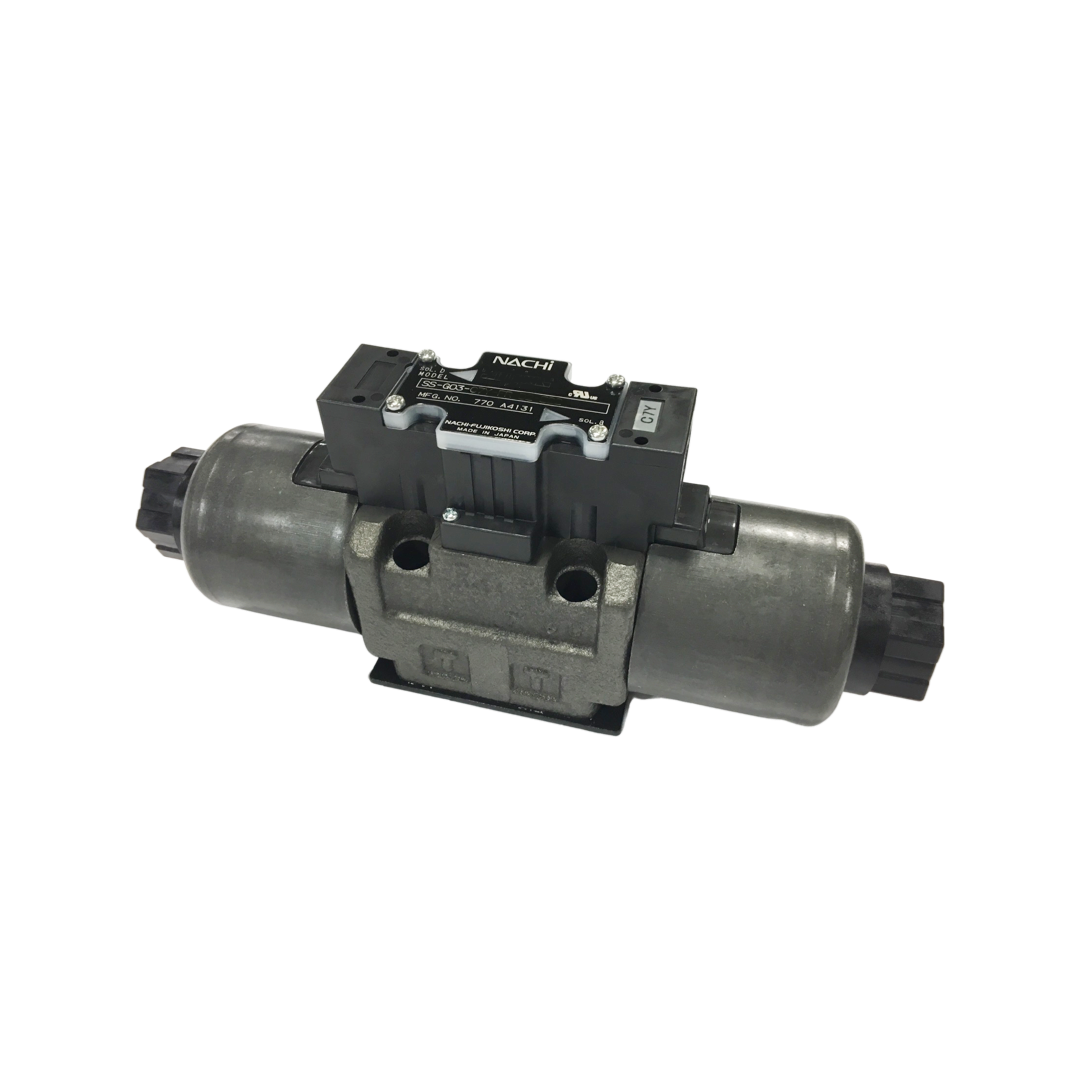

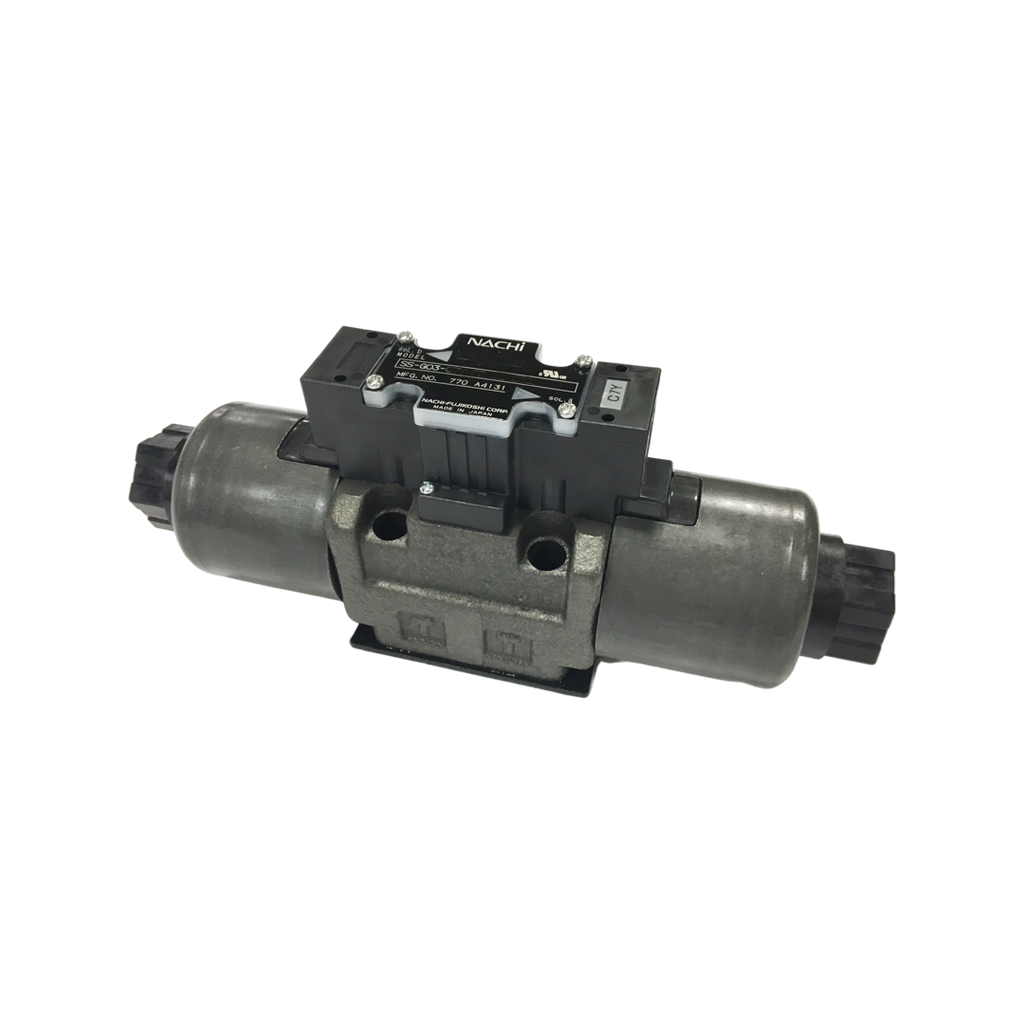

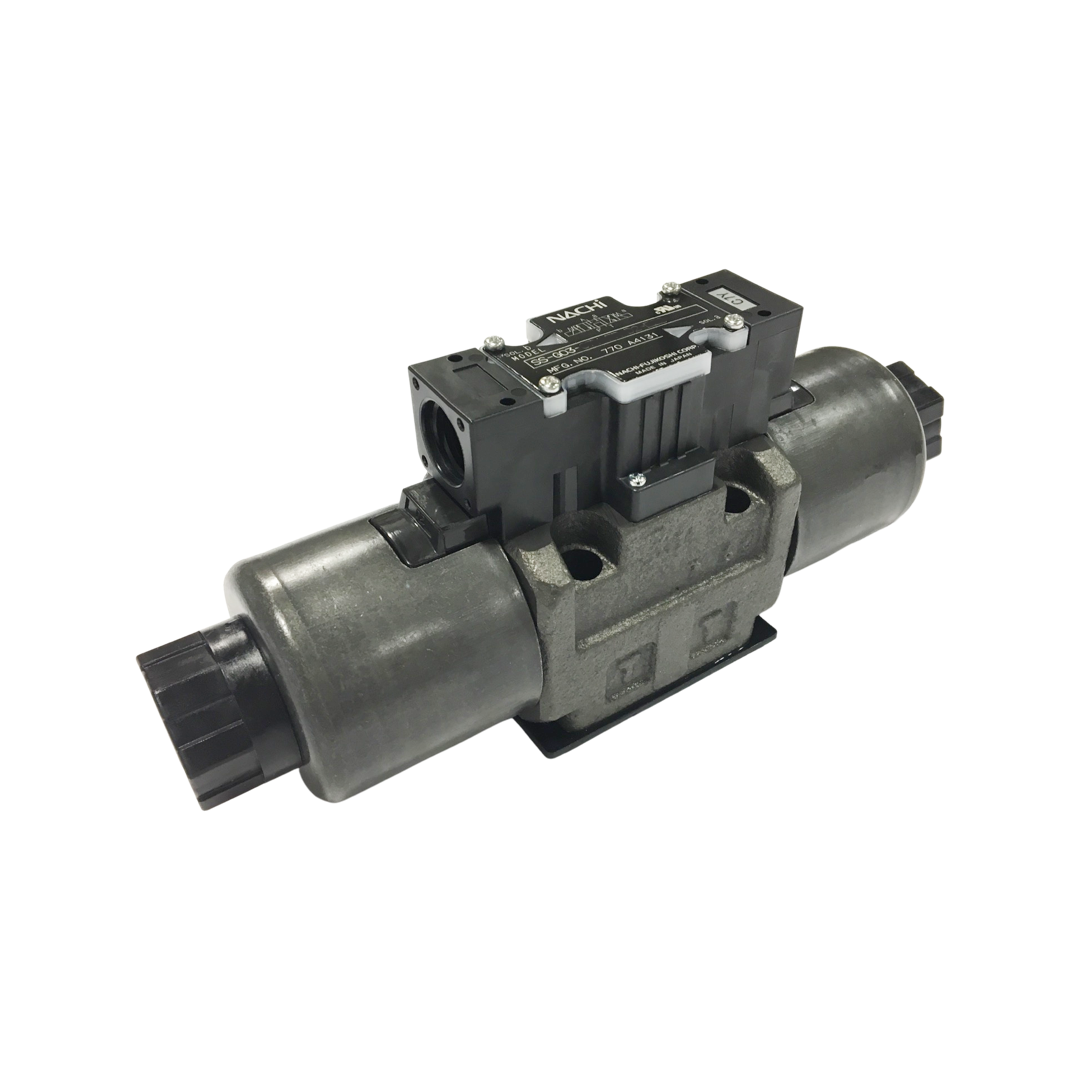

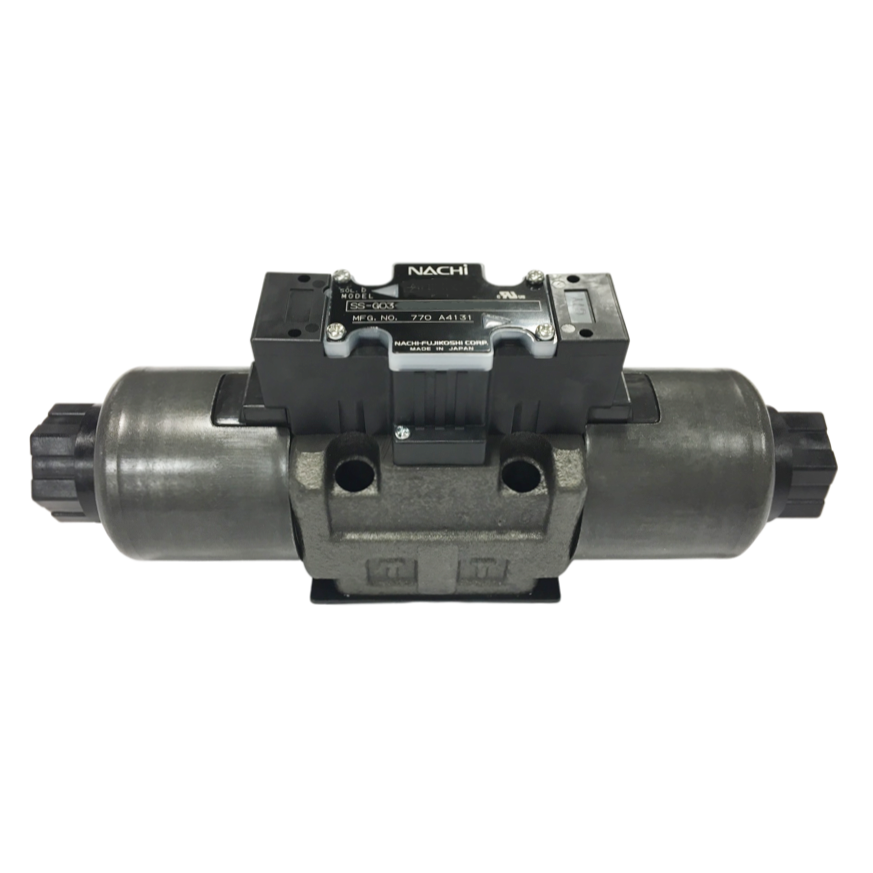

The Nachi SS is a standard 3-Position, 4-Way, Solenoid Operated Directional Valve. The movable iron core of the wet type solenoid is immersed in oil, which keeps it lubricated and cushions it from impact and vibration, ensuring very long life. The wet-type solenoid valve also provides very low core switching noise for quiet operation.
