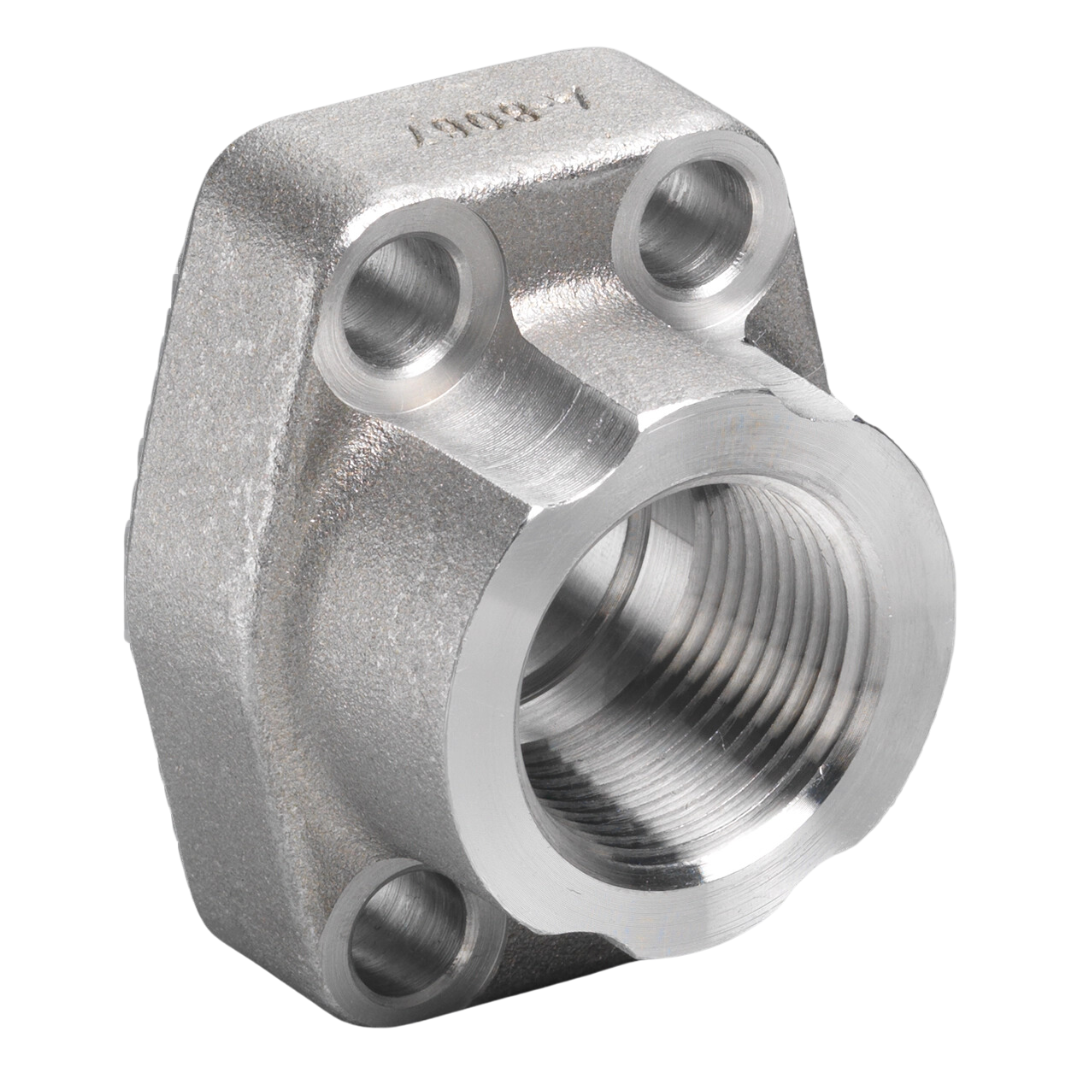

W104-24-24 : AFP NPTF Threaded Flange, Smooth Flat Face (no O-Ring Groove), Steel, 1.5 (1-1/2") NPTF x 1.5 (1-1/2") Code 61, no Bolts or O-Rings Included
Roll over image to zoom in Click on image to zoom
W104-24-24 : AFP NPTF Threaded Flange, Smooth Flat Face (no O-Ring Groove), Steel, 1.5 (1-1/2") NPTF x 1.5 (1-1/2") Code 61, no Bolts or O-Rings Included

W104-24-24 : AFP NPTF Threaded Flange, Smooth Flat Face (no O-Ring Groove), Steel, 1.5 (1-1/2") NPTF x 1.5 (1-1/2") Code 61, no Bolts or O-Rings Included

Anchor Fluid PowerSKU: W104-24-24
5 Days
Price:
$32.99

Product Details

Special Message Smooth Flat Face
Data Sheet Download Datasheet
Usually Ships Within 5 Days
Factory Location Cincinnati, Ohio and Houston, Texas
Material Carbon Steel
Flange Code Code 61
Flange Size 1.5 (1-1/2")
Pressure Rating 3000
Sae Connector Flange Type NPTF Threaded Flange
Fitting Angle Straight
Face Style Flat Face
Country of Manufacture China
Height 1.77
Length 3.07
Width 3.66
Side 1 Gender Female
Side 1 Size 1.5 (1-1/2")
Side 1 Type NPT

Description

AnchorÕs broad range of hydraulic flange configurations provides design engineers and shop assembly personnel with total flexibility in the plumbing of hydraulic systems. Their wide variety of standard configurations are available OFF-THESHELF to meet todayÕs reduced lead time requirements. Please note that adapting the flange to other connections such as braze tube, welded pipe, or threaded ports or stud ends cound reduce maximum working pressure.
