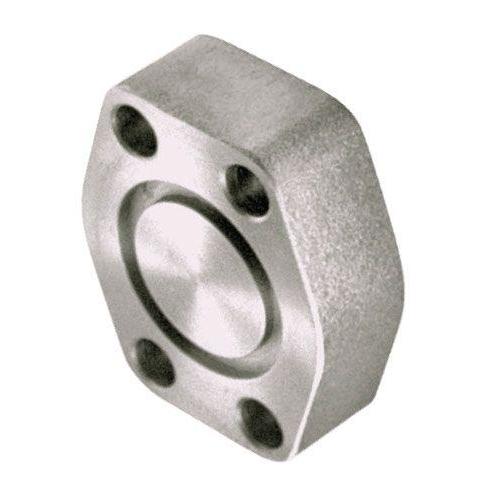

W38-24-24U : AFP Blanking Flange, with O-Ring Groove, Steel, 1.5 (1-1/2") Code 62, includes Flange, Bolts, O-Rings
Roll over image to zoom in Click on image to zoom
W38-24-24U : AFP Blanking Flange, with O-Ring Groove, Steel, 1.5 (1-1/2") Code 62, includes Flange, Bolts, O-Rings

W38-24-24U : AFP Blanking Flange, with O-Ring Groove, Steel, 1.5 (1-1/2") Code 62, includes Flange, Bolts, O-Rings

Save $28.92
Anchor Fluid PowerSKU: W38-24-24U
5 Days
Price:
$96.99 $125.91

Product Details

Special Message With O-Ring Groove
Data Sheet Download Datasheet
Usually Ships Within 5 Days
Factory Location Cincinnati, Ohio and Houston, Texas
Material Carbon Steel
Flange Code Code 62
Flange Size 1.5 (1-1/2")
Pressure Rating 6000
Sae Connector Flange Type Blanking Flange
Fitting Angle Straight
Face Style O-Ring
Country of Manufacture China
Height 1.82
Length 3.75
Width 4.44
Side 1 Type Blanking Flange

Description

AnchorÕs broad range of hydraulic flange configurations provides design engineers and shop assembly personnel with total flexibility in the plumbing of hydraulic systems. Their wide variety of standard configurations are available OFF-THESHELF to meet todayÕs reduced lead time requirements. Please note that adapting the flange to other connections such as braze tube, welded pipe, or threaded ports or stud ends cound reduce maximum working pressure.
