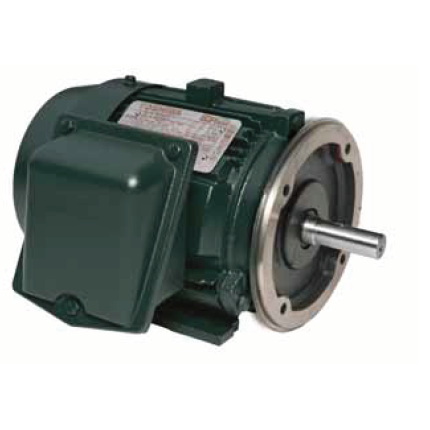

Y752SDSR42A-P : Toshiba EQP Global SD Motor, C-Face, 7.5HP, 3600RPM, 230/460V, 213TC Frame
Roll over image to zoom in Click on image to zoom
Y752SDSR42A-P : Toshiba EQP Global SD Motor, C-Face, 7.5HP, 3600RPM, 230/460V, 213TC Frame

Y752SDSR42A-P : Toshiba EQP Global SD Motor, C-Face, 7.5HP, 3600RPM, 230/460V, 213TC Frame

Save $275.01
ToshibaSKU: Y752SDSR42A-P
1-3 Days
25
Price:
$938.99 $1,214.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 25
Factory Location Houston, Texas
Horsepower 7.5
Rpm 3600
Motor Voltage 230/460
Electric Motor Frame Size 213TC
Electric Motor Type EQP GLOBAL SD C-FACE FOOTED
Fl Amps 18/9
Nominal Fl Efficiency 89.7
Height 13
Length 19.5
Width 13
Weight 185

Description

Toshiba’s general purpose, totally enclosed fan cooled, C-Face motor series is Toshiba’s next generation motor product line. The TEFC C-Face motor is available in footed and footless designs, and is designed to meet or exceed the competitive demands of the global market, as well as the amended integral horsepower (HP) rule IHMR 2016, while maintaining the high reliability and quality expected from Toshiba. These motors have a three year factory warranty.
