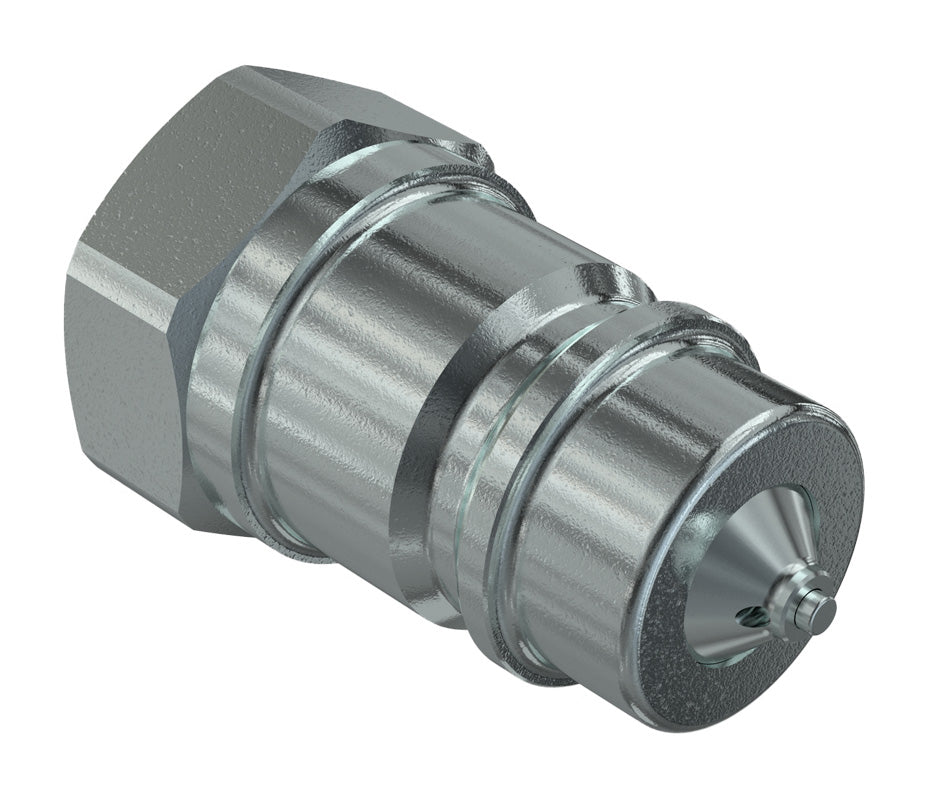

4NV 12-12SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.5 (1/2") ORB Connection, 3625psi MAWP, 19.81 GPM, ISO 7241 Part A Interchange, Sleeve Retraction Style, Connection Under Pressure Allowed Residual
Roll over image to zoom in Click on image to zoom
4NV 12-12SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.5 (1/2") ORB Connection, 3625psi MAWP, 19.81 GPM, ISO 7241 Part A Interchange, Sleeve Retraction Style, Connection Under Pressure Allowed Residual4NV 12-12SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.5 (1/2") ORB Connection, 3625psi MAWP, 19.81 GPM, ISO 7241 Part A Interchange, Sleeve Retraction Style, Connection Under Pressure Allowed Residual

4NV 12-12SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.5 (1/2") ORB Connection, 3625psi MAWP, 19.81 GPM, ISO 7241 Part A Interchange, Sleeve Retraction Style, Connection Under Pressure Allowed Residual

FasterSKU: 4NV 12-12SAE M
1-2 Weeks
Price:
$9.99

Product Details

Data Sheet Click here to download
Usually Ships Within 1-2 Weeks
Factory Location Maumee, Ohio
Port Size 0.5 (1/2") ORB
Type Sleeve Retraction
End Connections Allowed Residual
Pressure Rating 3625
Series Series: 4NV
Operating Force 25 lb
Country of Manufacture Country of Manufacture: Italy
Height 1.18
Length 1.73
Width 1.18
Weight 0.19
Side 1 Gender Male
Side 1 Size 0.5 (1/2")

Description

Standard 1/2" couplings for agriculture allowing an easy relief of residual pressure thanks to a microvalve. ISO 7241 part A interchange.
