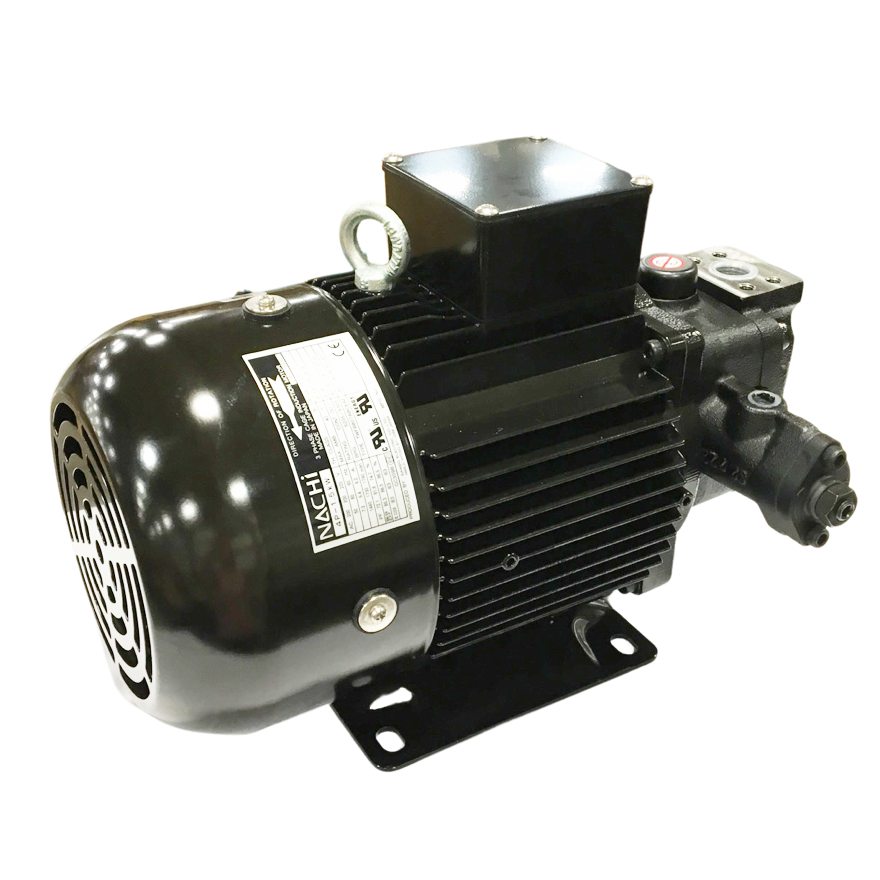

UVN-1A-1A3-1.5-4-12U : Nachi UVN Variable Volume Vane Uni-Pump, 1.5HP, 16.06cc, 7.6GPM, 507 to 870psi Range
UVN-1A-1A3-1.5-4-12U : Nachi UVN Variable Volume Vane Uni-Pump, 1.5HP, 16.06cc, 7.6GPM, 507 to 870psi Range
UVN-1A-1A3-1.5-4-12U : Nachi UVN Variable Volume Vane Uni-Pump, 1.5HP, 16.06cc, 7.6GPM, 507 to 870psi Range
Roll over image to zoom in Click on image to zoom
UVN-1A-1A3-1.5-4-12U : Nachi UVN Variable Volume Vane Uni-Pump, 1.5HP, 16.06cc, 7.6GPM, 507 to 870psi RangeUVN-1A-1A3-1.5-4-12U : Nachi UVN Variable Volume Vane Uni-Pump, 1.5HP, 16.06cc, 7.6GPM, 507 to 870psi RangeUVN-1A-1A3-1.5-4-12U : Nachi UVN Variable Volume Vane Uni-Pump, 1.5HP, 16.06cc, 7.6GPM, 507 to 870psi Range

UVN-1A-1A3-1.5-4-12U : Nachi UVN Variable Volume Vane Uni-Pump, 1.5HP, 16.06cc, 7.6GPM, 507 to 870psi Range

Save $484.01
NachiSKU: UVN-1A-1A3-1.5-4-12U
4-6 Weeks
Price:
$1,786.99 $2,271.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Greenwood, Indiana
Horsepower 1.5
Pressure Rating 2000
Displacement 16.06
Gpm At 1800 Rpm 7.6
Inlet Port 3/4" BSPT
Outlet Port 1/2" BSPT
Pressure Range 507 to 870psi
Drain Port 1/4" BSPT
Country of Manufacture Japan
Height 8.58
Length 13.58
Width 6.69
Weight 46

Description

The popular Nachi UVN vane pumps are often found on Nachi hydraulic power units. These energy efficient, high performance pumps have all the performance qualities of a vane pump, but are enhanced by eliminating the external drain and optimizing the pressure balance, creating a design that generates little heat. The pump and motor are designed for exclusive uni-pump use, making them lightweight, compact, and easy to handle. The pump and motor shaft are linked by a joint, which minimizes noise by eliminating the effects of shaft vibration and an off-center shaft. The coupling is constructed to allow contant lubrication, for a friction-free long life.
