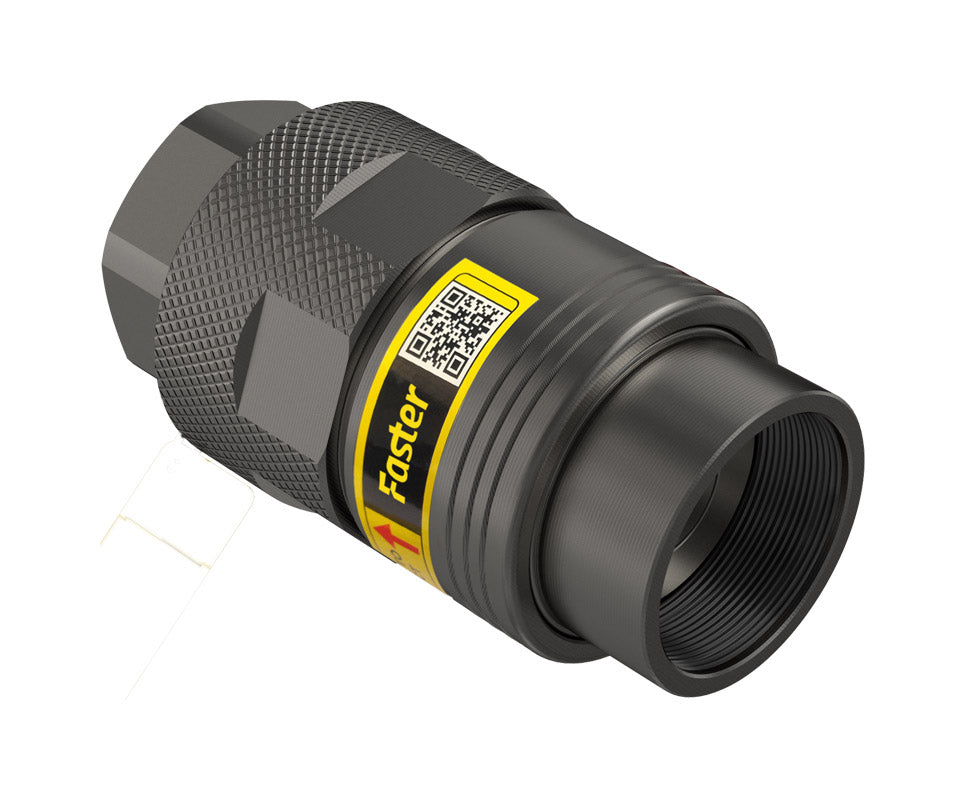

FHV12ET 34SAE F : Faster Quick Disconnect, Female 3/4" Coupler, 0.75 (3/4") ORB Connection, 6671psi MAWP, 31.7 GPM, Screw to Connect Style, Connection Under Pressure Allowed at Working Pressure Male Side Only
FHV12ET 34SAE F : Faster Quick Disconnect, Female 3/4" Coupler, 0.75 (3/4") ORB Connection, 6671psi MAWP, 31.7 GPM, Screw to Connect Style, Connection Under Pressure Allowed at Working Pressure Male Side Only
Roll over image to zoom in Click on image to zoom
FHV12ET 34SAE F : Faster Quick Disconnect, Female 3/4" Coupler, 0.75 (3/4") ORB Connection, 6671psi MAWP, 31.7 GPM, Screw to Connect Style, Connection Under Pressure Allowed at Working Pressure Male Side OnlyFHV12ET 34SAE F : Faster Quick Disconnect, Female 3/4" Coupler, 0.75 (3/4") ORB Connection, 6671psi MAWP, 31.7 GPM, Screw to Connect Style, Connection Under Pressure Allowed at Working Pressure Male Side Only

FHV12ET 34SAE F : Faster Quick Disconnect, Female 3/4" Coupler, 0.75 (3/4") ORB Connection, 6671psi MAWP, 31.7 GPM, Screw to Connect Style, Connection Under Pressure Allowed at Working Pressure Male Side Only

Save $12.34
FasterSKU: FHV12ET 34SAE F
1-2 Weeks
Price:
$158.99 $171.33

Product Details

Data Sheet Click here to download
Usually Ships Within 1-2 Weeks
Factory Location Maumee, Ohio
Port Size 0.75 (3/4") ORB
Type Screw to Connect
End Connections Allowed at Working Pressure Male Side Only
Pressure Rating 6671
Series Series: FHV
Operating Force 0 lb
Country of Manufacture Country of Manufacture: Italy
Height 2.52
Length 5.1
Width 2.52
Weight 4.09
Side 1 Gender Female
Side 1 Size 0.75 (3/4")

Description

Screw-on flat face couplings, suitable for construction equipment and heavy duty applications. The Zinc-Nickel plating guarantees a remarkable resistance to corrosion. Connectable by hand up to 35 MPa residual pressure in the male half. No hose torsion during connection and disconnection thanks to the internal bearing system. Equipped with a safety sleeve to prevent accidental disconnections due to vibrations. Aluminum and pvc dust caps available. Faster proprietary profile. Part numbers with "ET" offer an Extended Temperature range (from -30° to 120 ° C) in connected configuration. Part numbers with "HD" (Heavy Duty) are equipped with a double bearing ball system and a greasing nipple.
