Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Stock | 42 |
| Factory Location | Houston, Texas |
| Horsepower | 1 |
| Rpm | 1200 |
| Motor Voltage | 230/460 |
| Electric Motor Frame Size | 145T |
| Electric Motor Type | EQP GLOBAL SD |
| Fl Amps | 3.6/1.8 |
| Nominal Fl Efficiency | 82.9 |
| Height | 8 |
| Length | 13.2 |
| Width | 8 |
| Weight | 62 |
Description

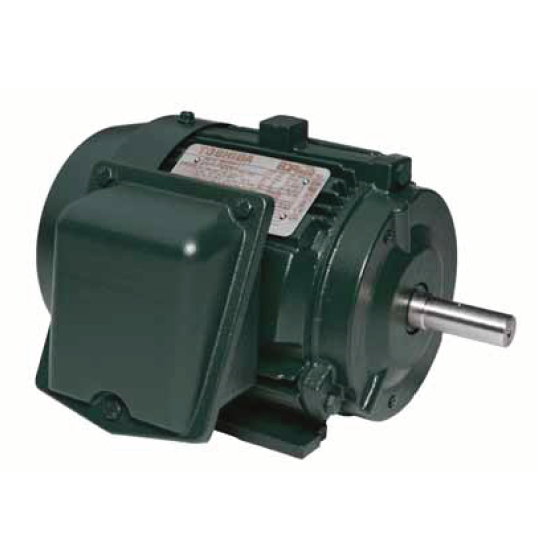

Toshiba’s general purpose, totally enclosed fan cooled, NEMA Premium® efficiency, EQP Global® SD motor series is Toshiba’s next generation motor product line. This cutting-edge motor product line is designed to meet or exceed the competitive demands of the global market, as well as the amended integral horsepower (HP) rule IHMR 2016, while maintaining the high reliability and quality expected from Toshiba. Building on over 20 years of success with Toshiba's EQPIII motor series, the EQP Global® SD features design enhancements on the rotor, frame, brackets, fan, and bearings.
