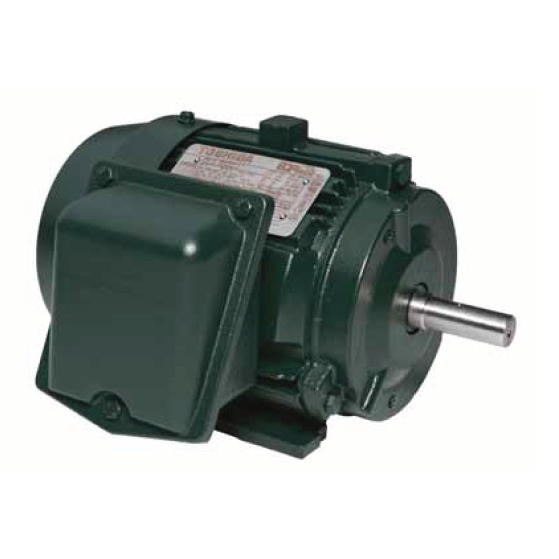

0204SDSR41A-P : Toshiba EQP Global SD Motor, 20HP, 1800RPM, 230/460V, 256T Frame
Roll over image to zoom in Click on image to zoom
0204SDSR41A-P : Toshiba EQP Global SD Motor, 20HP, 1800RPM, 230/460V, 256T Frame

0204SDSR41A-P : Toshiba EQP Global SD Motor, 20HP, 1800RPM, 230/460V, 256T Frame

Save $686.01
ToshibaSKU: 0204SDSR41A-P
1-3 Days
125
Price:
$1,420.99 $2,107.00

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Stock 125
Factory Location Houston, Texas
Horsepower 20
Rpm 1800
Motor Voltage 230/460
Electric Motor Frame Size 256T
Electric Motor Type EQP GLOBAL SD
Fl Amps 50/25
Nominal Fl Efficiency 93.3
Height 14.9
Length 25.1
Width 12.7
Weight 355

Description

Toshiba’s general purpose, totally enclosed fan cooled, NEMA Premium® efficiency, EQP Global® SD motor series is Toshiba’s next generation motor product line. This cutting-edge motor product line is designed to meet or exceed the competitive demands of the global market, as well as the amended integral horsepower (HP) rule IHMR 2016, while maintaining the high reliability and quality expected from Toshiba. Building on over 20 years of success with Toshiba's EQPIII motor series, the EQP Global® SD features design enhancements on the rotor, frame, brackets, fan, and bearings.
