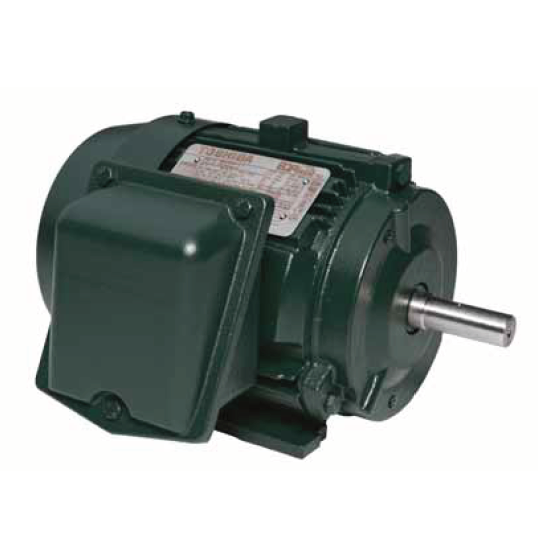

0252SDSR41B-P : Toshiba EQP Global SD Motor, 25HP, 3600RPM, 230/460V, 284TS Frame
Roll over image to zoom in Click on image to zoom
0252SDSR41B-P : Toshiba EQP Global SD Motor, 25HP, 3600RPM, 230/460V, 284TS Frame

0252SDSR41B-P : Toshiba EQP Global SD Motor, 25HP, 3600RPM, 230/460V, 284TS Frame

Save $1,041.01
ToshibaSKU: 0252SDSR41B-P
1-3 Days
70
Price:
$1,683.99 $2,725.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 70
Factory Location Houston, Texas
Horsepower 25
Rpm 3600
Motor Voltage 230/460
Electric Motor Frame Size 284TS
Electric Motor Type EQP GLOBAL SD
Fl Amps 58/29
Nominal Fl Efficiency 91.8
Height 17.5
Length 27
Width 15.4
Weight 485

Description

Toshiba’s general purpose, totally enclosed fan cooled, NEMA Premium® efficiency, EQP Global® SD motor series is Toshiba’s next generation motor product line. This cutting-edge motor product line is designed to meet or exceed the competitive demands of the global market, as well as the amended integral horsepower (HP) rule IHMR 2016, while maintaining the high reliability and quality expected from Toshiba. Building on over 20 years of success with Toshiba's EQPIII motor series, the EQP Global® SD features design enhancements on the rotor, frame, brackets, fan, and bearings.
