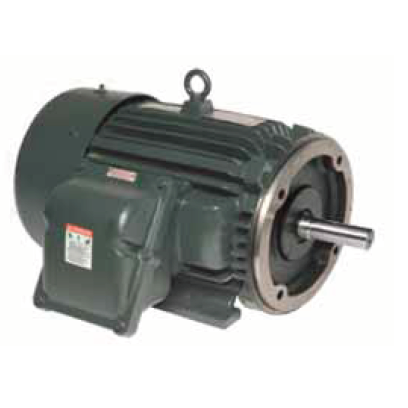

0502XPEA42B-P : Toshiba EQP Global XP Motor, C-Face, Explosion Proof, 50HP, 3600RPM, 230/460V, 326TSC Frame
Roll over image to zoom in Click on image to zoom
0502XPEA42B-P : Toshiba EQP Global XP Motor, C-Face, Explosion Proof, 50HP, 3600RPM, 230/460V, 326TSC Frame

0502XPEA42B-P : Toshiba EQP Global XP Motor, C-Face, Explosion Proof, 50HP, 3600RPM, 230/460V, 326TSC Frame

Save $4,047.01
ToshibaSKU: 0502XPEA42B-P
4-6 Weeks
Price:
$4,836.99 $8,884.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Houston, Texas
Horsepower 50
Rpm 3600
Motor Voltage 230/460
Electric Motor Frame Size 326TSC
Electric Motor Type EQP GLOBAL XP C-FACE FOOTED
Fl Amps 116/58
Nominal Fl Efficiency 93
Height 18
Length 29.8
Width 17.3
Weight 772

Description

Toshiba's EQP Global XP C-Face footed explosion proof motors are equipped to contain an explosion that may occur inside a motor, as well as prevent explosive gases and vapors from being released into the environment. Its robust construction meets the UL and CSA listed Hazardous Locations requirements. This product line is designed for use in Class I, Division 1, Group D, and Class II, Division 1, Groups E, F, and G and carries a temperature code rating of T3C (160°C). It is ideal for indoor and outdoor use and offers the performance and reliability the motor industry has come to expect from Toshiba, which makes the EQP Global® XP motor the clear choice for your toughest environments and applications.
