Product Details
| Usually Ships Within | 4-6 Weeks |
|---|---|
| Factory Location | Tempe, Arizona |
| Material | Steel |
| Pressure Rating | 0 |
| Height | 30 |
| Length | 28 |
| Width | 34.63 |
| Weight | 135 |
Description

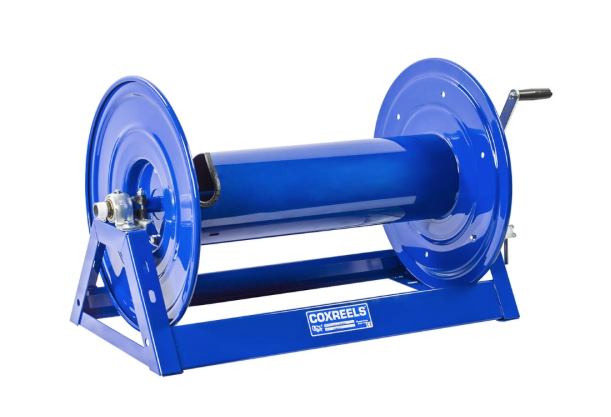

Coxreels 1185-2028-EA-BYXX Electric 115V Explosion Proof 1/2HP Motor Rewind Storage Hose Reel: multiple hose capacity, without hose
| Retraction Method | Motor Driven |
|---|---|
| Reel Type | Specialty |
| Reel Design | A-Shaped Frame |
| Reel Mount Type | Floor, Wall, Vehicle Mounting |
| Material | Steel |
| Bearings | Permanently Lubricated Self Aligning Pillow Block Bearings |
| Finish | Powder Coated |
| Max Temp | N/A |
| Design & Structure | Hand crank and motor driven reels to store and maintain long length of hose, cord, cable, wire, rope, tape, chain and other, Reels have no swivel and no riser, for storage only (Model with suffix -BYXX), Sturdy A-frame base design, All welded steel A-fram |
| Retraction | Reliable chain and sprocket drive on motor driven models, Solid steel direct hand crank with smooth round handle, See Motor Options Chart |
| Signature Features | Professional grade heavy duty steel construction, Durable proprietary CPC powder coat process, Rolled edges and ribbed discs provide strength and safety, Leading 2-year manufacturer's limited warranty, Made in the USA. |
| Feature 1 | STORAGE REEL - Have no swivel and no riser to storage and maintain long length of hose, cord, cable, wire, rope, tape, chain and other. |
| Feature 2 | CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety. |
| Feature 3 | A-Frame - Sturdy one piece, all CNC robotically welded 1/4-inch steel A-Frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment. |
| Feature 4 | ADJUSTABLE TENSION BRAKE - Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage. |
| Feature 5 | PILOW BLOCK BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation. |
| Feature 6 | OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and electrical 115 V AC, 1/2 HP reversable AC rectified motor. |
| Pressure Rating | 0.00 PSI |
| Optional Capacity ID | 0 |
| Optional Capacity OD | 0 |
| Length with Optional Capacity | 0 |
| Hose/Cord/Cable Included | No |
| Weight in lbs | 135.00 |
| Length | 28.00 Inches |
| Width | 34.63 Inches |
| Height | 30.00 Inches |
Coxreels Storage hand crank and motorized reels have the features demanded by industry professionals. These features include a CNC robotically heavy duty spun and ribbed discs with rolled edges for added strength, safety and durability and a sturdy all-welded A-frame built to efficiently handle the most demanding storage tasks on either stationary or mobile units. These innovative models were selected from Coxreels standard series to handle long length of various materials including but not limited to hose, collapsible hose, powercord, cable, rope, wire, barbed wire, tape, and chain.
