Product Details
| Usually Ships Within | 4-6 Weeks |
|---|---|
| Factory Location | Tempe, Arizona |
| Material | Steel |
| Pressure Rating | 1500 |
| Inside Diameter | 2" |
| Hose Outside Diameter | 2.5625 (2-9/16") |
| Seal Material | AFLAS |
| Height | 30.25 |
| Length | 28 |
| Width | 33.25 |
| Weight | 137 |
Description

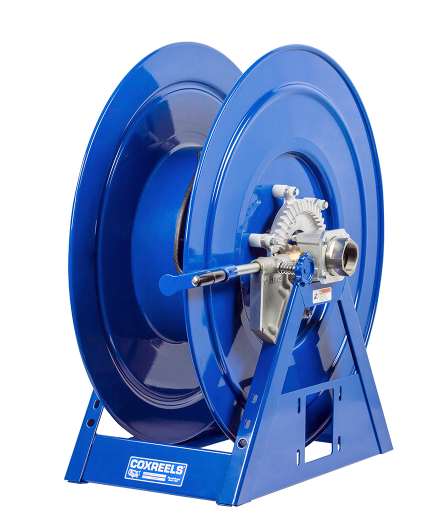

Coxreels 1195-1728-C-BUXX Beveled Gear Hand Crank Hose Reel: 2" I.D., 60' hose capacity, without hose, 1500 PSI, upgraded 90 degree swivel
| Retraction Method | Hand Crank |
|---|---|
| Reel Type | Hose |
| Reel Design | A-Shaped Frame |
| Reel Mount Type | Floor, Wall, Vehicle Mounting |
| Swivel/Slip Ring | External fluid path with electroless nickel plated steel 90-Degree full-flow NPT swivel inlet, Swivel Seals: AFLAS |
| Material | Steel |
| Seal Material | AFLAS |
| Swivel Material | Electroless Nickel Plated Steel |
| Bearings | Lubricated Horizontal Surface Mount Bearings |
| Finish | Powder Coated |
| Max Temp | 250 Degrees F |
| Design & Structure | All welded steel A-frame construction for superior reel structure, Exclusive low profile outlet riser and open drum slot design for flat smooth hose wrap, Robust lubricated horizontal surface mount bearings for easy rotation, Adaptor for Victaulic connect |
| Retraction | Reliable chain and sprocket drive on motor driven models, Bevel geared crank rewind (On models with suffix -C) See Motor Options Chart |
| Signature Features | Professional grade heavy duty steel construction, Durable proprietary CPC powder coat process, Rolled edges and ribbed discs provide strength and safety, Leading 2-year manufacturer's limited warranty, Made in the USA. |
| Feature 1 | SWIVEL - Electroless nickel plated steel 90-degree full-flow NPT swivel with ball bearings for fast and easy hose installation. No need to remove the reel from its mount. |
| Feature 2 | CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety. |
| Feature 3 | OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap. |
| Feature 4 | A-Frame - Sturdy one piece, all CNC robotically welded 12 Gage steel A-Frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment. |
| Feature 5 | PERMANENT LUBRICATED BEARINGS - Robust lubricated horizontal surface mount bearings for easy rotation. |
| Feature 6 | OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and front bevel geared crank for easy mechanical retraction. |
| Hose Inside Diameter | 2" |
| Hose Outside Diameter | 2.5625 (2-9/16") |
| Hose Length | 60' |
| Reel Hose Ends | 2" MNPT |
| Pressure Rating | 1,500.00 PSI |
| Optional Capacity ID | 1.5 (1-1/2") |
| Optional Capacity OD | 2.0625 (2-1/16") |
| Length with Optional Capacity | 85' |
| Reel Inlet | 2" FNPT |
| Hose/Cord/Cable Included | No |
| Weight in lbs | 137.00 |
| Length | 28.00 Inches |
| Width | 33.25 Inches |
| Height | 30.25 Inches |
| Reel Accessories | 15368-32 (Top Rewind 4-Way Roller Bracket); 15370-32 (Bottom Rewind 4-Way Roller Bracket); 20843 (Spring Loaded Lock Pin); 8176 (Gear Guards - for motor driven only); 20883 (Vapor Proof Junction Box); 15210 (General Purpose Reversing Switch); 20876 (Seale |
Coxreels 1195 Series hand crank and motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels
