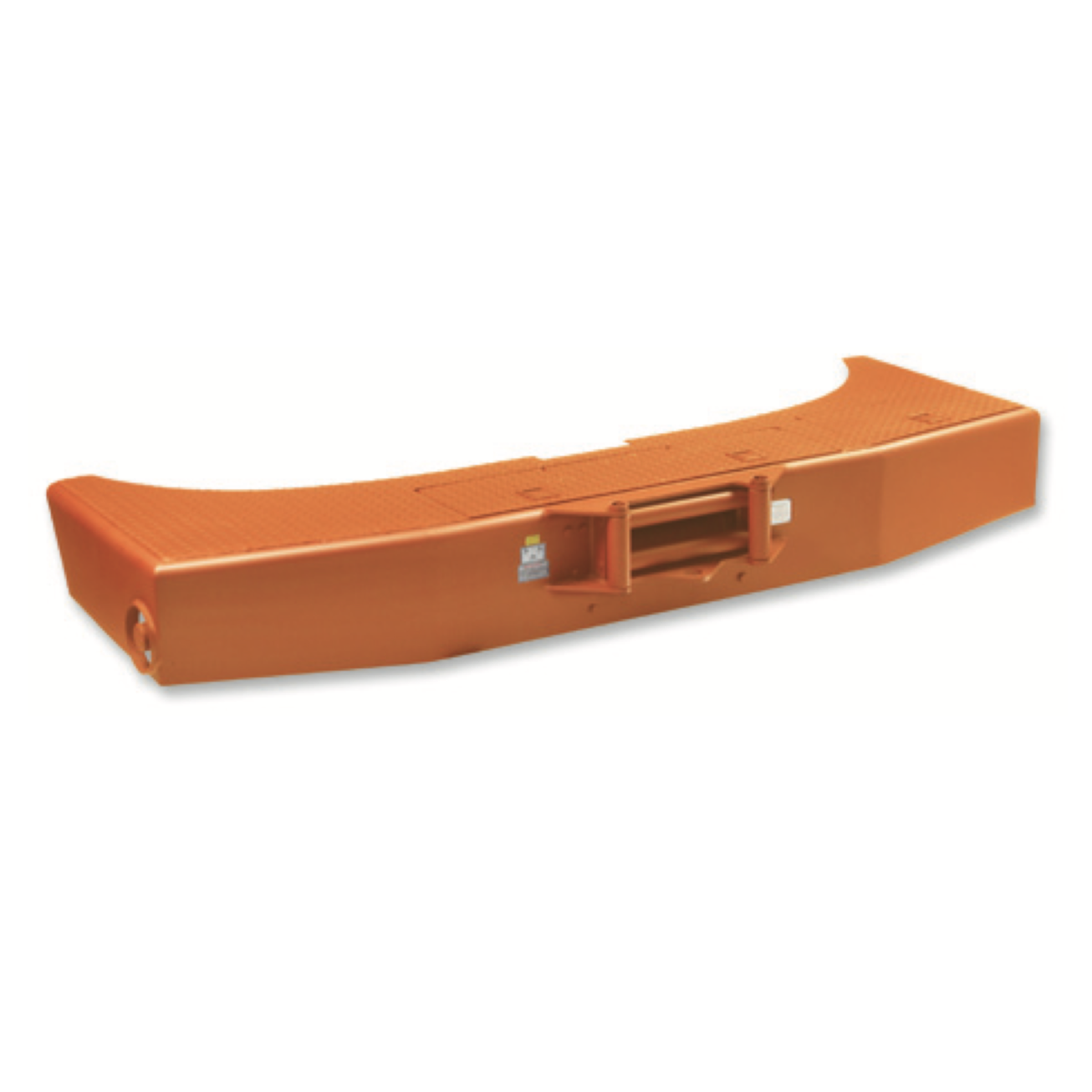

12UB8X3L1H-001 : DP Bumper Winch, 12,000lb Capacity, 80" Lg Bumper, CCW, Less than 20GPM Motor
Roll over image to zoom in Click on image to zoom
12UB8X3L1H-001 : DP Bumper Winch, 12,000lb Capacity, 80" Lg Bumper, CCW, Less than 20GPM Motor

12UB8X3L1H-001 : DP Bumper Winch, 12,000lb Capacity, 80" Lg Bumper, CCW, Less than 20GPM Motor

DP WinchSKU: 12UB8X3L1H-001
6-8 Weeks
Price:
$9,950.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 6-8 Weeks
Factory Location Jenks, Oklahoma
Nominal Capacity 206
Hydraulic Motor Pressure 2400psi
Drum Torque 8200 in-lb
Country of Manufacture United States
Height 14.79
Length 77.43
Width 25.82
Weight 320
Drum Flange Diameter 9.38"
Brake Option N/A
Drum Length 13.44"
Drum Rotation Counterclockwise
Max Bare Drum Line Pull 12,000 lbs
Max Full Drum Line Pull 6,350 lbs
Max Bare Drum Line Speed 38 ft/min
Max Full Drum Line Pull 6,350 lbs
Max Full Drum Line Speed 73 ft/min

Description

TWG DP Winch Bumper & Capstan winches have the strength to pull you out of any tight spot.

There is a reason more and more utility fleet managers specify Lineman traction winches, bumper winches, capstans and accessories over other brands, but we'll start with the first - safer operation by design. Only Lineman equipment is designed with safety features typically offered as options on competitive products. This means added protection against operator accidents, injuries, and equipment failure. DP Winch knows that overloading and downtime impact your bottom line. That's why every Lineman winch is engineered from the very start to help you and your crew work safer and smarter.

With line pull ratings from 1500 lbs to 30,000 lbs, DP Winches will be there with you to the last pull. These winches are available with and without the bumper, with an optional capstan head for AT&T shaft. Extension is available curb side or street side. If you do not see the bumper winch you need, give OneHydraulics a call. We are happy to help with custom bumper winch configurations.
