Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | 45-Degree |
| Pressure Rating | 3500 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 1/4-18 (-04) |
| Side 1 Type | NPTF |
| Side 2 Gender | FEMALE |
| Side 2 Size | 1/2-14 (-08) |
| Side 2 Type | NPSM |
Description

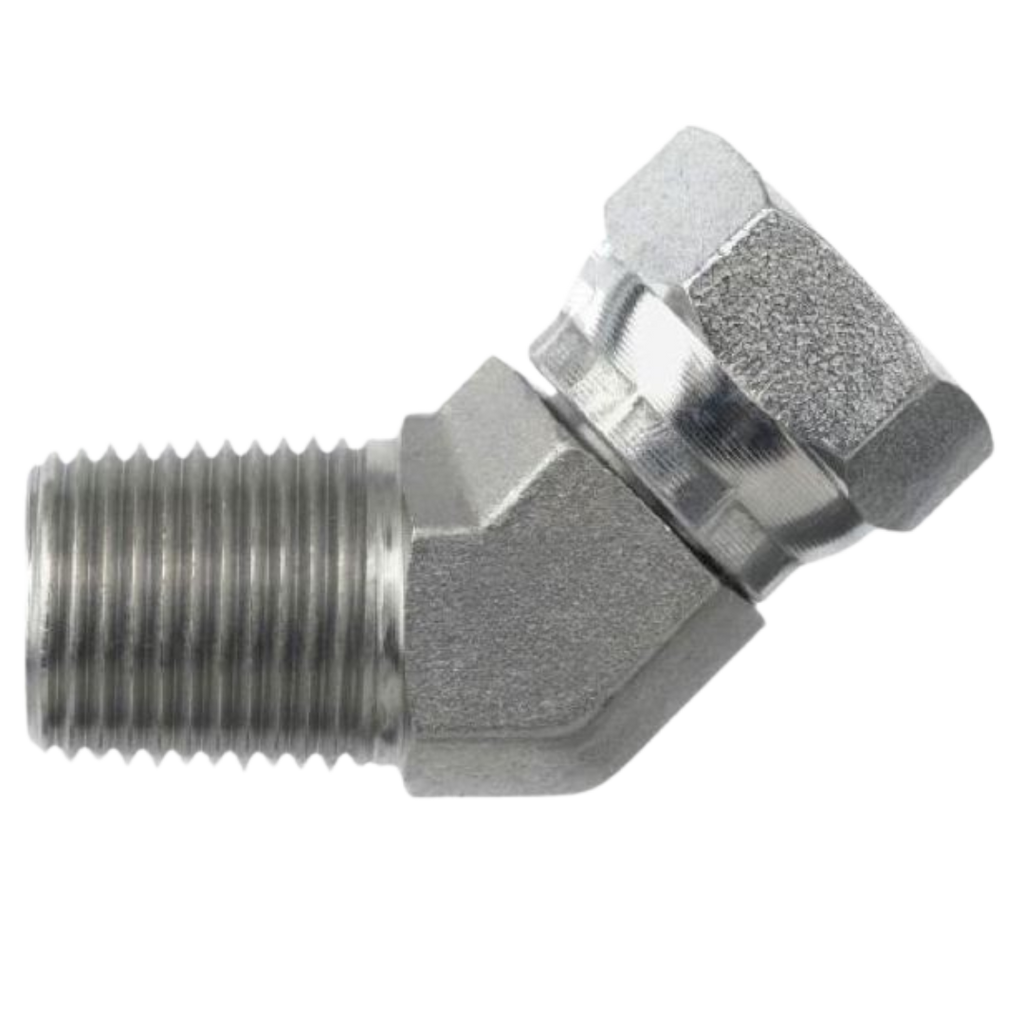

Our Series 1503 45-Degree Angled Male NPTF x Female NPSM Swivel Adapter, made from high-quality carbon steel, is designed to connect male and female threads with precision and durability. The NPTF (National Pipe Tapered Fuel) threads are tapered, providing a metal-to-metal seal ideal for high-pressure fluid and gas applications, ensuring a leak-proof connection. On the other hand, NPSM (National Pipe Straight Mechanical) threads are straight, creating a mechanical connection without thread deformation, commonly used in systems where a strong, reliable seal is needed without the risk of leakage. The 45-degree angle and swivel feature allow for easy adjustments and flexibility during installation, making this adapter suitable for a wide range of industrial uses. The carbon steel construction ensures strength and resistance to corrosion, even in challenging environments.
