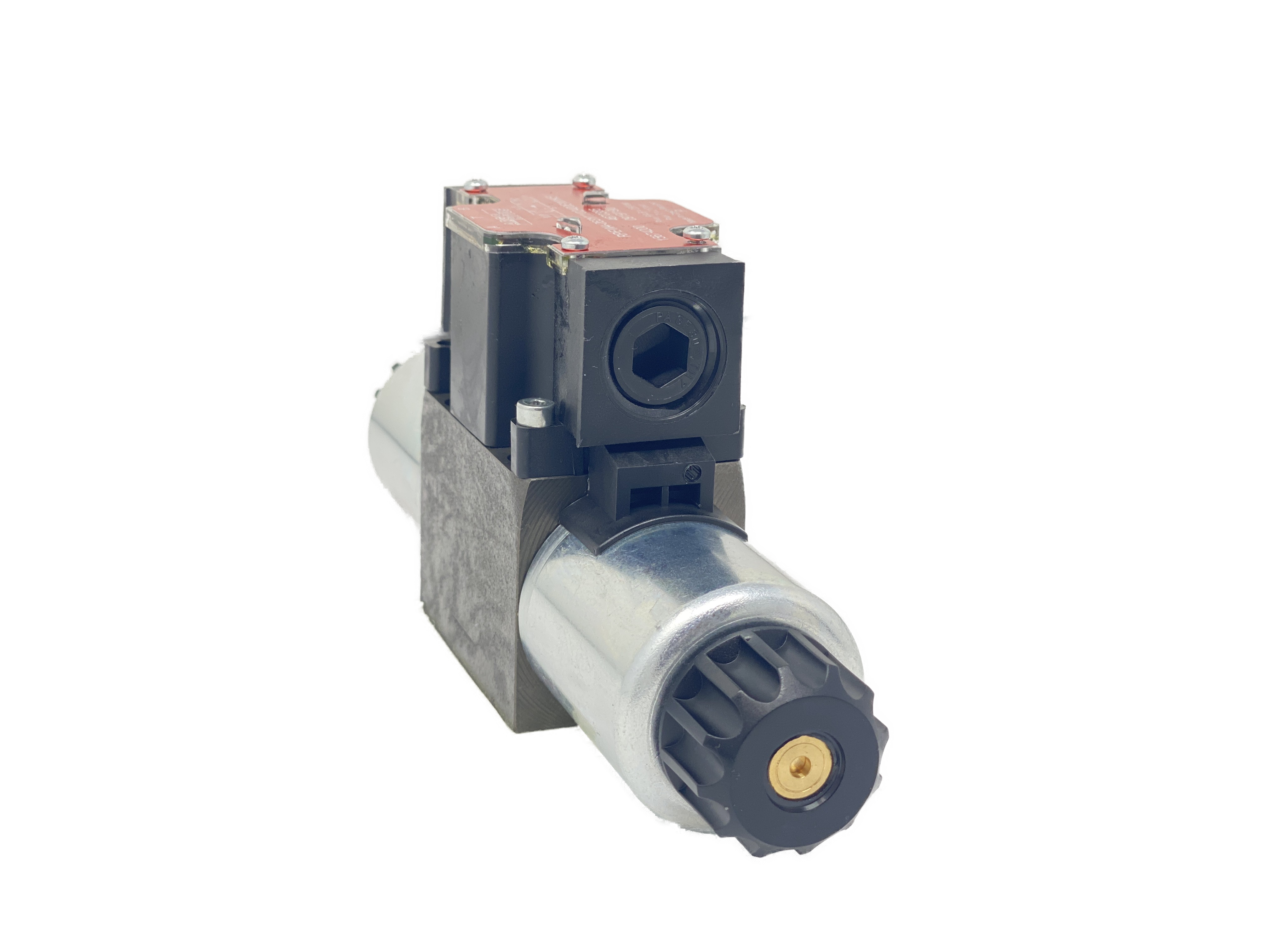

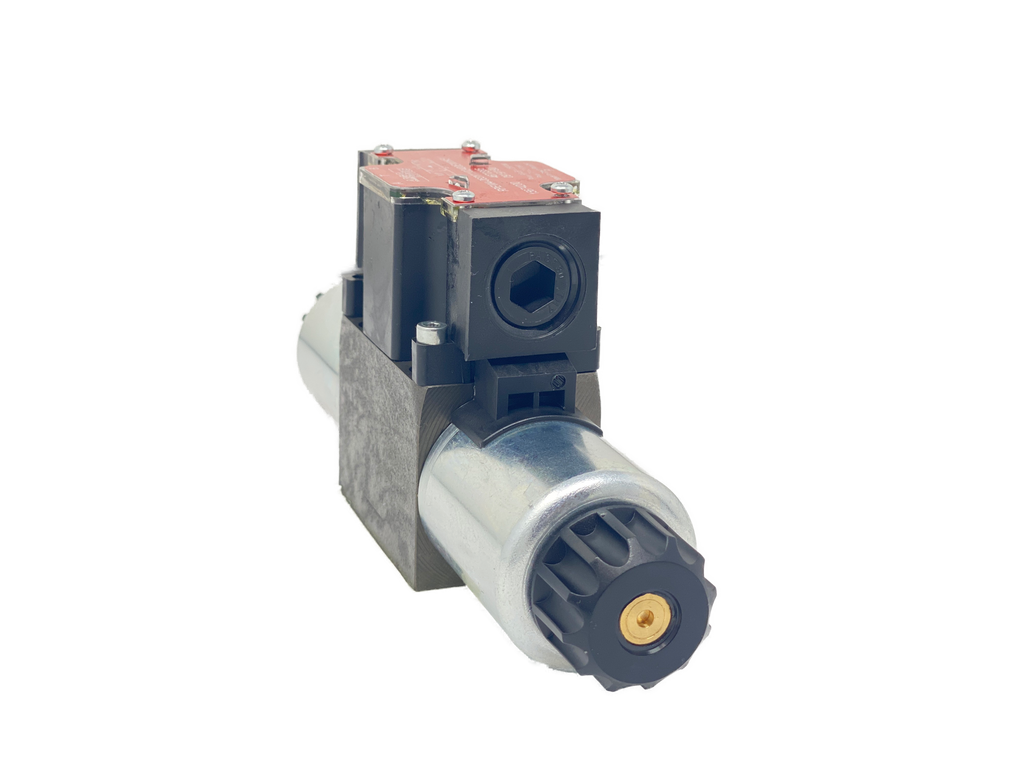

RPEW4-063C11/01200EW1K51 : Argo DCV, D03, 21GPM, 5100psi, 3P4W, 12 VDC, Wiring Box with Lights, Spring Return, Tandem Spool
RPEW4-063C11/01200EW1K51 : Argo DCV, D03, 21GPM, 5100psi, 3P4W, 12 VDC, Wiring Box with Lights, Spring Return, Tandem Spool
RPEW4-063C11/01200EW1K51 : Argo DCV, D03, 21GPM, 5100psi, 3P4W, 12 VDC, Wiring Box with Lights, Spring Return, Tandem Spool
Roll over image to zoom in Click on image to zoom
RPEW4-063C11/01200EW1K51 : Argo DCV, D03, 21GPM, 5100psi, 3P4W, 12 VDC, Wiring Box with Lights, Spring Return, Tandem SpoolRPEW4-063C11/01200EW1K51 : Argo DCV, D03, 21GPM, 5100psi, 3P4W, 12 VDC, Wiring Box with Lights, Spring Return, Tandem SpoolRPEW4-063C11/01200EW1K51 : Argo DCV, D03, 21GPM, 5100psi, 3P4W, 12 VDC, Wiring Box with Lights, Spring Return, Tandem Spool

RPEW4-063C11/01200EW1K51 : Argo DCV, D03, 21GPM, 5100psi, 3P4W, 12 VDC, Wiring Box with Lights, Spring Return, Tandem Spool

Save $17.89
Argo-HytosSKU: 15674900
Same Day
2
0
Price:
$184.99 $202.88

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 0
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Type Subplate/Manifold Mounted Valve

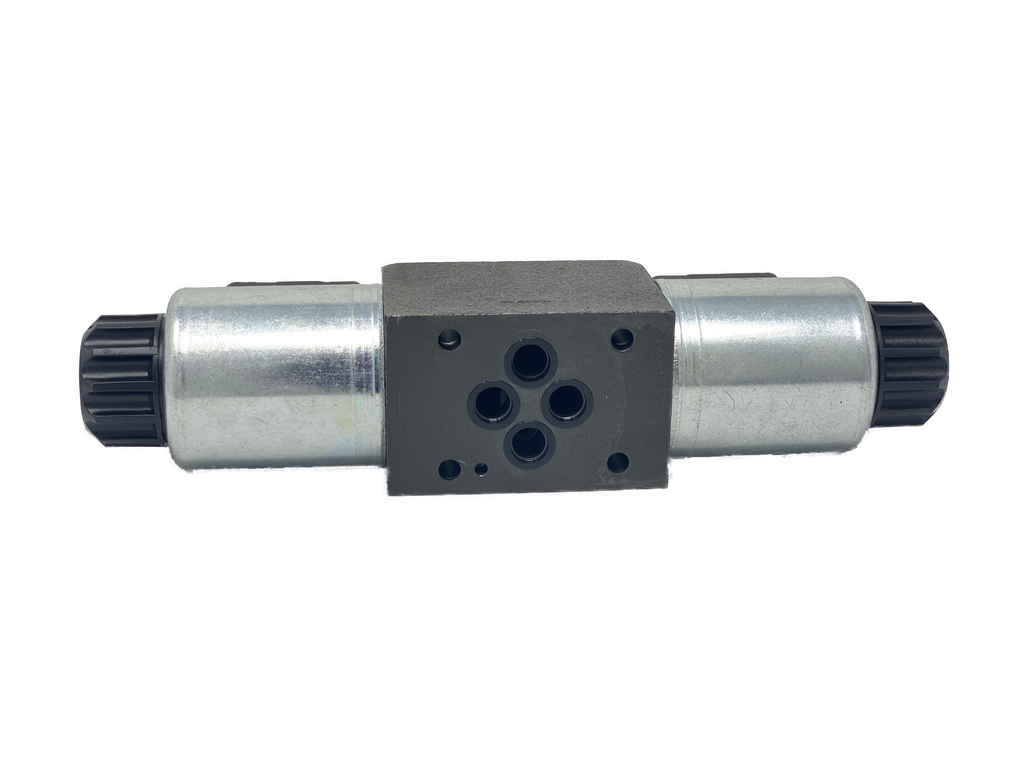

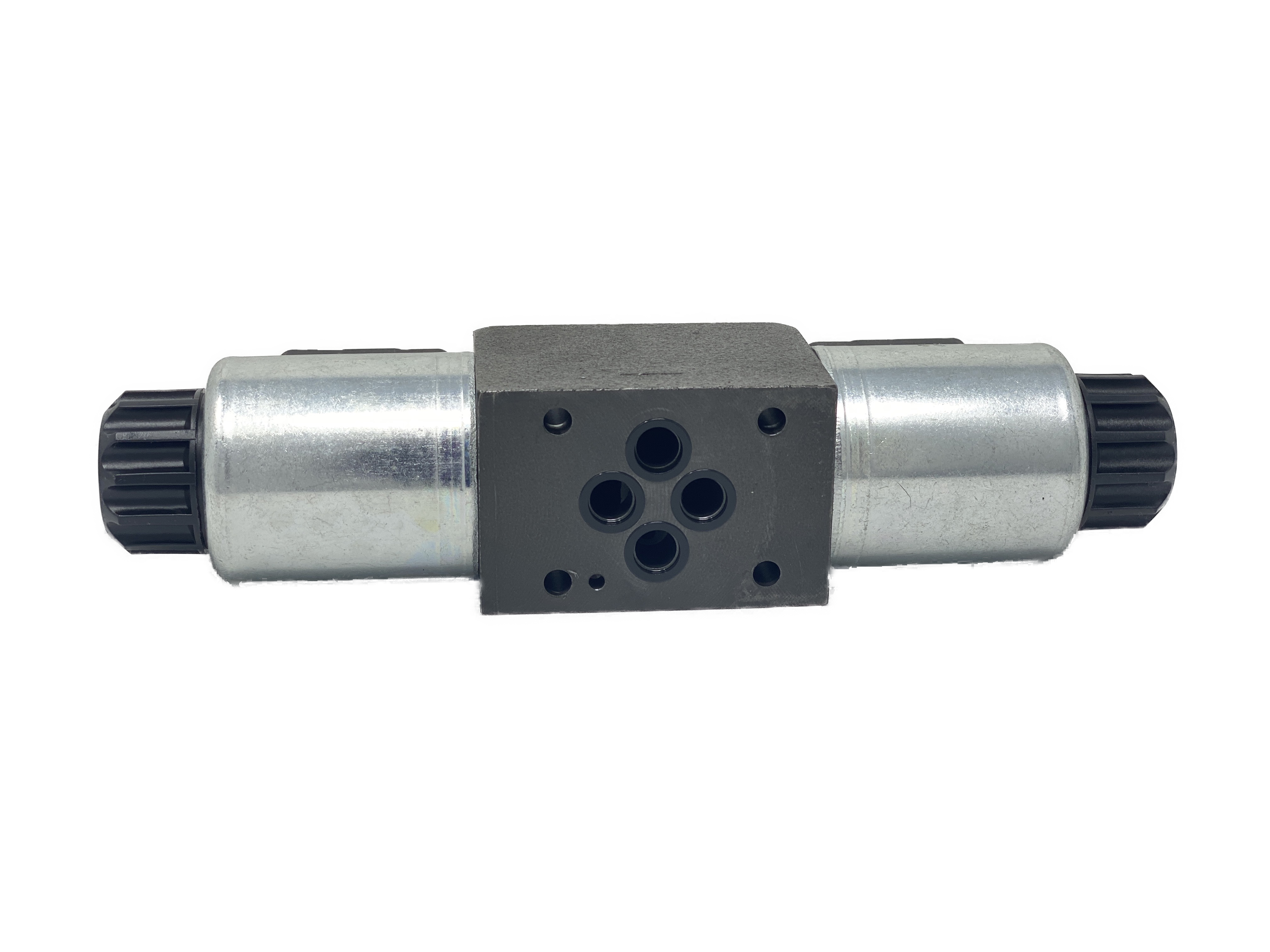

Valve Interface D03 (NG6)
Flow Rating 21
Pressure Rating 5100
Voltage 12 VDC
Actuation Type Solenoid Operated
Solenoid Electrical Connection Wiring Box with Lights

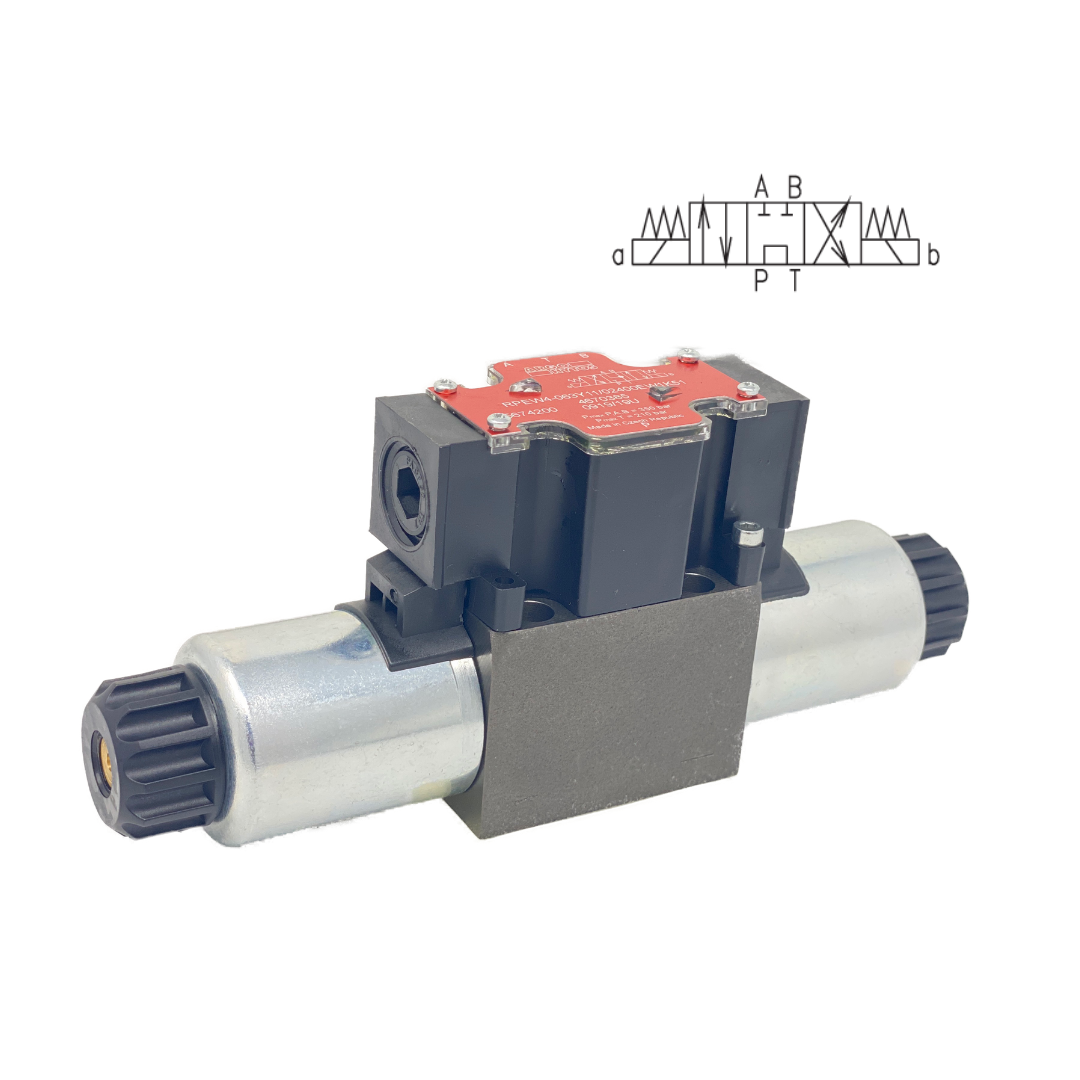

Spool Configuration Tandem Spool, P to T with A & B Blocked in Neutral
Positions 3-Position
Way 4-Way
Country of Manufacture Czech Republic
Height 5.94
Length 10.66
Width 1.79
Weight 4.85

Description

Direct acting, directional control valve with subplate mounting interface acc. to ISO 4401, DIN 24340 (CETOP 03). High transmitted hydraulic power up to 350 bar with optimized design to minimize pressure drop. Five chamber housing design with reduced hydraulic power dependence on fluid viscosity. The valve is available with interchangeable DC solenoids, also for AC power supply using a built-in rectifier bridge. Wide range of solenoid electrical terminal versions, interchangeable spools and manual overrides available. The coil is fastened to the core tube with a retaining nut and can be rotated by 360-degrees to suit the available space. In the standard version, the valve housing is phosphated.
