RPE3-062H11/02400E1 : Argo Hytos Directional Control Valve, D03 (NG6), 21GPM, 5100psi, 2P4W, 24 VDC, DIN, Spring Return, All Ports Open in Neutral, Coil Side B
RPE3-062H11/02400E1 : Argo Hytos Directional Control Valve, D03 (NG6), 21GPM, 5100psi, 2P4W, 24 VDC, DIN, Spring Return, All Ports Open in Neutral, Coil Side B
RPE3-062H11/02400E1 : Argo Hytos Directional Control Valve, D03 (NG6), 21GPM, 5100psi, 2P4W, 24 VDC, DIN, Spring Return, All Ports Open in Neutral, Coil Side B
RPE3-062H11/02400E1 : Argo Hytos Directional Control Valve, D03 (NG6), 21GPM, 5100psi, 2P4W, 24 VDC, DIN, Spring Return, All Ports Open in Neutral, Coil Side B
RPE3-062H11/02400E1 : Argo Hytos Directional Control Valve, D03 (NG6), 21GPM, 5100psi, 2P4W, 24 VDC, DIN, Spring Return, All Ports Open in Neutral, Coil Side B
Roll over image to zoom in Click on image to zoom
RPE3-062H11/02400E1 : Argo Hytos Directional Control Valve, D03 (NG6), 21GPM, 5100psi, 2P4W, 24 VDC, DIN, Spring Return, All Ports Open in Neutral, Coil Side BRPE3-062H11/02400E1 : Argo Hytos Directional Control Valve, D03 (NG6), 21GPM, 5100psi, 2P4W, 24 VDC, DIN, Spring Return, All Ports Open in Neutral, Coil Side BRPE3-062H11/02400E1 : Argo Hytos Directional Control Valve, D03 (NG6), 21GPM, 5100psi, 2P4W, 24 VDC, DIN, Spring Return, All Ports Open in Neutral, Coil Side BRPE3-062H11/02400E1 : Argo Hytos Directional Control Valve, D03 (NG6), 21GPM, 5100psi, 2P4W, 24 VDC, DIN, Spring Return, All Ports Open in Neutral, Coil Side BRPE3-062H11/02400E1 : Argo Hytos Directional Control Valve, D03 (NG6), 21GPM, 5100psi, 2P4W, 24 VDC, DIN, Spring Return, All Ports Open in Neutral, Coil Side B

RPE3-062H11/02400E1 : Argo Hytos Directional Control Valve, D03 (NG6), 21GPM, 5100psi, 2P4W, 24 VDC, DIN, Spring Return, All Ports Open in Neutral, Coil Side B

Save $10.80
Argo-HytosSKU: 15741800
3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock
0
Price:
$114.99 $125.79

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock
Factory Stock 0
Factory Location Bowling Green, Ohio
Valve Type Subplate/Manifold Mounted Valve
Valve Interface D03 (NG6)
Flow Rating 21
Pressure Rating 5100
Voltage 24 VDC
Actuation Type Solenoid Operated
Solenoid Electrical Connection DIN Connector EN 175301-803-A
Spool Configuration All Ports Connected in Neutral, H11
Positions 2-Position
Way 4-Way
Country of Manufacture Czech Republic
Height 2.7
Length 8.4
Width 1.79
Weight 4.85

Description

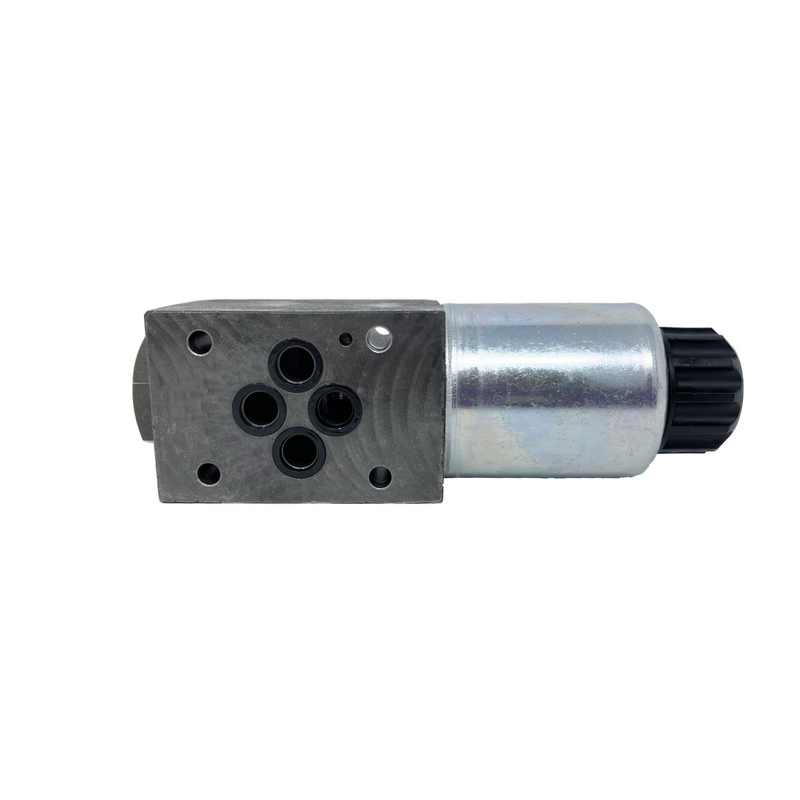

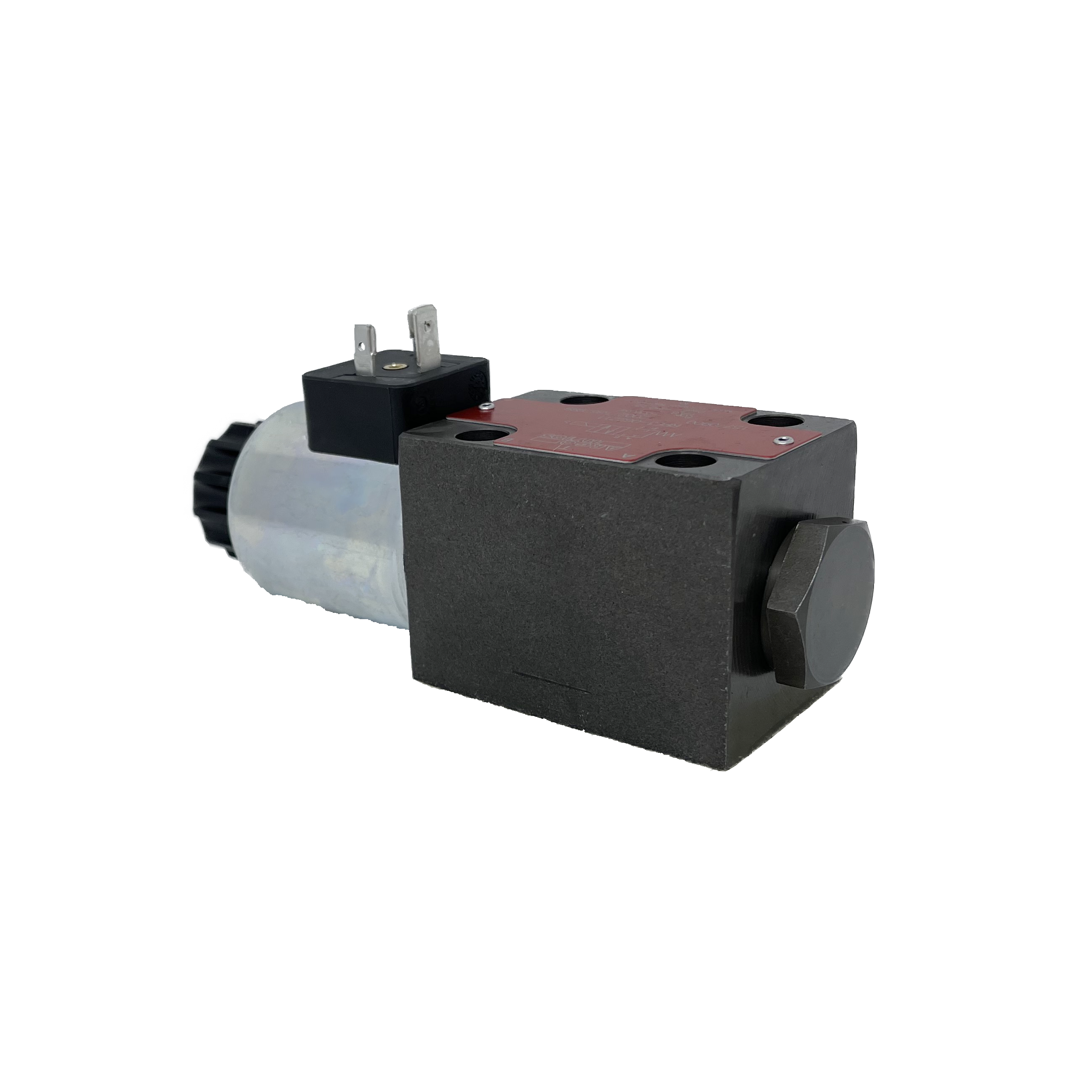

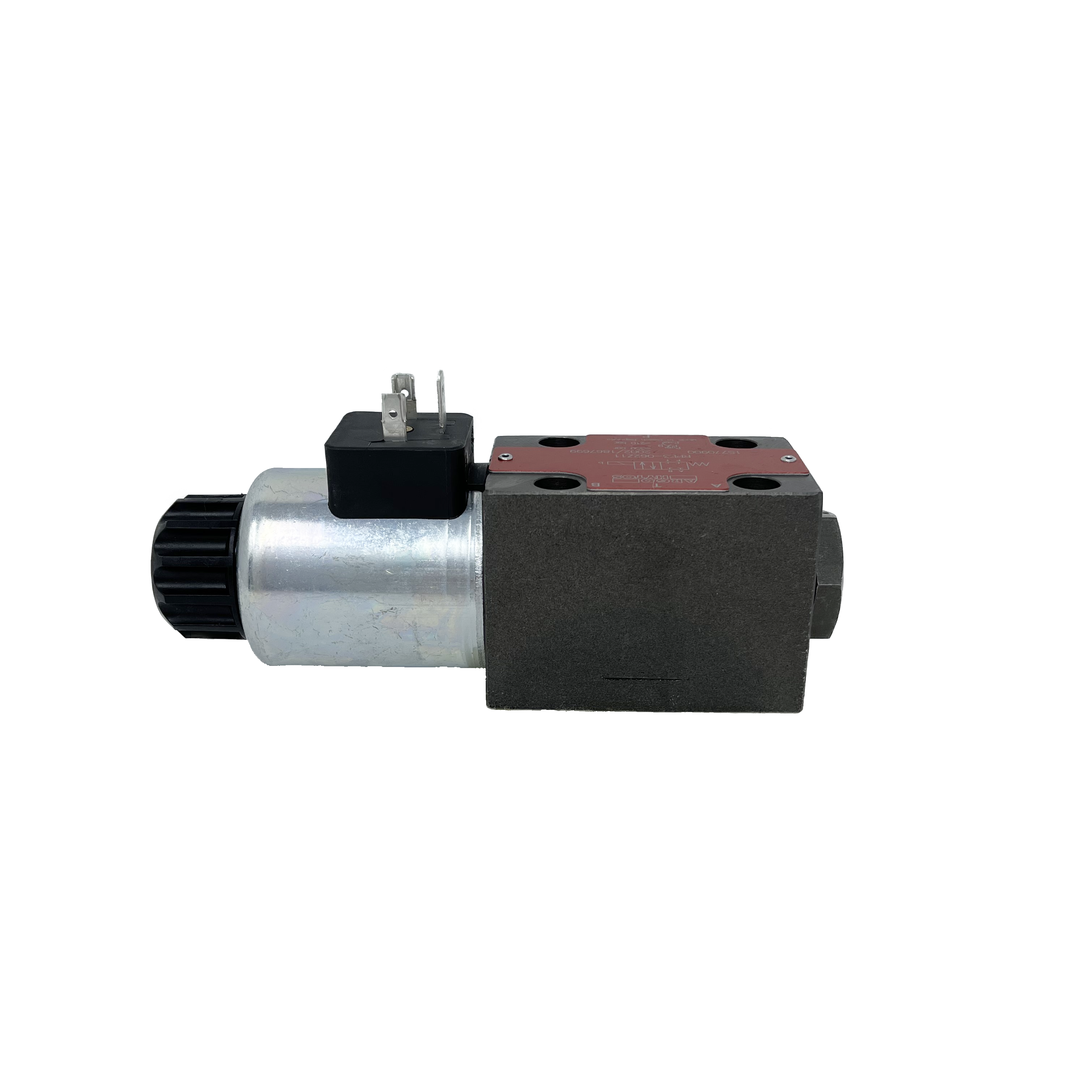

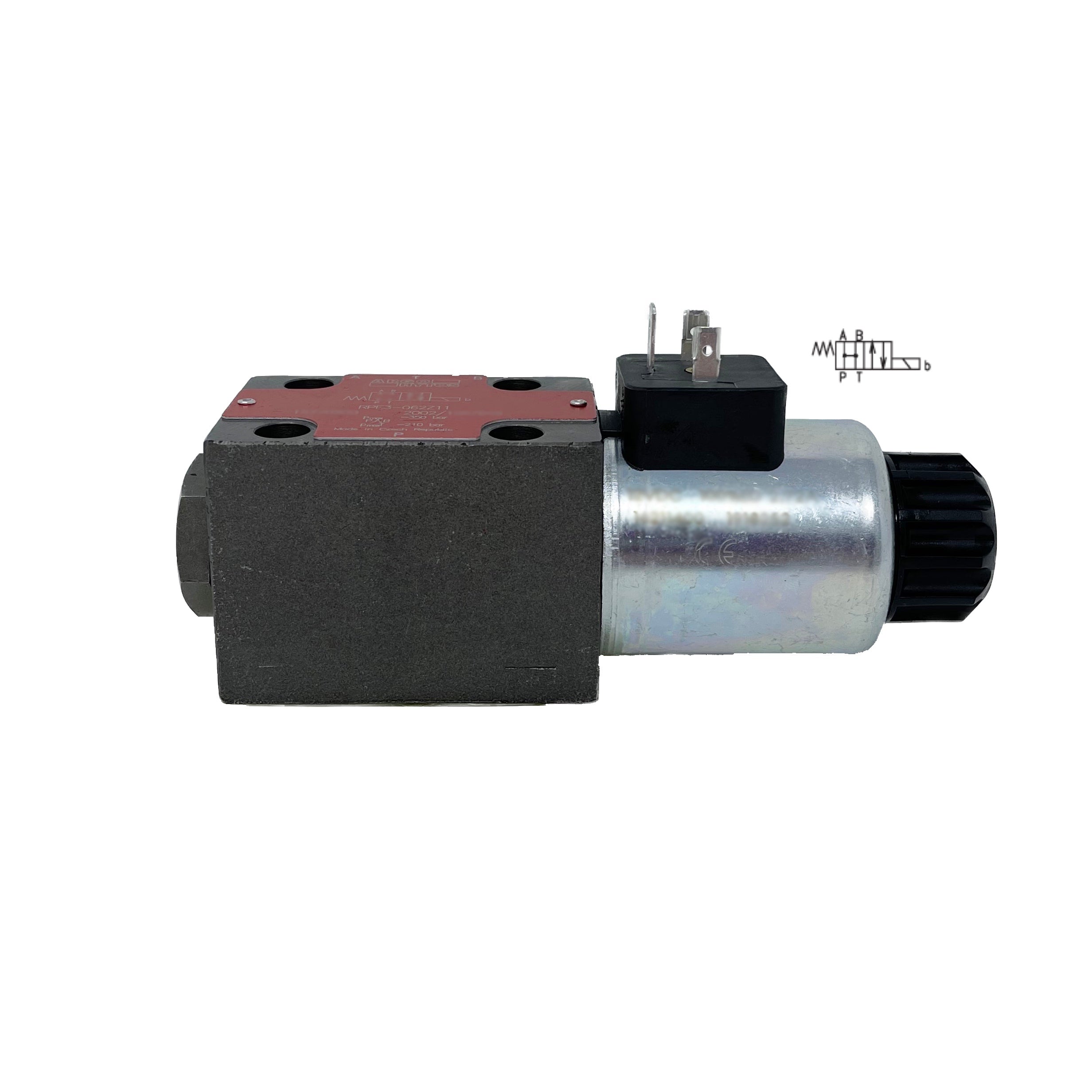

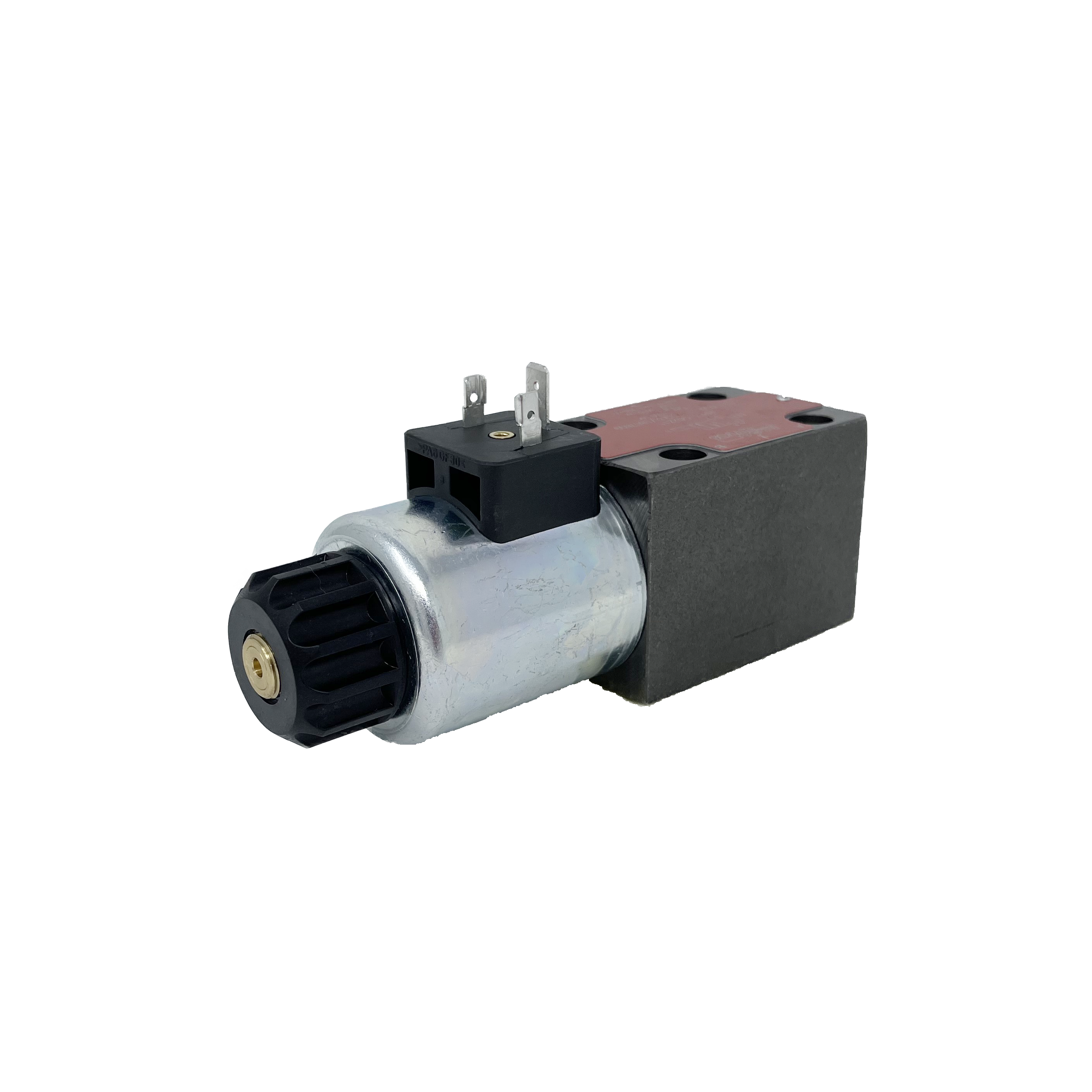

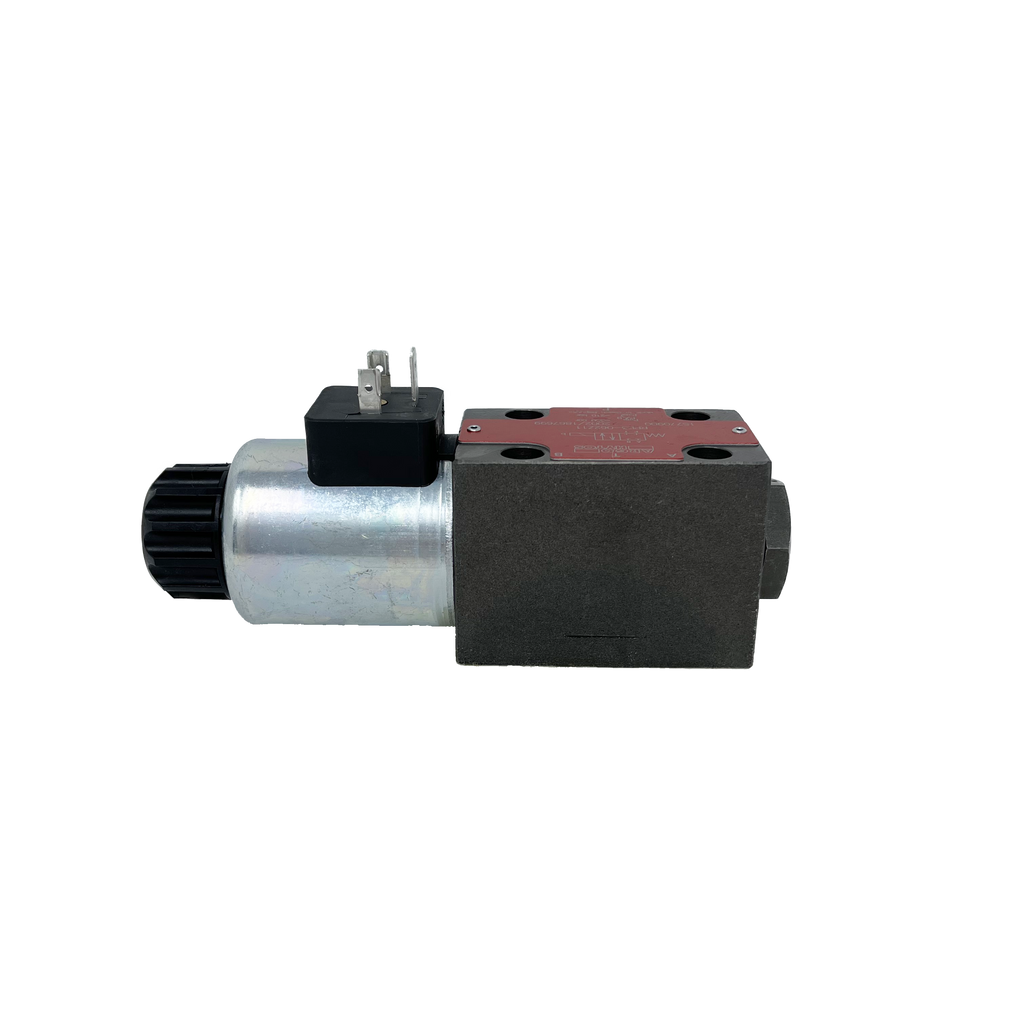

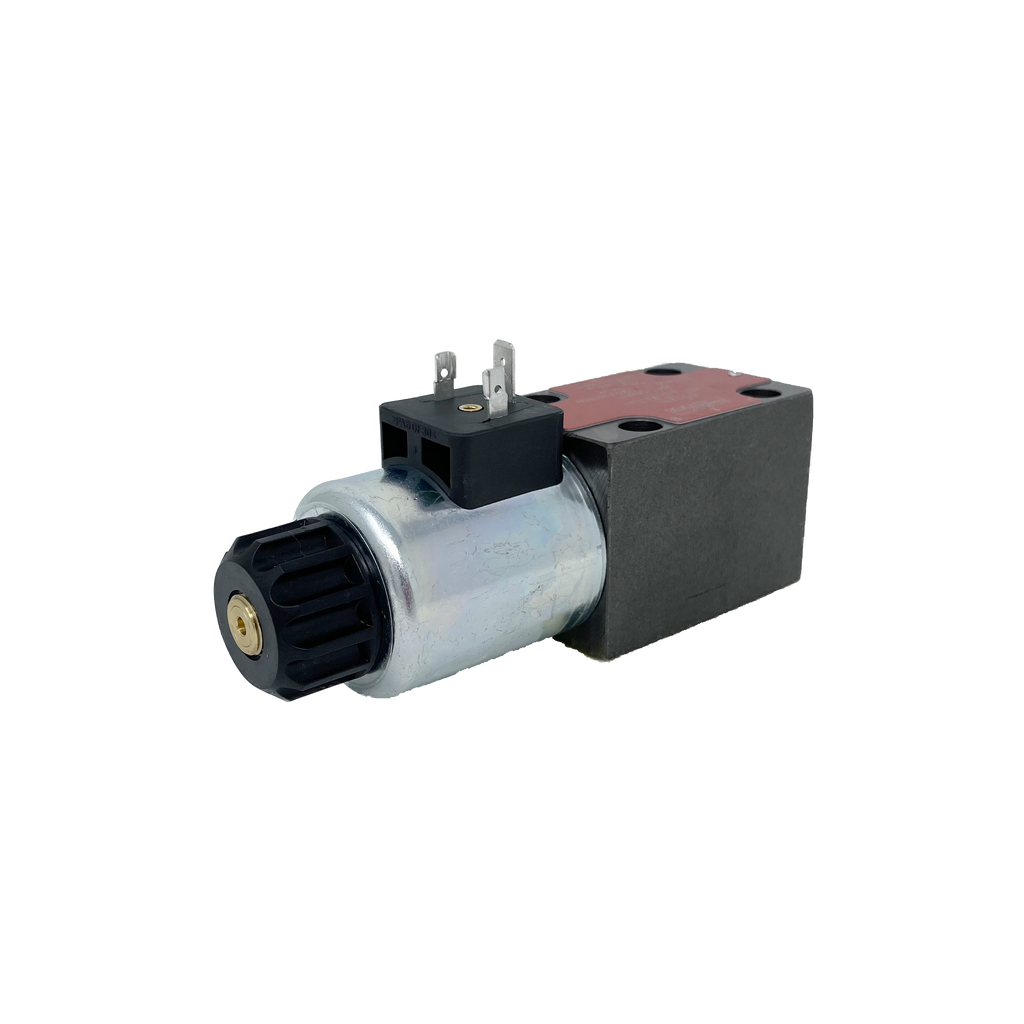

The Argo-Hytos direct-acting, solenoid operated directional control valve with Subplate Mounting is designed to interface according to ISO 4401. Rated up to 5100psi, this valve has optimized design for minimal pressure drop. The valve is available with interchangeable DC solenoids, and with AC power supply using a built-in rectifier bridge. The coil is fastened to the core tube with a retaining nut and can be rotated by 360-degrees to suit the available space. Options are available for multiple spool types.
