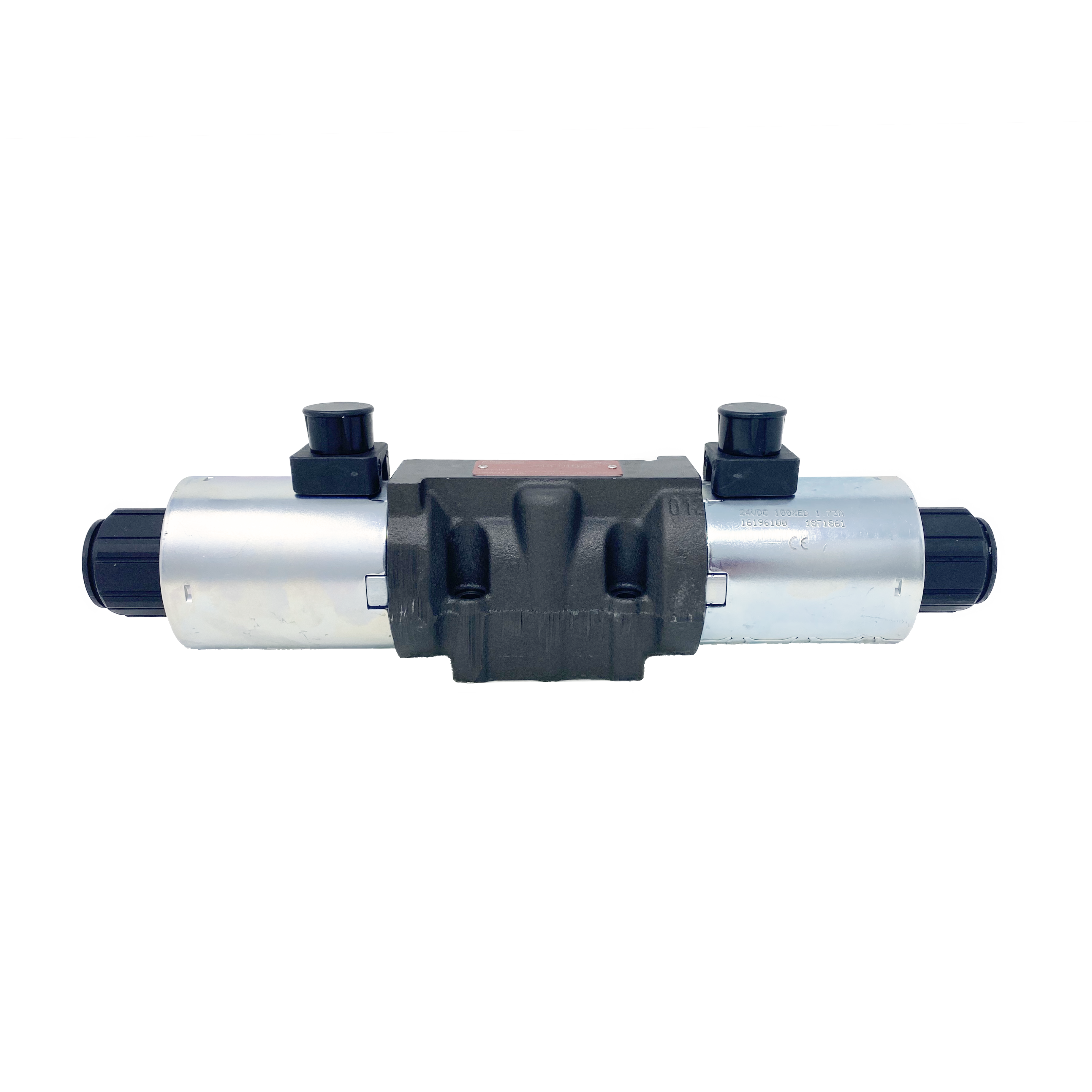

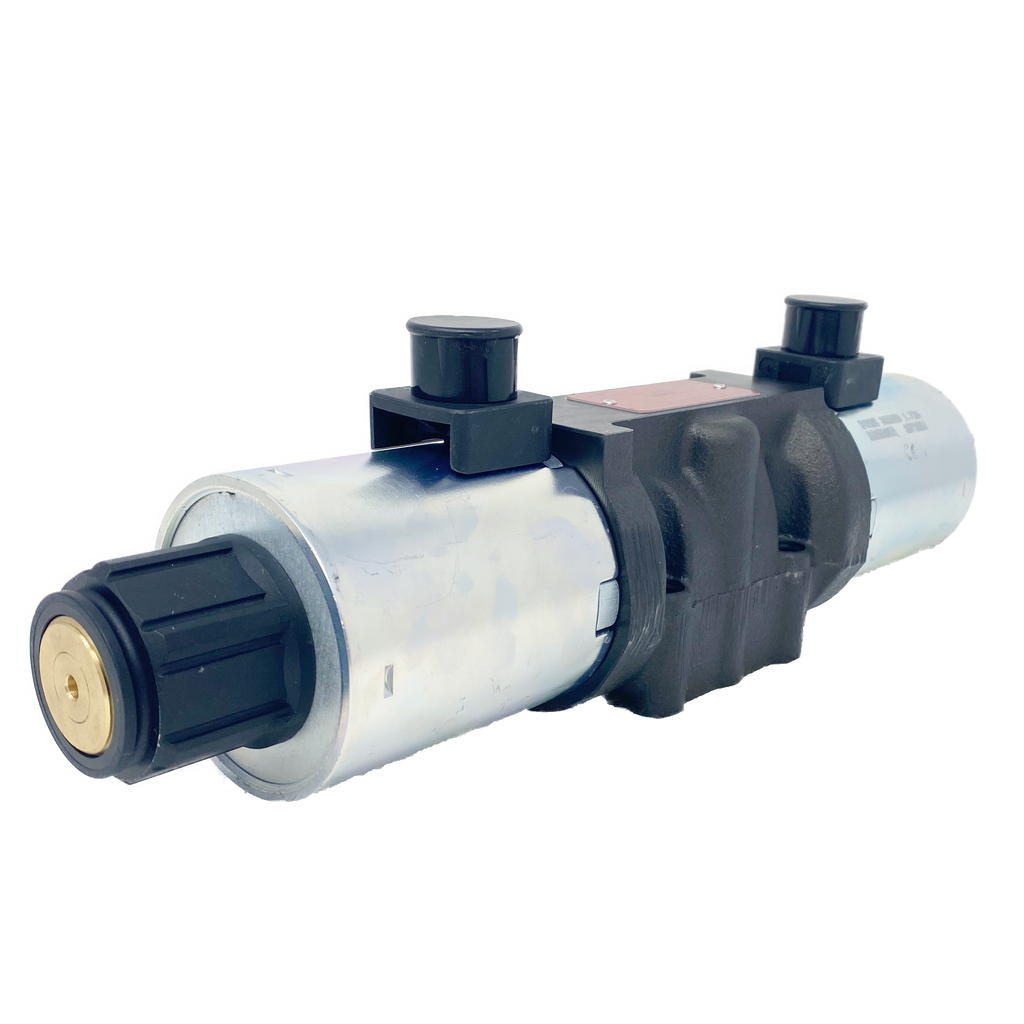

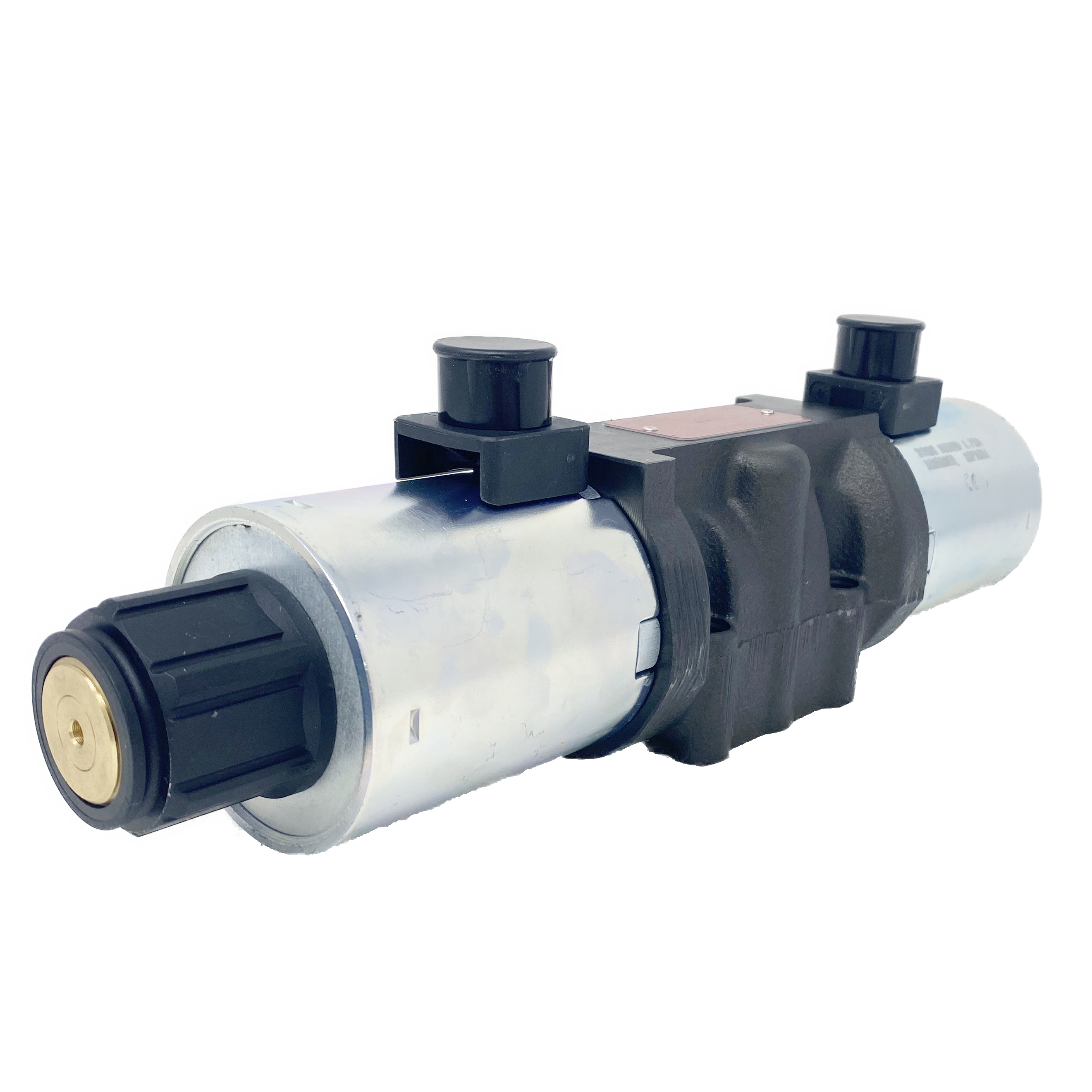

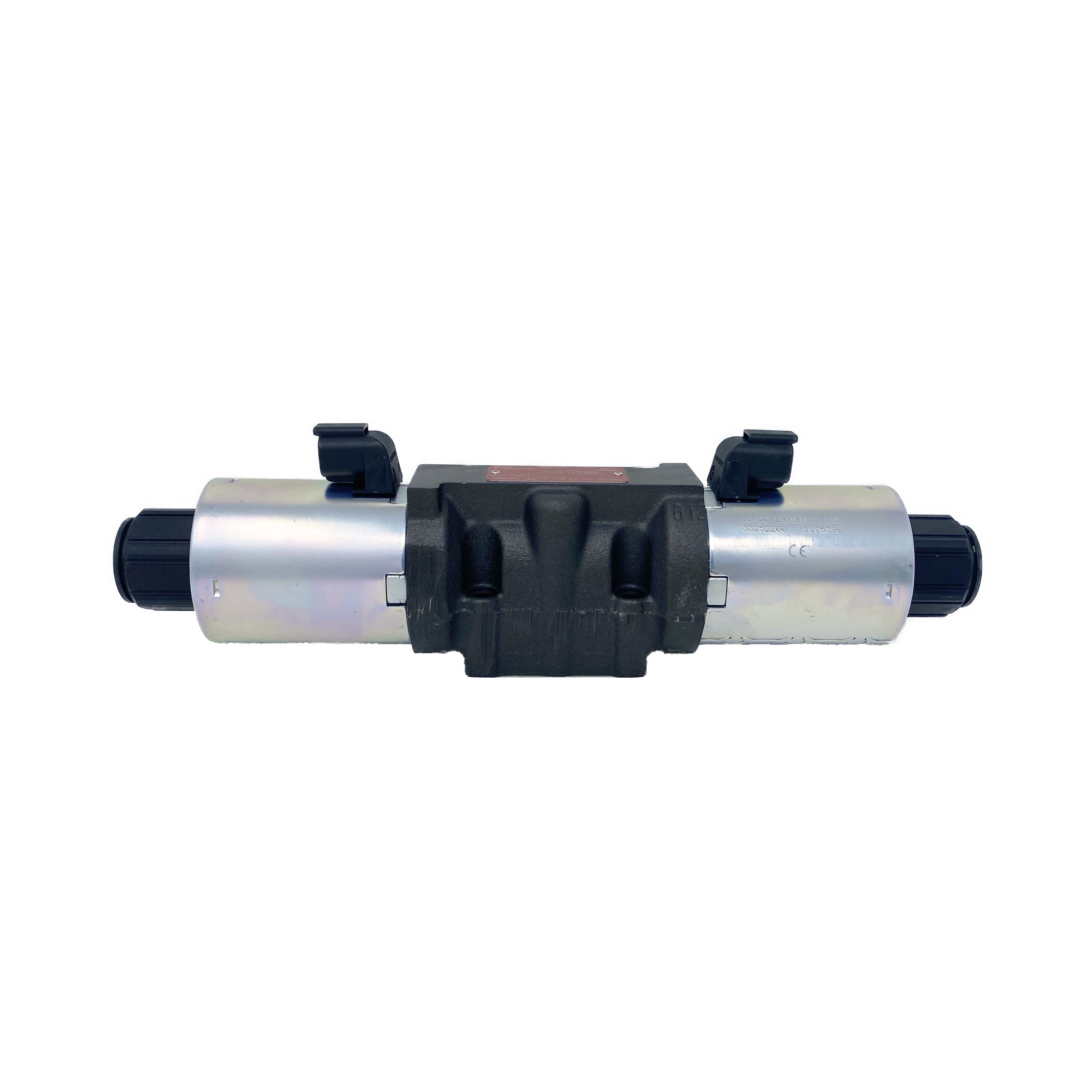

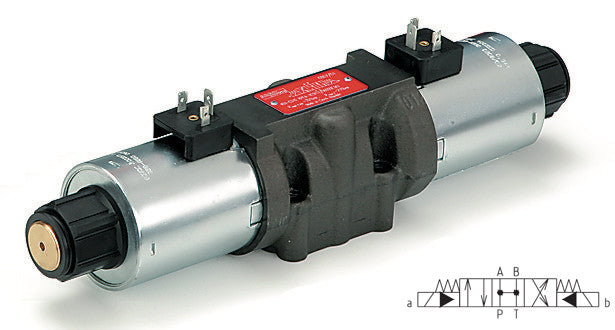

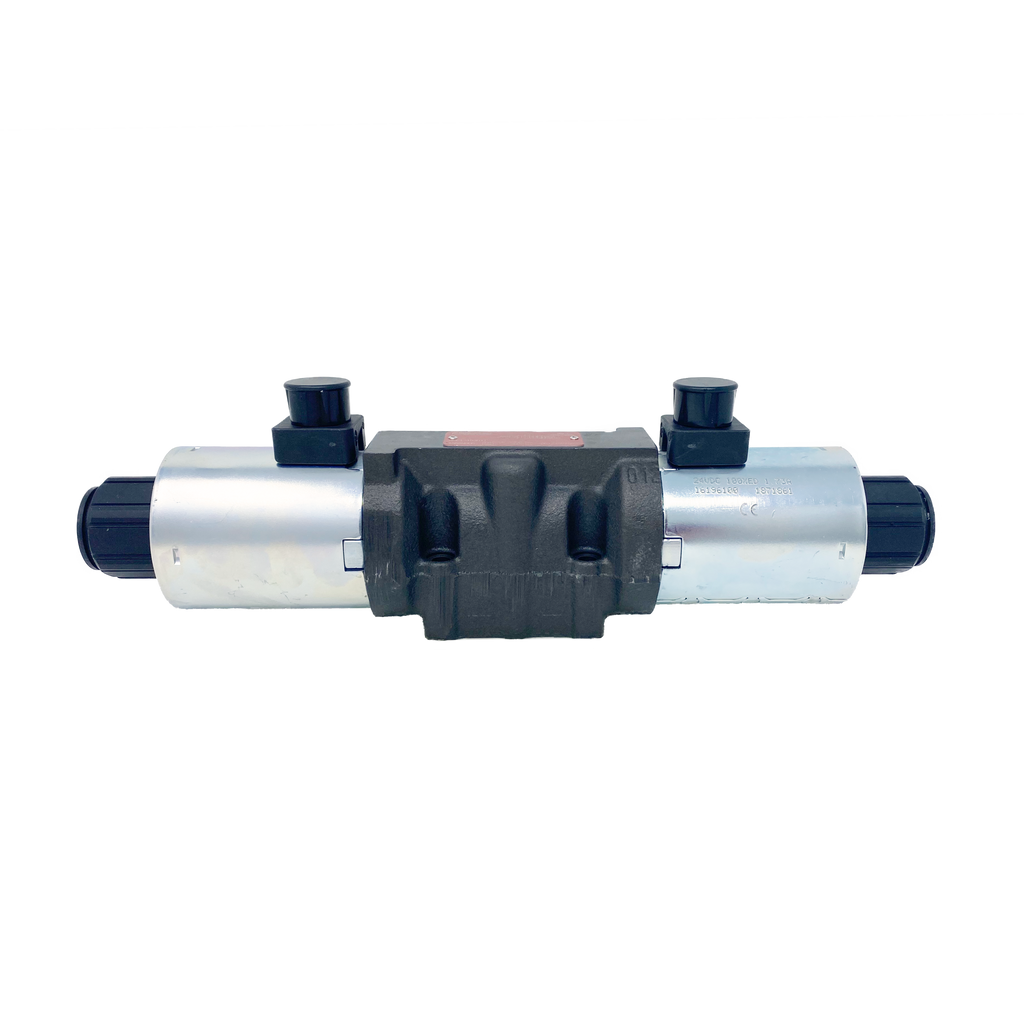

RPE4-103H11/02400E1 : Argo DCV, D05 (NG10), 37GPM, 5100psi, 3P4W, 24 VDC, DIN, Spring Return, Open in Neutral
RPE4-103H11/02400E1 : Argo DCV, D05 (NG10), 37GPM, 5100psi, 3P4W, 24 VDC, DIN, Spring Return, Open in Neutral
RPE4-103H11/02400E1 : Argo DCV, D05 (NG10), 37GPM, 5100psi, 3P4W, 24 VDC, DIN, Spring Return, Open in Neutral
RPE4-103H11/02400E1 : Argo DCV, D05 (NG10), 37GPM, 5100psi, 3P4W, 24 VDC, DIN, Spring Return, Open in Neutral
Roll over image to zoom in Click on image to zoom
RPE4-103H11/02400E1 : Argo DCV, D05 (NG10), 37GPM, 5100psi, 3P4W, 24 VDC, DIN, Spring Return, Open in NeutralRPE4-103H11/02400E1 : Argo DCV, D05 (NG10), 37GPM, 5100psi, 3P4W, 24 VDC, DIN, Spring Return, Open in NeutralRPE4-103H11/02400E1 : Argo DCV, D05 (NG10), 37GPM, 5100psi, 3P4W, 24 VDC, DIN, Spring Return, Open in NeutralRPE4-103H11/02400E1 : Argo DCV, D05 (NG10), 37GPM, 5100psi, 3P4W, 24 VDC, DIN, Spring Return, Open in Neutral

RPE4-103H11/02400E1 : Argo DCV, D05 (NG10), 37GPM, 5100psi, 3P4W, 24 VDC, DIN, Spring Return, Open in Neutral

Save $27.43
Argo-HytosSKU: 15892700
Same Day
8
148
Price:
$283.99 $311.42

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 148
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Type Subplate/Manifold Mounted Valve
Valve Interface D05 (NG10)
Flow Rating 37
Pressure Rating 5100
Voltage 24 VDC
Actuation Type Solenoid Operated
Solenoid Electrical Connection DIN Connector EN 175301-803-A
Spool Configuration P, T, A, B Open in Neutral
Positions 3-Position
Way 4-Way
Country of Manufacture Czech Republic
Height 3.7
Length 15.39
Width 2.69
Weight 11.9

Description

Direct acting, directional control valve with subplate mounting interface acc. to ISO 4401, DIN 24340 (CETOP 03). High transmitted hydraulic power up to 350 bar with optimized design to minimize pressure drop. Five chamber housing design with reduced hydraulic power dependence on fluid viscosity. The valve is available with interchangeable DC solenoids, also for AC power supply using a built-in rectifier bridge. Wide range of solenoid electrical terminal versions, interchangeable spools and manual overrides available. The coil is fastened to the core tube with a retaining nut and can be rotated by 360-degrees to suit the available space. In the standard version, the valve housing is phosphated.
