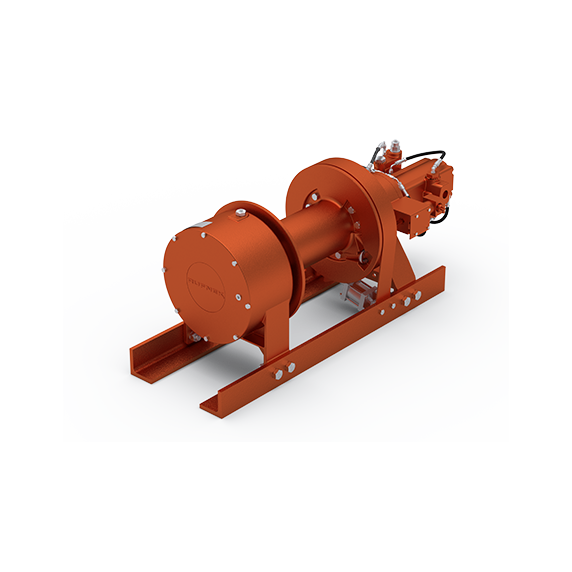

15BBX4R6G : DP Winch, 15,000lb Bare Drum Pull, Base without Fairlead, Air/Hyd Kickout, CW, Less than 20GPM Motor, 5.5" Barrel x 13.19" Length x 12.75" Flange
Roll over image to zoom in Click on image to zoom
15BBX4R6G : DP Winch, 15,000lb Bare Drum Pull, Base without Fairlead, Air/Hyd Kickout, CW, Less than 20GPM Motor, 5.5" Barrel x 13.19" Length x 12.75" Flange

15BBX4R6G : DP Winch, 15,000lb Bare Drum Pull, Base without Fairlead, Air/Hyd Kickout, CW, Less than 20GPM Motor, 5.5" Barrel x 13.19" Length x 12.75" Flange

DP WinchSKU: 15BBX4R6G
6-8 Weeks
Price:
$6,885.99

Product Details

Special Message Base without Fairlead
Data Sheet Download Datasheet
Usually Ships Within 6-8 Weeks
Factory Location Jenks, Oklahoma
Service Manual Download

Click here to download

Hydraulic Motor Pressure 2600psi
Country of Manufacture United States
Height 12.94
Length 24.19
Width 14.13
Weight 280
Drum Flange Diameter 12.75"
Brake Option N/A
Drum Length 13.19"
Drum Rotation Clockwise
Max Bare Drum Line Pull 15,000 lbs
Max Full Drum Line Pull 7,780 lbs
Max Bare Drum Line Speed 36 ft/min
Max Full Drum Line Pull 7,780 lbs
Max Full Drum Line Speed 69 ft/min

Description

With over 75 years of experience and knowledge, TWG's planetary winches have the strength to pull you out of trouble. Their planetary winches are commonly used in the Infrastructure, Recovery, Energy & Marine markets custom built for each application. With line pull ratings from 3,000 lbs to 270,000 lbs, they have a winch that can handle your requirements.
