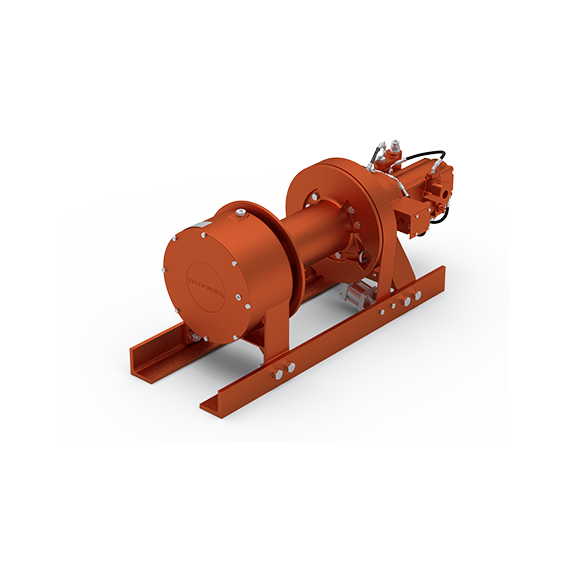

15BBX5L2G : DP Winch, 15,000lb Bare Drum Pull, Base without Fairlead, Manual Kickout/Spring Engage, CCW, Less than 25GPM Motor, 5.5" Barrel x 13.19" Length x 12.75" Flange

Save $189.90
DP WinchSKU: 15BBX5L2G
6-8 Weeks

Price:
Sale price$6,631.10 Regular price$6,821.00

Product Details

Special Message Base without Fairlead
Data Sheet Download Datasheet
Usually Ships Within 6-8 Weeks
Factory Location Jenks, Oklahoma
Service Manual Download

Click here to download

Hydraulic Motor Pressure 2500psi
Country of Manufacture United States
Height 12.94
Length 24.19
Width 14.13
Weight 280
Drum Flange Diameter 12.75"
Brake Option N/A
Drum Length 13.19"
Drum Rotation Counterclockwise
Max Bare Drum Line Pull 15,000 lbs
Max Full Drum Line Pull 7,780 lbs
Max Bare Drum Line Speed 48 ft/min
Max Full Drum Line Pull 7,780 lbs
Max Full Drum Line Speed 42 ft/min

Description

With over 75 years of experience and knowledge, TWG's planetary winches have the strength to pull you out of trouble. Their planetary winches are commonly used in the Infrastructure, Recovery, Energy & Marine markets custom built for each application. With line pull ratings from 3,000 lbs to 270,000 lbs, they have a winch that can handle your requirements.
