Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Material | Steel |
| Shape | Straight |
| Country of Manufacture | India |
| Side 1 Gender | MALE |
| Side 1 Size | 1-1/16-12 (-12) |
| Side 1 Type | JIC |
| Side 2 Gender | FLANGE |
| Side 2 Size | 3/4" (-12) |
| Side 2 Type | CODE 62 |
Description

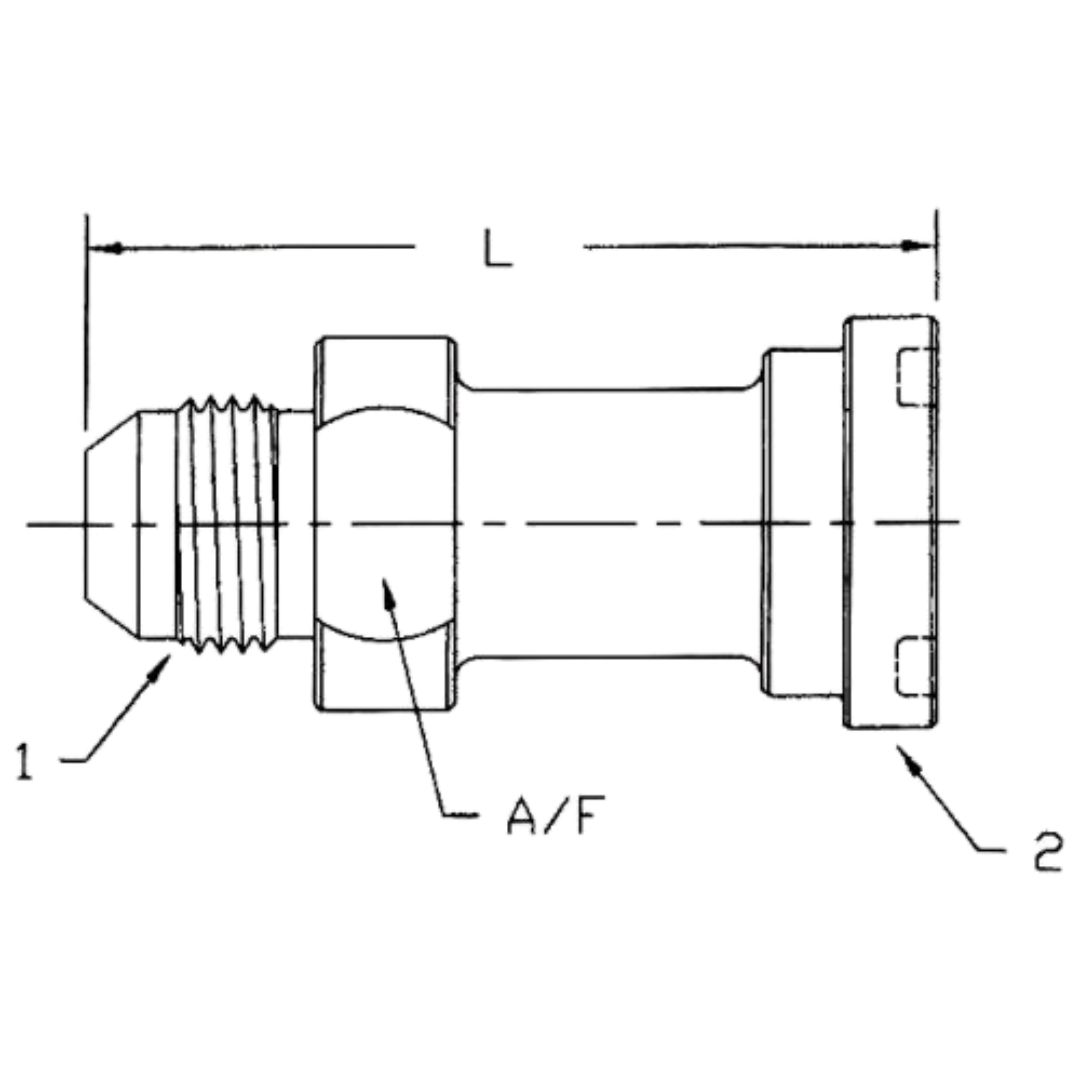

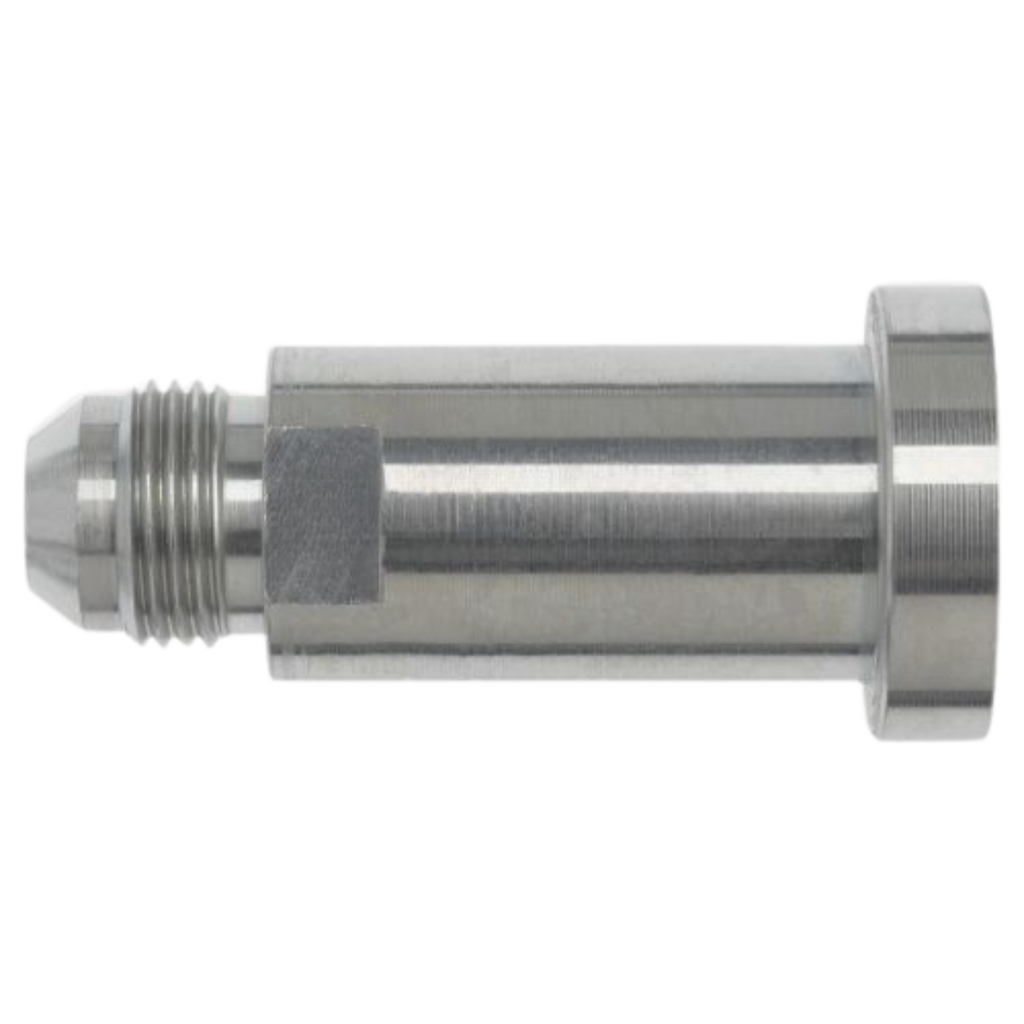

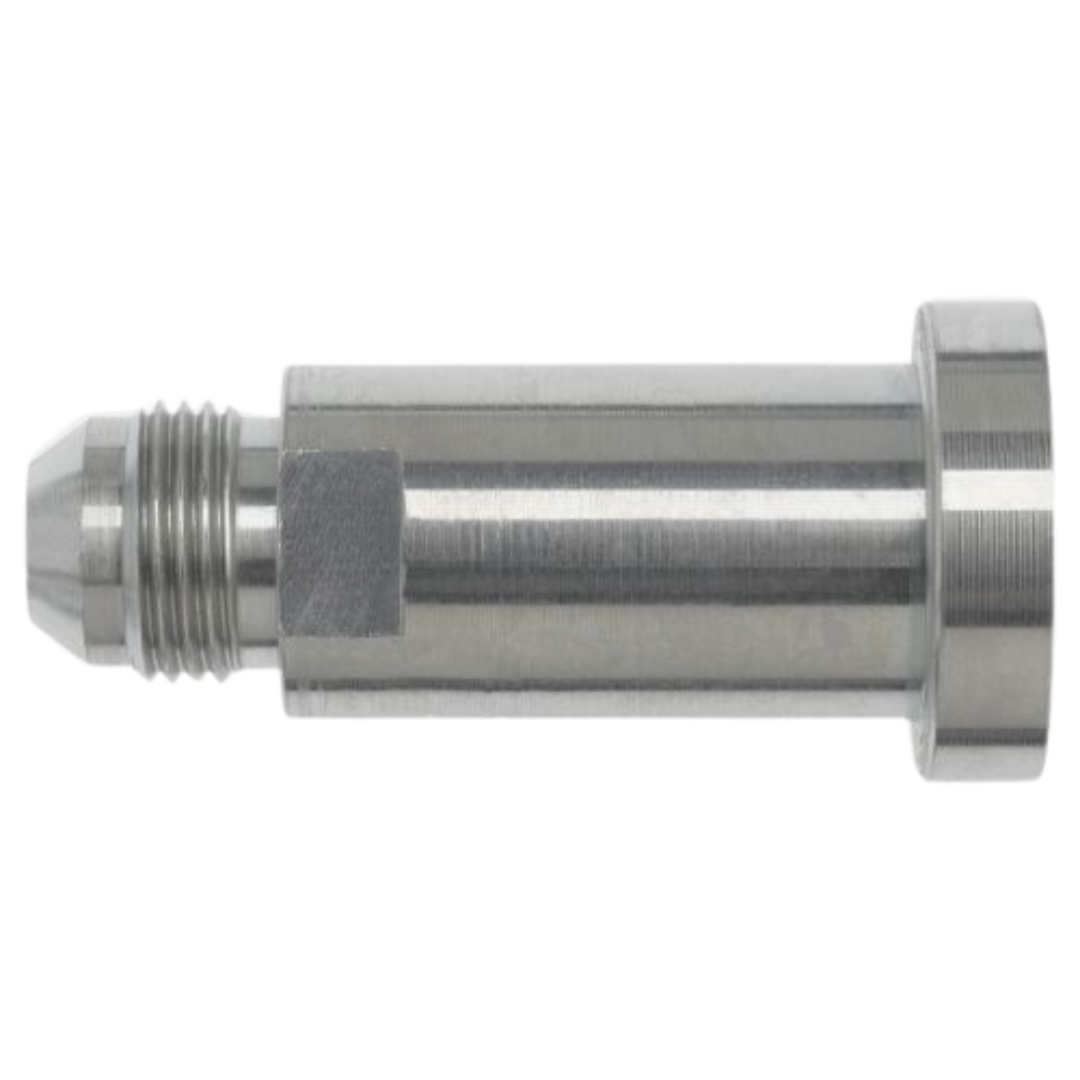

Our Series 1800 Straight Male JIC x Code 62 Flange Head adapters, made from carbon steel, are designed to connect male JIC fittings with Code 62 flanges in hydraulic systems. The male JIC connection uses a 37-degree flare for a reliable, mechanical seal, ensuring secure fluid transfer. Code 62 flange heads feature a flat face and bolt holes, providing a strong and stable connection to flanged ports, making it ideal for high-pressure applications. Code 61 and Code 62 differ primarily in their pressure ratings and design: Code 61 flanges are used for lower pressure systems, while Code 62 flanges are designed for higher pressure applications, providing a more robust, leak-free seal. These adapters are essential for applications that demand strength and dependability in fluid systems.
