SMB-20-E1-8 : Stauff Complete 8-Gauge Test Kit with Carrying Case
Roll over image to zoom in Click on image to zoom
SMB-20-E1-8 : Stauff Complete 8-Gauge Test Kit with Carrying Case

SMB-20-E1-8 : Stauff Complete 8-Gauge Test Kit with Carrying Case

StauffSKU: 1810010904
4-6 Weeks
Price:
$1,822.99

Product Details

Usually Ships Within 4-6 Weeks
Factory Location Canton, Michigan

Description

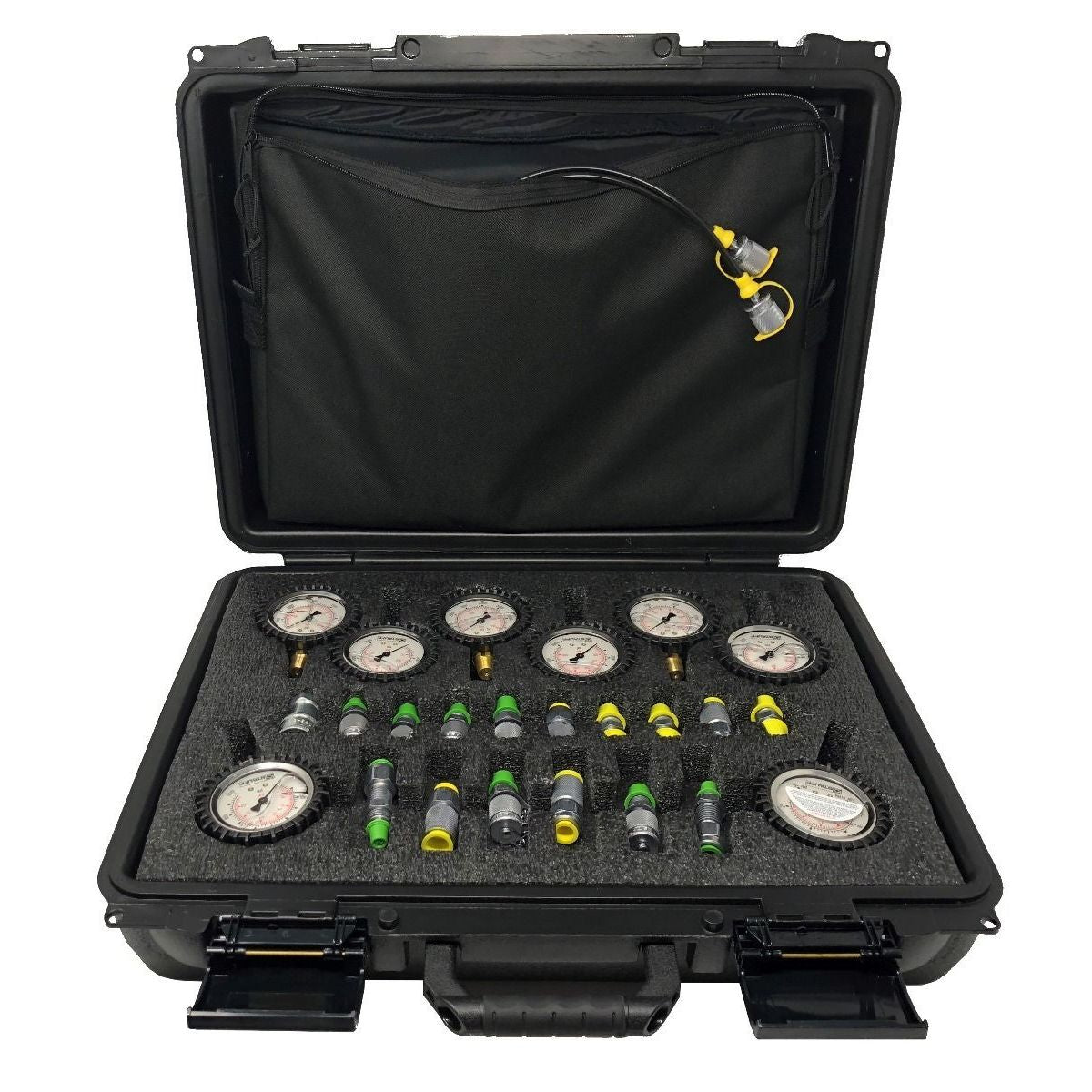

Stauff Complete 8-Gauge Test Kit with Carrying Case

Our Stauff 8-Gauge Test Kit is the perfect solution for your shop or vehicle! Every gauge you could need is in this case, complete with test points, adapters, and hose whips, so you can troubleshoot any system with ease and little to no mess. Our convenient carrying case makes this kit the perfect solution for troubleshooting on the go, and it's small enough to fit into any work truck.

Technical Data

  • Protection rating: IP 65 (EN 60 529 / IEC 529)
  • Accuracy class SPG-063: 2/1/2 % of span (per ASME B 40.100 Grade A)
  • Accuracy class SPG-100: 1% of span (per ASME B 40.100 Grade 1A)
  • Enviromental temp. range: - 20 °C ... + 60 °C / - 4 °F ... + 140 °F
  • Temperature range medium: max. + 60 °C / max. + 140 °F
  • Mechanical pressure measurement Suitable for hydraulic oil and gaseous media that do not corrode any copper base alloy.
  • Available in nominal sizes 63 and 100
  • Thread form: BSP (G1/4 and G1/2), NPT (1/4NPT and 1/2NPT), -4 SAE
  • Housing made of Stainless Steel (1.4301)
  • Sight glass made of Acrylic Glycerine filled
  • Standard dual scales with pressure indication in bar and PSI

Kit Includes:

  • qty(1) SPG-063-03030-5-S-N04 0-30 psi gauge
  • qty(1) SPG-063-00600-5-S-N04 0-600 psi guage
  • qty(1) SPG-063-01000-5-S-N04 0-1000 psi guage
  • qty(1) SPG-063-01500-5-S-N04 0-1500 psi guage
  • qty(1) SPG-063-03000-5-S-N04 0-3000 psi guage
  • qty(1) SPG-063-05000-5-S-N04 0-5000 psi guage
  • qty(1) SPG-063-07500-5-S-N04 0-7500 psi guage
  • qty(1) SPG-063-10000-5-S-N04 0-10000 psi guage
  • qty(3) SMK20-1/4NPT-VD-C6F, 1/4" NPT Test coupling
  • qty(3) SMK20-7/16UNF-VE-C6F, #4 (1/4") SAE Test coupling
  • qty(3) SMK20-9/16UNF-VE-C6F, #6 (3/8") Test coupling
  • qty(3) SMA20-1/4NPT-V-C6F, 1/4" NPT Gauge adaptor
  • qty(3) SSV20/20-C6F Union adaptor
  • qty(2) SMS20-305mm-B Test hose (12 in)
  • qty(2) SMS20-610mm-B Test hose (24 in)
  • qty(2) SMS20-1524mm-B Test hose (60 in)
  • qty(1) SGV-7/16UNF-04-JIC1/4-F/M Swivel run tee, -4 JIC
  • qty(1) SGV-7/16UNF-06-JIC3/8-F/M Swivel run tee -6 JIC
  • qty(1) SGV-7/16UNF-08-JIC1/2-F/M Swivel run tee -8 JIC
  • qty(1) SQD-04NF-C Female QD fitting 1/4 NPT
