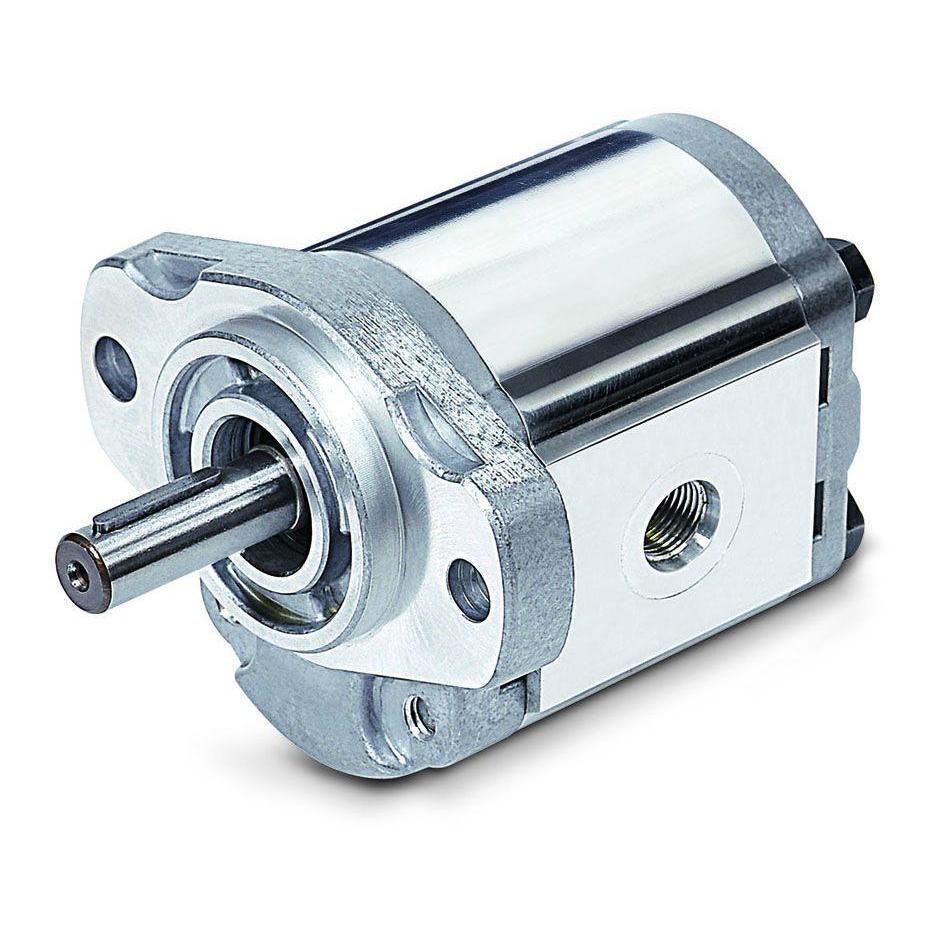

1AG2U01R : Honor Gear Pump, CW Rotation, 1.3cc (0.08in3), 0.62 GPM, 3000psi, 4000 RPM, #8 SAE (1/2") In, #6 SAE (3/8") Out, 1/2" Bore x 1/8" Key, Extended Shaft, SAE AA 2-Bolt Mount
Roll over image to zoom in Click on image to zoom
1AG2U01R : Honor Gear Pump, CW Rotation, 1.3cc (0.08in3), 0.62 GPM, 3000psi, 4000 RPM, #8 SAE (1/2") In, #6 SAE (3/8") Out, 1/2" Bore x 1/8" Key, Extended Shaft, SAE AA 2-Bolt Mount

1AG2U01R : Honor Gear Pump, CW Rotation, 1.3cc (0.08in3), 0.62 GPM, 3000psi, 4000 RPM, #8 SAE (1/2") In, #6 SAE (3/8") Out, 1/2" Bore x 1/8" Key, Extended Shaft, SAE AA 2-Bolt Mount

HonorSKU: 1AG2U01R
6 Weeks
Price:
$167.45

Product Details

Data Sheet Download Datasheet
Usually Ships Within 6 Weeks
Factory Location Corpus Christi, Texas
Material Aluminum body, Aluminum Flange and Cover
Shaft Size 1/2" Bore x 1/8" Key, Extended Shaft
Shaft Type Keyed
Port Location Side Ported
Pressure Rating 3000
Rotation Clockwise
Displacement 1.3
Gpm At 1800 Rpm 0.62
Max Speed 4000 RPM
Inlet Port #8 SAE (1/2")
Outlet Port #6 SAE (3/8")
Mount SAE AA 2-Bolt
Country of Manufacture Taiwan
Height 3.307
Length 3.173
Width 4.016
Weight 2.42

Description

The Honor Gear Pump Group 1 Pumps are defined by the mounting flange and shaft end. Mounting flanges are available in SAE AA 2-bolt, US 4F-17 four-bolt, four-bolt European mounting flanges, and the 'thru bolt' front manifold discharge DC power pack design pump. Shaft ends can be keyed, spline, or tang, depending on your requirements. Displacements are available from 0.04 to 0.82 in3. Side ports are generally standard, but rear ports may be available upon request. If you need a pump in a configuration that isn't avaiable online, please give OneHydraulics a call and we'll be happy to help.
