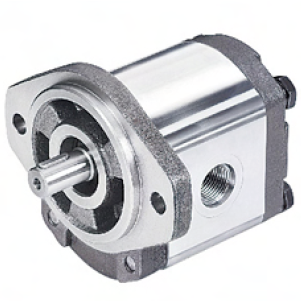

1MM2U07 : Honor Gear Motor, Bidirectional, 7.4cc, 3100psi rated, 2500 RPM, 0.625 (5/8") #10 SAE Inlet and Outlet, 1/2" Bore x 1/8" Keyed Shaft
Roll over image to zoom in Click on image to zoom
1MM2U07 : Honor Gear Motor, Bidirectional, 7.4cc, 3100psi rated, 2500 RPM, 0.625 (5/8") #10 SAE Inlet and Outlet, 1/2" Bore x 1/8" Keyed Shaft

1MM2U07 : Honor Gear Motor, Bidirectional, 7.4cc, 3100psi rated, 2500 RPM, 0.625 (5/8") #10 SAE Inlet and Outlet, 1/2" Bore x 1/8" Keyed Shaft

Save $56.39
HonorSKU: 1MM2U07
6 Weeks
Price:
$212.61 $269.00

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 6 Weeks
Factory Location Texas
Material Aluminum Body Aluminum Flange And Cover
Type Reversible Motor
Shaft Size 1/2" Bore x 1/8" Key
Shaft Type Keyed
Rotation Bidirectional
Displacement 7.4 (cc)
Max Speed 2500 RPM
Inlet Port 0.625 (5/8") #10 SAE
Outlet Port 0.625 (5/8") #10 SAE
Mount SAE AA 2-Bolt
Motor Pressure Rating 3100
Country of Manufacture Taiwan
Height 3.307
Length 5.492
Width 4.015
Weight 4.53

Description

The Honor Gear Pump Group 1 Pumps are defined by the mounting flange and shaft end. Mounting flanges are available in SAE AA 2-bolt, US 4F-17 four-bolt, four-bolt European mounting flanges, and the 'thru bolt' front manifold discharge DC power pack design pump. Shaft ends can be keyed, spline, or tang, depending on your requirements. Displacements are available from 0.04 to 0.82 in3. Side ports are generally standard, but rear ports may be available upon request. If you need a pump in a configuration that isn't avaiable online, please give OneHydraulics a call and we'll be happy to help.
