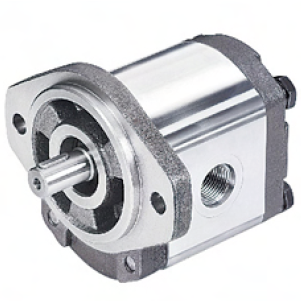

1MM3U06 : Honor Gear Motor, Bidirectional, 6.1cc, 3300psi rated, 4000 RPM, 0.5 (1/2") #8 SAE Inlet and Outlet, 1/2" Bore x 1/8" Key ShortKeyed Shaft
Roll over image to zoom in Click on image to zoom
1MM3U06 : Honor Gear Motor, Bidirectional, 6.1cc, 3300psi rated, 4000 RPM, 0.5 (1/2") #8 SAE Inlet and Outlet, 1/2" Bore x 1/8" Key ShortKeyed Shaft

1MM3U06 : Honor Gear Motor, Bidirectional, 6.1cc, 3300psi rated, 4000 RPM, 0.5 (1/2") #8 SAE Inlet and Outlet, 1/2" Bore x 1/8" Key ShortKeyed Shaft

Save $56.39
HonorSKU: 1MM3U06
6 Weeks
Price:
$212.61 $269.00

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 6 Weeks
Factory Location Texas
Material Aluminum Body Aluminum Flange And Cover
Type Reversible Motor
Shaft Size 1/2" Bore x 1/8" Key Short
Shaft Type Keyed
Rotation Bidirectional
Displacement 6.1 (cc)
Max Speed 4000 RPM
Inlet Port 0.5 (1/2") #8 SAE
Outlet Port 0.5 (1/2") #8 SAE
Mount SAE AA 2-Bolt
Motor Pressure Rating 3300
Country of Manufacture Taiwan
Height 3.307
Length 5.334
Width 4.015
Weight 4.4

Description

The Honor Gear Pump Group 1 Pumps are defined by the mounting flange and shaft end. Mounting flanges are available in SAE AA 2-bolt, US 4F-17 four-bolt, four-bolt European mounting flanges, and the 'thru bolt' front manifold discharge DC power pack design pump. Shaft ends can be keyed, spline, or tang, depending on your requirements. Displacements are available from 0.04 to 0.82 in3. Side ports are generally standard, but rear ports may be available upon request. If you need a pump in a configuration that isn't avaiable online, please give OneHydraulics a call and we'll be happy to help.
