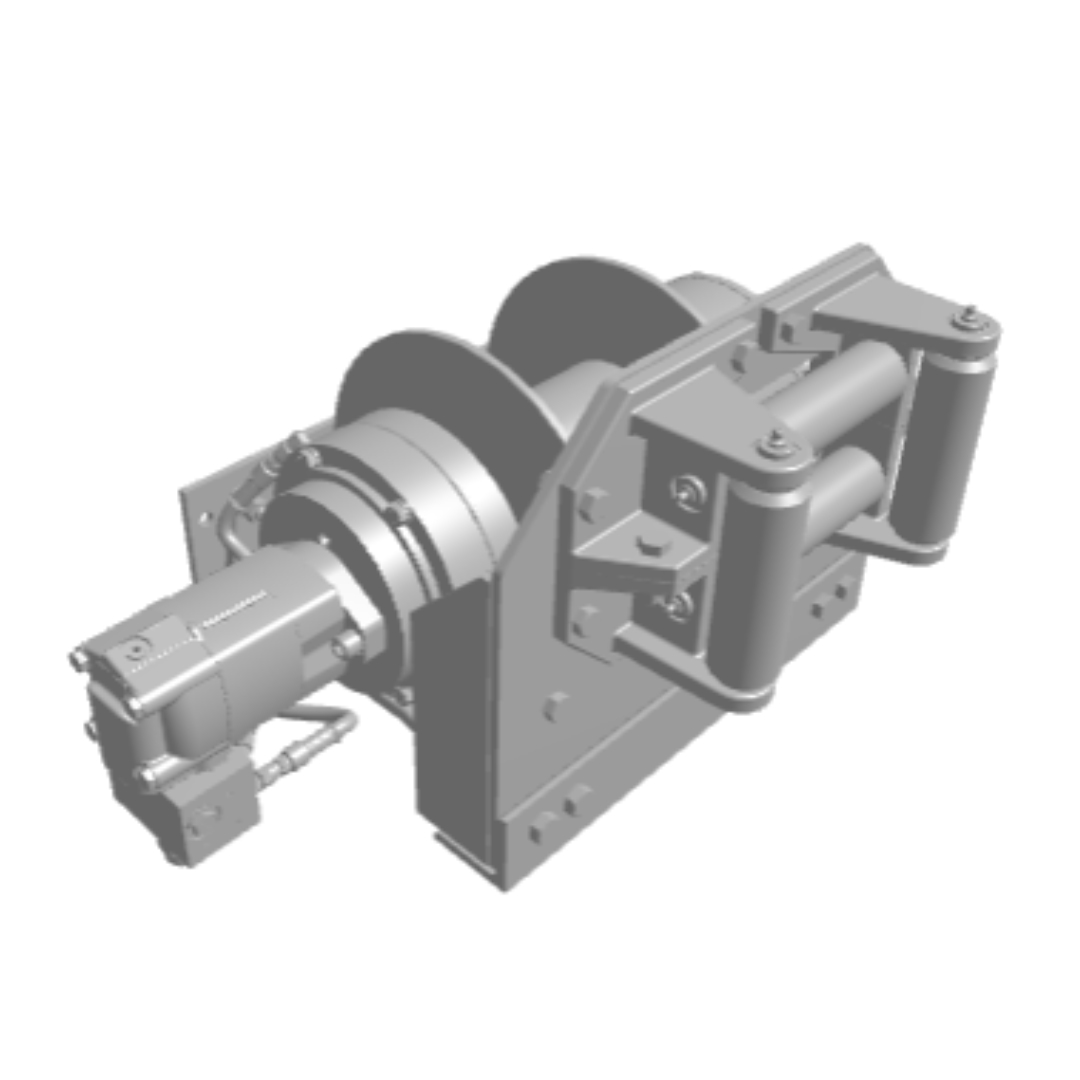

20AFF4L2G : DP Winch, 20,000lb Bare Drum Pull, Base with Fairlead, Air/Hyd Kickout, CCW, Less than 25GPM Motor, 5.5" Barrel x 7.19" Length x 12.75" Flange
Roll over image to zoom in Click on image to zoom
20AFF4L2G : DP Winch, 20,000lb Bare Drum Pull, Base with Fairlead, Air/Hyd Kickout, CCW, Less than 25GPM Motor, 5.5" Barrel x 7.19" Length x 12.75" Flange

20AFF4L2G : DP Winch, 20,000lb Bare Drum Pull, Base with Fairlead, Air/Hyd Kickout, CCW, Less than 25GPM Motor, 5.5" Barrel x 7.19" Length x 12.75" Flange

DP WinchSKU: 20AFF4L2G
6-8 Weeks
Price:
$8,718.88

Product Details

Special Message Base with Fairlead, 25GPM Motor
Data Sheet Download Datasheet
Usually Ships Within 6-8 Weeks
Factory Location Jenks, Oklahoma
Hydraulic Motor Pressure 2600psi
Country of Manufacture United States
Height 12.94
Length 24.19
Width 14.13
Weight 280
Drum Flange Diameter 12.75"
Brake Option N/A
Drum Length 7.19"
Drum Rotation Counterclockwise
Max Bare Drum Line Pull 20,000 lbs
Max Full Drum Line Pull 11,000 lbs
Max Bare Drum Line Speed 37 ft/min
Max Full Drum Line Pull 11,000 lbs
Max Full Drum Line Speed 67 ft/min

Description

With over 75 years of experience and knowledge, TWGÕs planetary winches have the strength to pull you out of trouble. Their planetary winches are commonly used in the Infrastructure, Recovery, Energy & Marine markets custom built for each application. With line pull ratings from 3,000 lbs to 270,000 lbs, they have a winch that can handle your requirements.
