Product Details
| Special Message | Base with Fairlead, 20GPM Motor |
|---|---|
| Data Sheet | |
| Usually Ships Within | 6-8 Weeks |
| Factory Location | Jenks, Oklahoma |

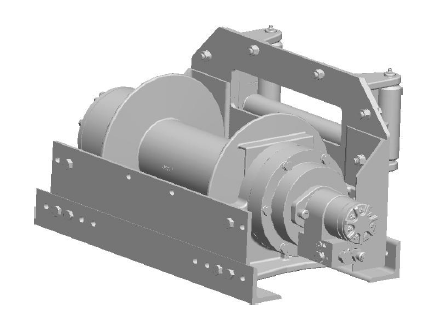

| Solid Model | |
| Service Manual Download | |
| Hydraulic Motor Pressure | 2600psi |
| Country of Manufacture | United States |

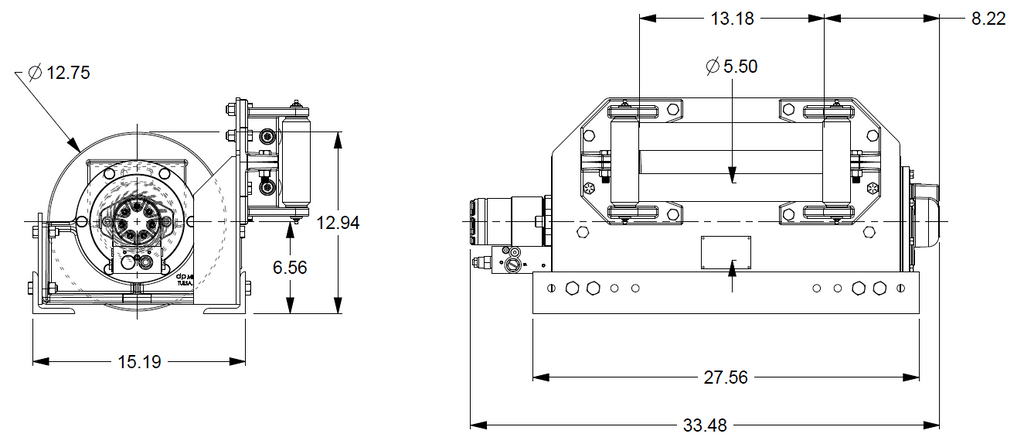

| Height | 12.94 |
| Length | 33.48 |
| Width | 15.19 |
| Weight | 433 |
| Drum Flange Diameter | 12.75" |
| Brake Option | N/A |
| Drum Length | 13.19" |
| Drum Rotation | Counterclockwise |

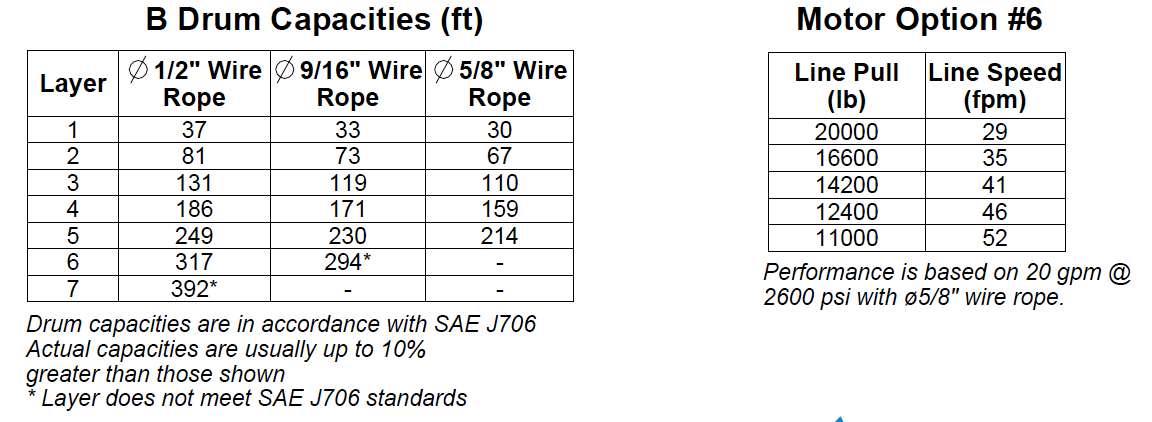

| Max Bare Drum Line Pull | 20,000 lbs |
| Max Full Drum Line Pull | 11,000 lbs |
| Max Bare Drum Line Speed | 29 ft/min |
| Max Full Drum Line Pull | 11,000 lbs |
| Max Full Drum Line Speed | 52 ft/min |
Description
With over 75 years of experience and knowledge, TWG's planetary winches have the strength to pull you out of trouble. Their planetary winches are commonly used in the Infrastructure, Recovery, Energy & Marine markets custom built for each application. With line pull ratings from 3,000 lbs to 270,000 lbs, they have a winch that can handle your requirements.
* 20,000lbs. capacity winch storing 294 ft. of 9/16” dia. rope
* Base with Fairlead (A ‘fairlead’ guides the cable out of the winch, typically a 4-roller design)
* Air/Hyd Kickout (A ‘kickout’ is a clutch mechanism that engages an input shaft to turn your winch. An Air/Hydraulic clutch is one that is pneumatically or hydraulically activated. This feature requires 60-400psi air or hydraulic pressure, 1/4" NPT Port)
* Counter-Clockwise Rotation ( Direction of drum rotation viewed from motor when paying in)
* Low Flow ~ Under 20 GPM
* 5.5" Barrel x 13.19" Length x 12.75" Flange
